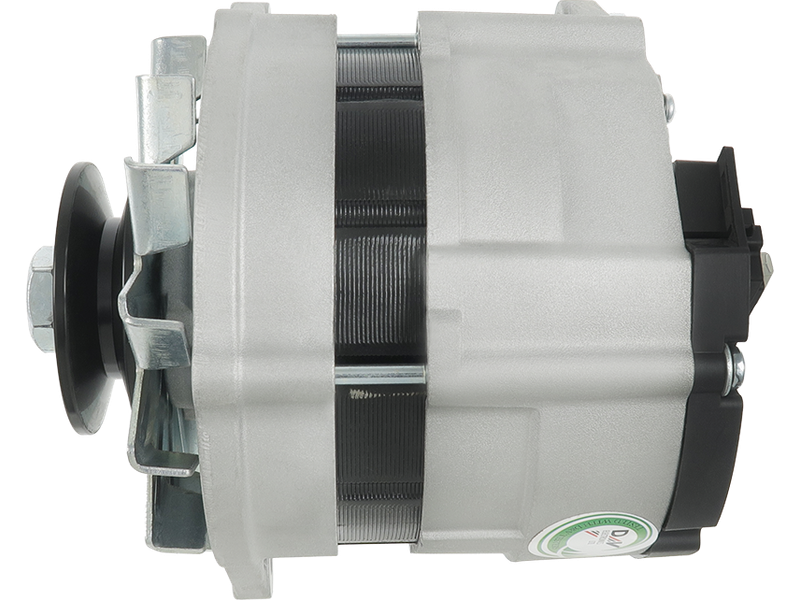

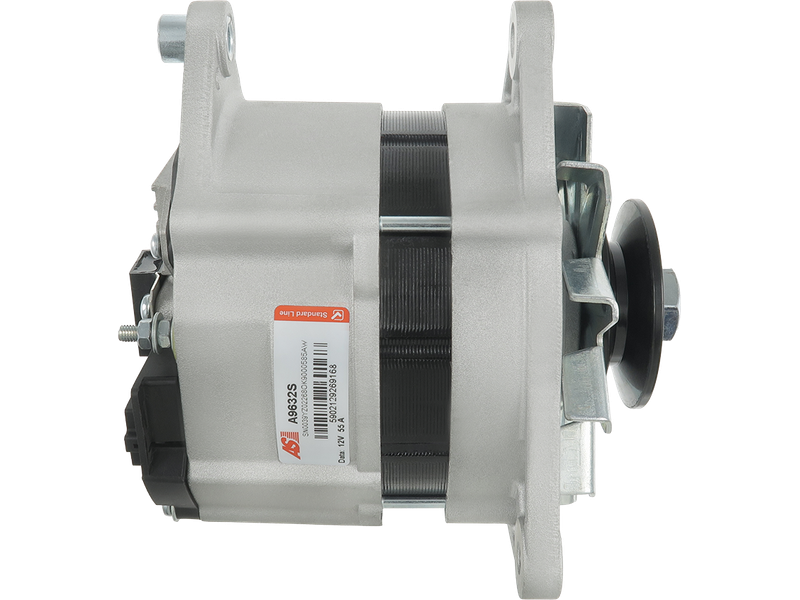

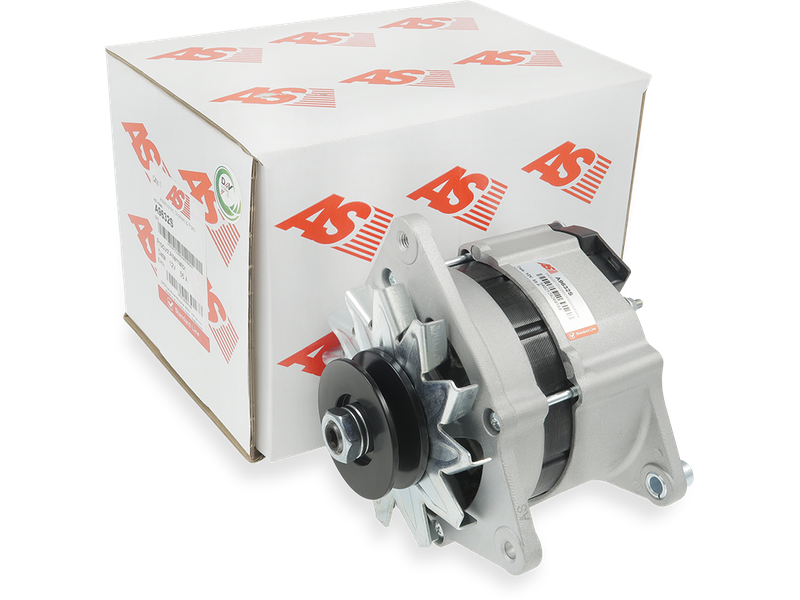

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 415.00 including GST
NZ$ 360.87 excluding GST
or four payments of $103.75
with
Learn More
UOM:
each
Product Code:
A9632S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

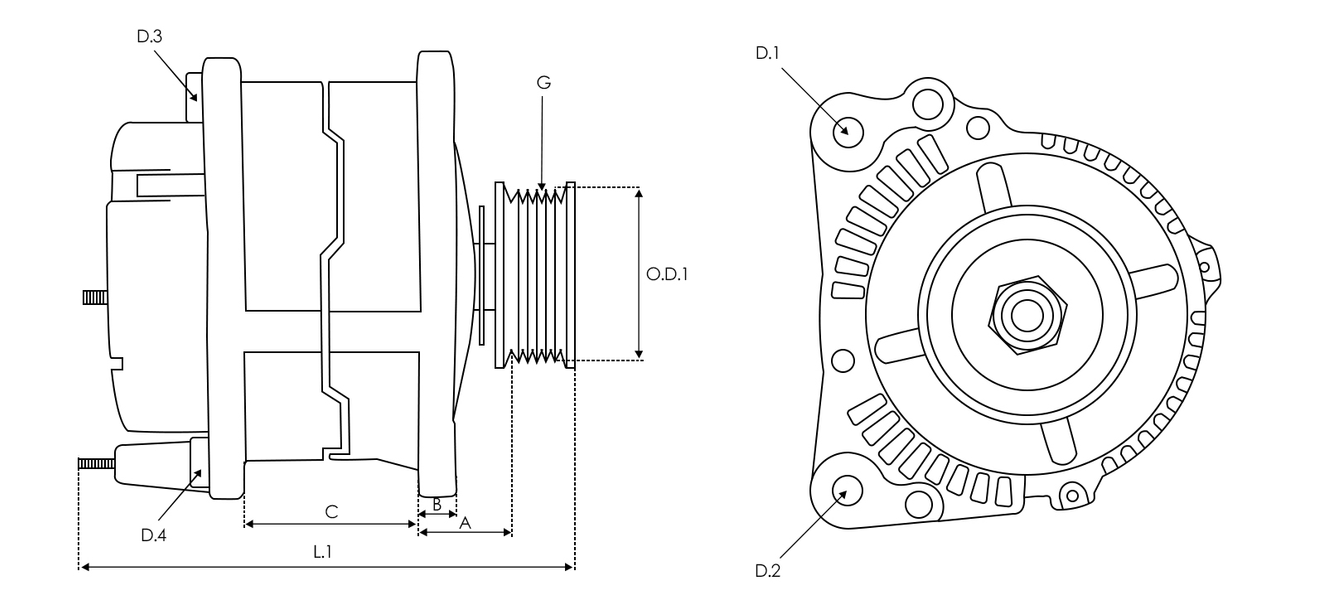

Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 11.00 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.00 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 174.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82.50 mm |
| Plug Code | PL_3200 |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 69.00 mm |
| Pulley Outside Diameter (O.D.2) | 41.00 mm |
| Pulley to Mount Distance (A) | 35.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LANDINI | Mini 4.0 | 1004-40T | - |
Reference Information
| 11.201.143 | ISKRA / LETRIKA |
| 11.201.764 | ISKRA / LETRIKA |
| 231295A1 | CASE |
| 3519406M91 | AGCO |
| 3648444M91 | LANDINI |
| 595.002.055.312 | WAI |
| 595.002.055.313 | WAI |
| 63324924 | MAGNETI MARELLI |
| 72735234 | MAHLE |
| A-16022 | DTS |
| AAK1148 | ISKRA / LETRIKA |
| AAK1388 | ISKRA / LETRIKA |
| AC-CBA0094 | ACAUTO |
| ALT79180 | ELECTROLOG |
| G106203 | BTS TURBO |
| IA0143 | ISKRA / LETRIKA |
| IA0764 | ISKRA / LETRIKA |
| MAN153 | MAGNETI MARELLI |
| MG235 | MAHLE |
| RNL469 | RNL |
| UD104305A | AS-PL |
