Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 287.32 including GST
NZ$ 249.84 excluding GST
or four payments of $71.83
with
Learn More
S0679S
No stock in NZ currently
No stock in NZ currently

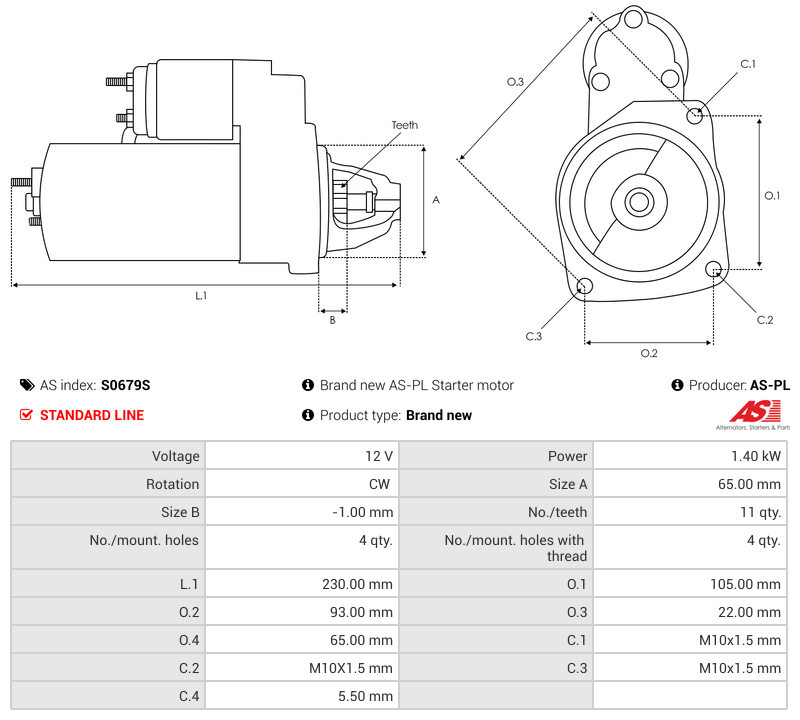

Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 230.00 mm |
| Mount Hole Center - Center (O.1) | 105.00 mm |
| Mount Hole Center - Center (O.2) | 93.00 mm |
| Mount Hole Center - Center (O.3) | 22.00 mm |
| Mount Hole Center - Center (O.4) | 65.00 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10X1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | 5.50 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 4 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | -1.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 65.00 mm |
| Voltage | 12 V |
