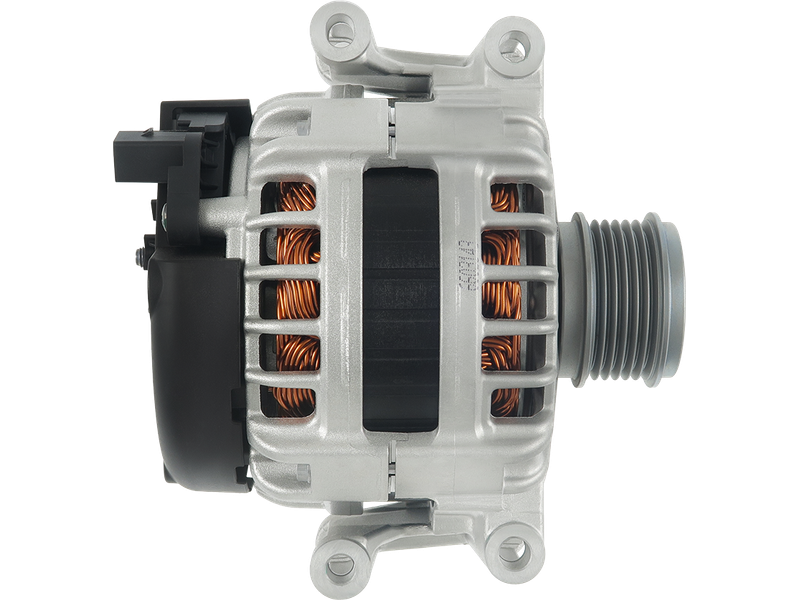

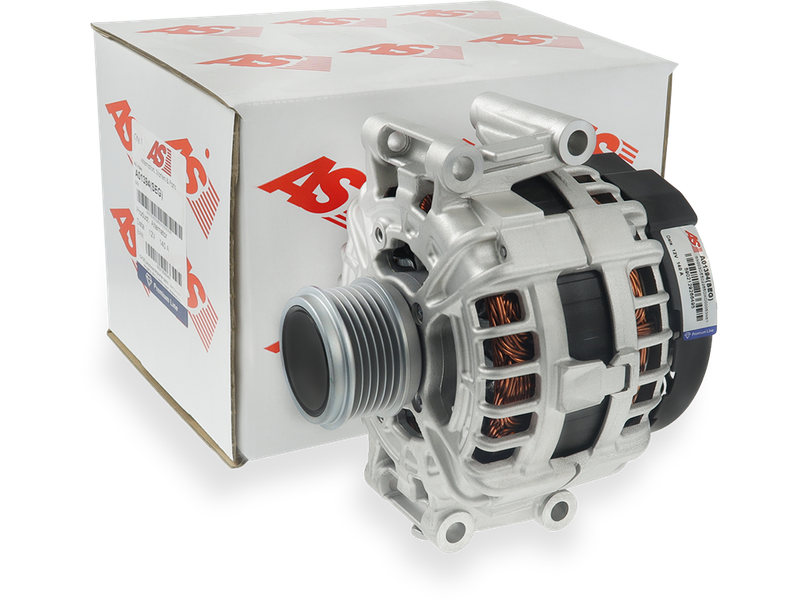

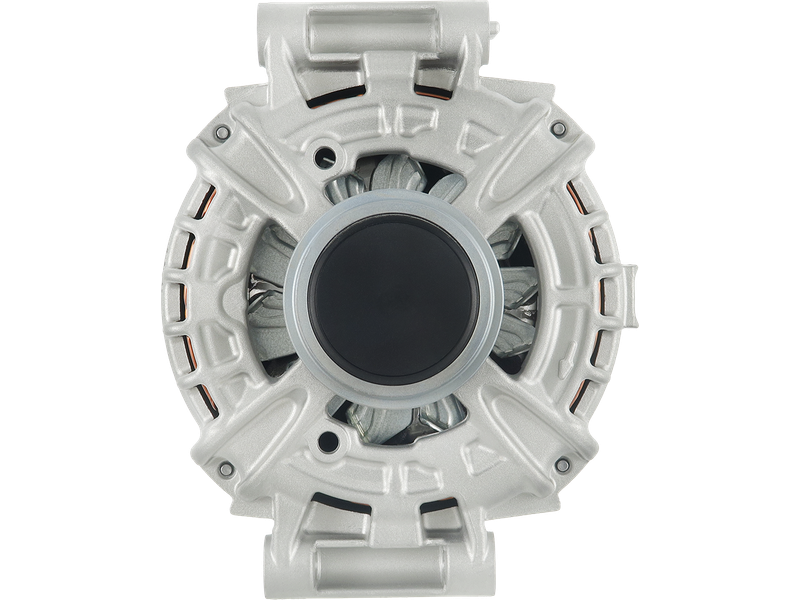

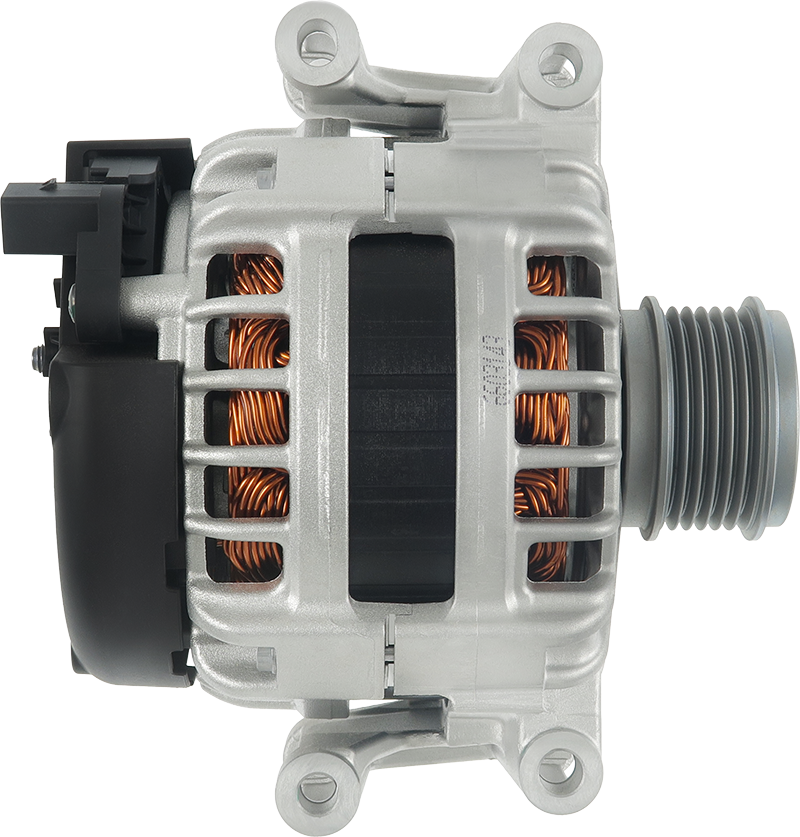

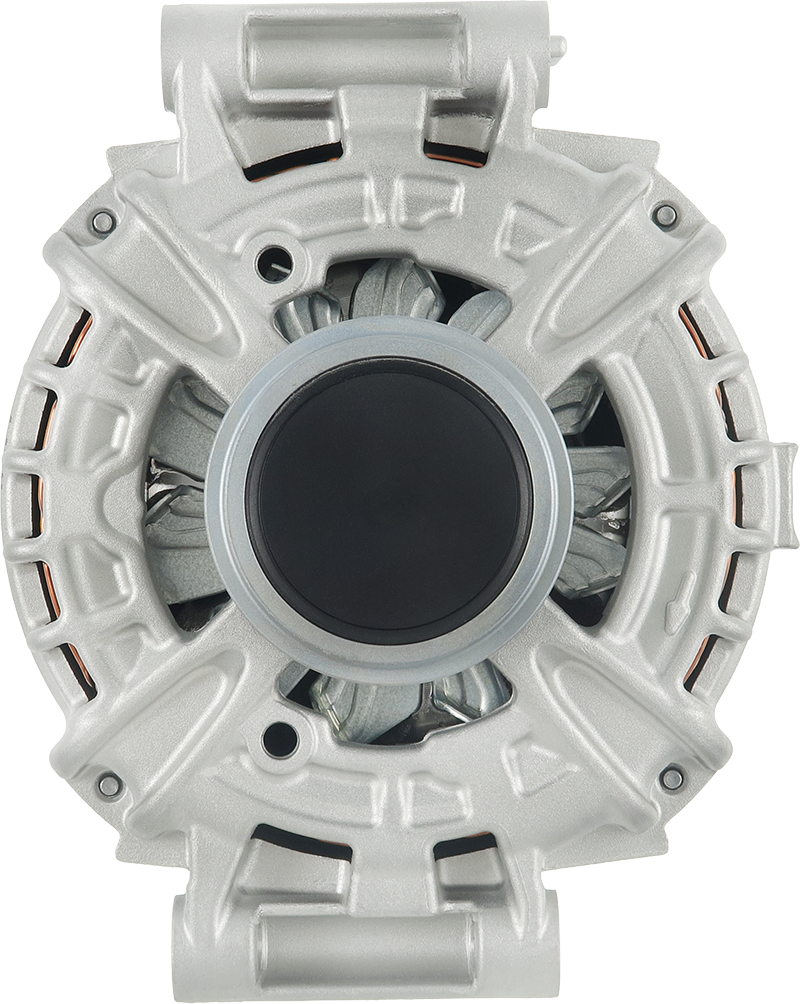

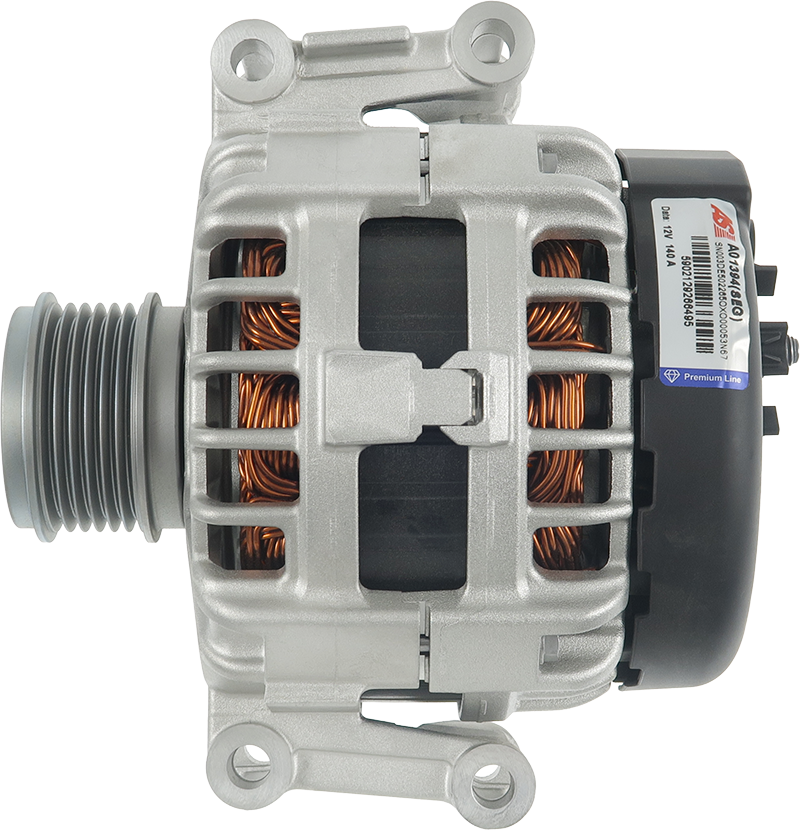

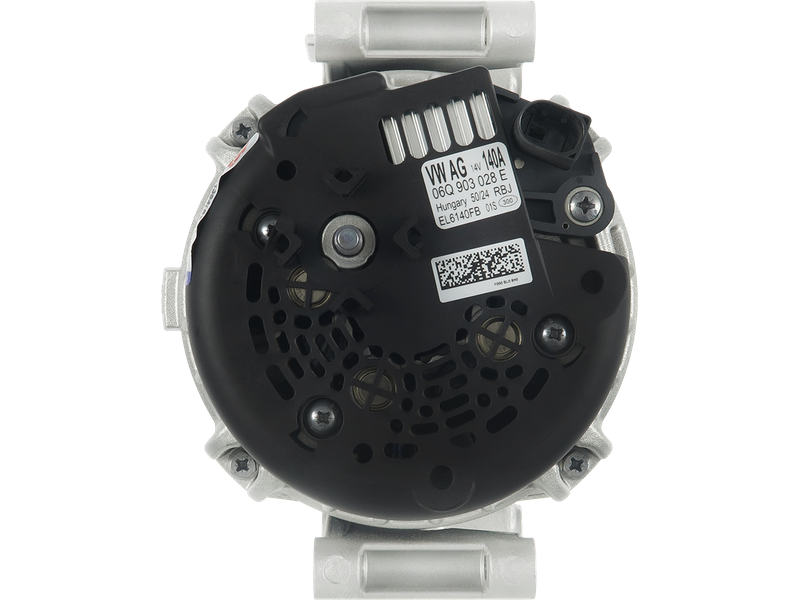

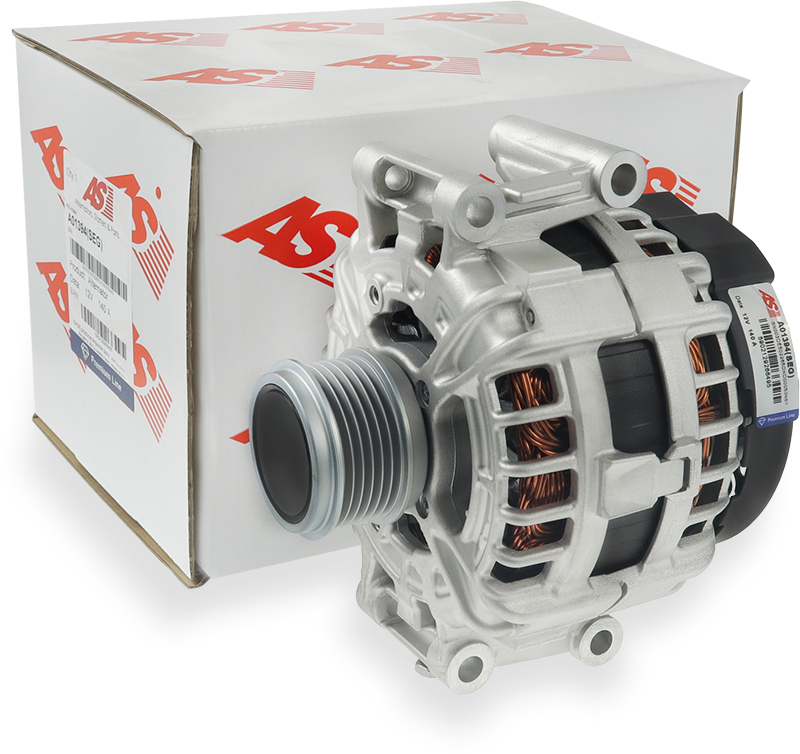

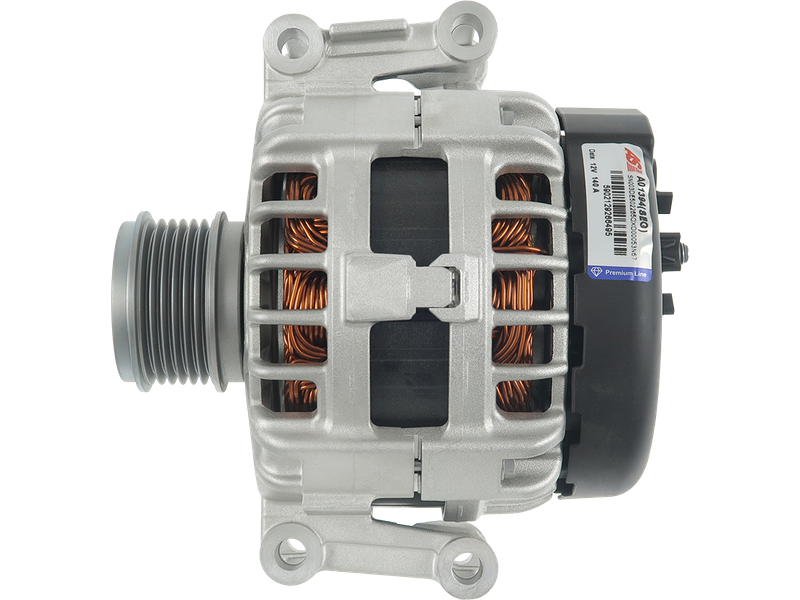

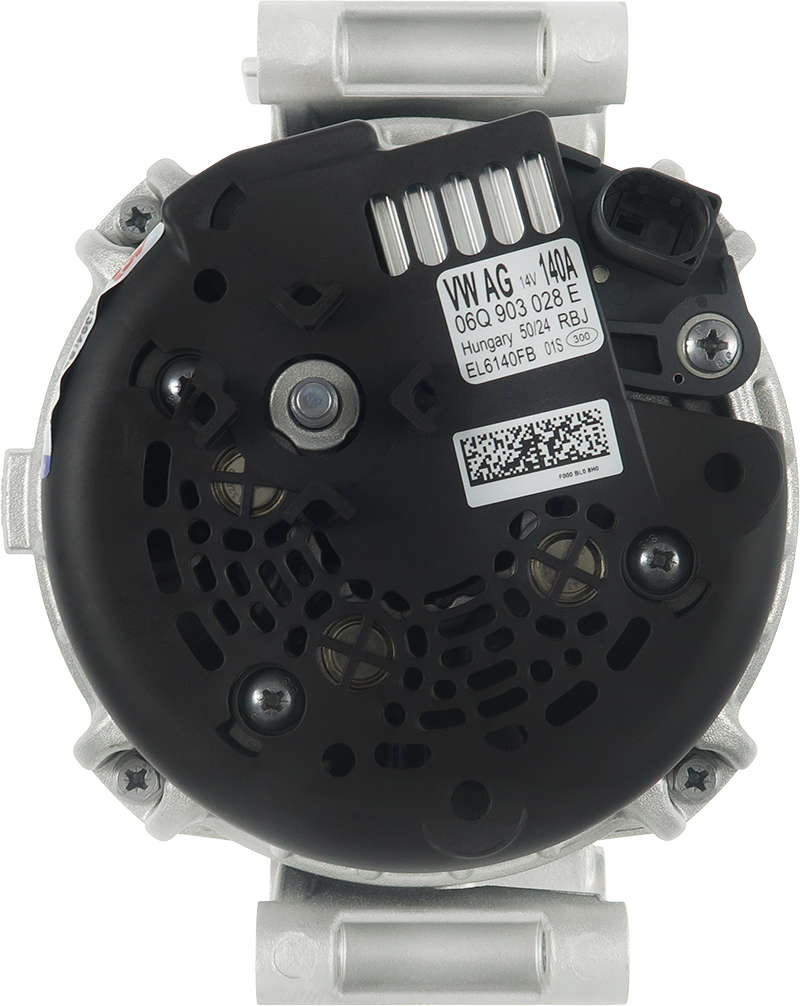

Brand new AS-PL Alternator
PREMIUM LINE
SEG Automotive
BOSCH
Price:
NZ$ 567.41 including GST
NZ$ 493.40 excluding GST
or four payments of $141.85
with
Learn More
Product Code:
A01394(SEG)
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 140 A |
| Diameter (D.1) | 10.00 mm |
| Diameter (D.2) | 10.00 mm |
| Diameter (D.3) | 9.00 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 184.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56.50 mm |
| Pad mount thickness (E.1) | 70.00 mm |
| Pad mount thickness (E.2) | 70.00 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 29.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 Limousine (8YS, 8YM) 40 TFSI | DNNA | 05.2021- |
| AUDI | A3 Limousine (8YS, 8YM) 40 TFSI quattro | DNNA | 07.2021- |
| AUDI | A3 Limousine (8YS, 8YM) S3 quattro | DNFB | 06.2020- |
| AUDI | A3 Limousine (8YS, 8YM) S3 quattro | DNFF | 02.2024- |
| AUDI | A3 Limousine (8YS, 8YM) S3 quattro | DSFA | 06.2020- |
| AUDI | A3 Limousine (8YS, 8YM) S3 quattro | DSFD | 02.2024- |
| AUDI | A3 Sportback (8YA, 8YF) 40 TFSI | DNNA | 05.2021- |
| AUDI | A3 Sportback (8YA, 8YF) 40 TFSI quattro | DNNA | 07.2021- |
| AUDI | A3 Sportback (8YA, 8YF) S3 quattro | DNFB | 06.2020- |
| AUDI | A3 Sportback (8YA, 8YF) S3 quattro | DNFF | 02.2024- |
| AUDI | A3 Sportback (8YA, 8YF) S3 quattro | DSFD | 02.2024- |
| CUPRA | ATECA (KH7, KHP, KBP) 2.0 TSI 4Drive | DNFC | 09.2018- |
| CUPRA | FORMENTOR (KM7, KMP) 2.0 TSI 4Drive | DNFB | 07.2020- |
| CUPRA | FORMENTOR (KM7, KMP) 2.0 VZ 4Drive | DNFF | 08.2024- |
| CUPRA | LEON (KL1, KU1, KUG) 2.0 TSI | DNFC | 06.2021- |
| CUPRA | LEON (KL1, KU1, KUG) 2.0 TSI | DNNA | 09.2022- |
| CUPRA | LEON Sportstourer (KL8, KU8, KUD) 2.0 TSI | DNFC | 06.2021- |
| CUPRA | LEON Sportstourer (KL8, KU8, KUD) 2.0 TSI | DNNA | 09.2022- |
| CUPRA | LEON Sportstourer (KL8, KU8, KUD) 2.0 TSI 4Drive | DNFB | 06.2021- |
| CUPRA | LEON Sportstourer (KL8, KU8, KUD) 2.0 VZ 4Drive | DNFF | 07.2024- |
| SEAT | LEON (KL1, KLG) 2.0 TFSI | DNNA | 03.2021- |
| SEAT | LEON Sportstourer (KL8, KLD) 2.0 TFSI | DNNA | 03.2021- |
| VW | GOLF VIII (CD1, DA1) 2.0 GTI Clubsport | DNFC | 10.2020- |
| VW | GOLF VIII (CD1, DA1) 2.0 TSI R 4motion | DNFF | 07.2022- |
| VW | GOLF VIII Variant (CG5, DB5) 2.0 TSI R 4motion | DNFF | 06.2024- |
| VW | T-ROC (A11, D11) 2.0 R 4motion | DNFC | 09.2019- |
Reference Information
| 034270 | DA SILVA |
| 06Q903028E | VW |
| 2010181BOE | REAL |
| 2010B18.1 | SANDO |
| 2117041402 | DRI |
| 2740604 | VALEO |
| 28-8870 | ELSTOCK |
| 305.358.140.280 | WAI |
| 557032RIS | KUHNER |
| ABOB18 | AUTOTEAM |
| AL04772 | TMI |
| ALT12B180 | SIOM |
| CAL10B18GS | CASCO |
| F000BL08HA | BOSCH |
| F000BL08HA | BOSCH |
| LRA04744 | LUCAS |
| LRA4744 | LUCAS |
| TG14FB148 | VALEO |
| UD05976(SEG)A | AS-PL |
