Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 431.46 including GST
NZ$ 375.18 excluding GST
or four payments of $107.87
with
Learn More
Product Code:
A9617S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

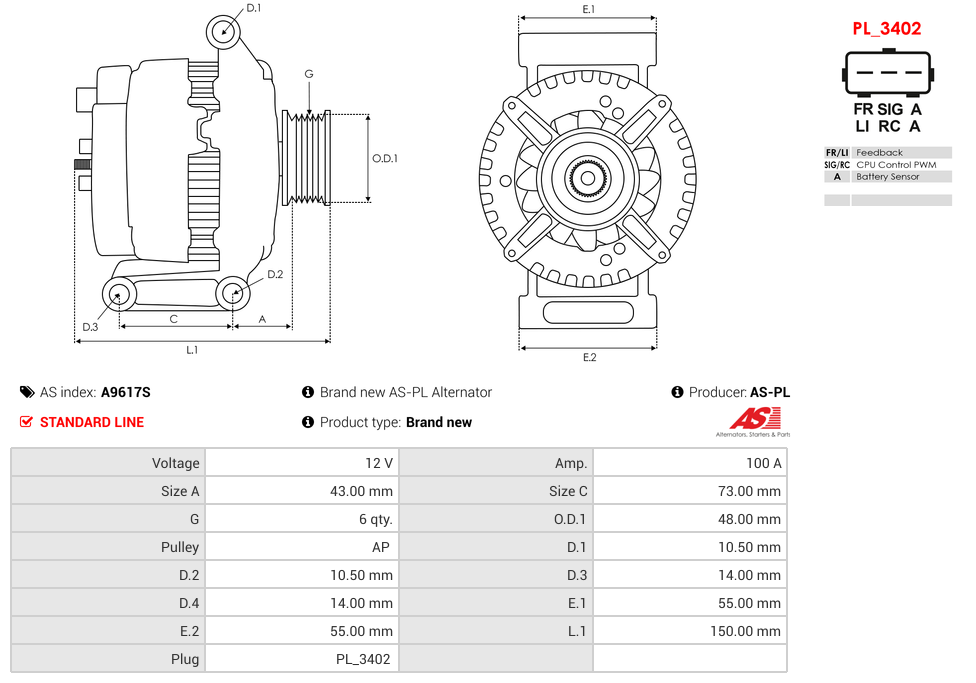

Specifications
| Amp | 100 A |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 14.00 mm |
| Diameter (D.4) | 14.00 mm |
| Length (L.1) | 150.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 73.00 mm |
| Pad mount thickness (E.1) | 55.00 mm |
| Pad mount thickness (E.2) | 55.00 mm |
| Plug Code | PL_3405 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 48.00 mm |
| Pulley to Mount Distance (A) | 43.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | FIESTA V (JH_, JD_) 1.3 | A9JA | 11.2001-06.2008 |
| FORD | FIESTA V (JH_, JD_) 1.3 | A9JB | 11.2001-06.2008 |
| FORD | KA (RB_) 1.3 i ROCAM | A9A | 08.2002-11.2008 |
| FORD | KA (RB_) 1.3 i ROCAM | A9B | 08.2002-11.2008 |
| FORD | STREET KA (RL2) 1.6 | CDRA | 05.2003-07.2005 |
| FORD | STREET KA (RL2) 1.6 | CDRB | 05.2003-07.2005 |
Reference Information
| 20-150-01011 | VISTEON |
| 20-150-01032 | VISTEON |
| 22556N | WAI |
| 3123346 | HENKEL PARTS |
| 595.577.100.020 | WAI |
| A134.527 | WAI |
| ALF2034 | KRAUF |
| UD103719A | AS-PL |
| XS61-10300-BD | FORD |
| XS61-BD | FORD |
