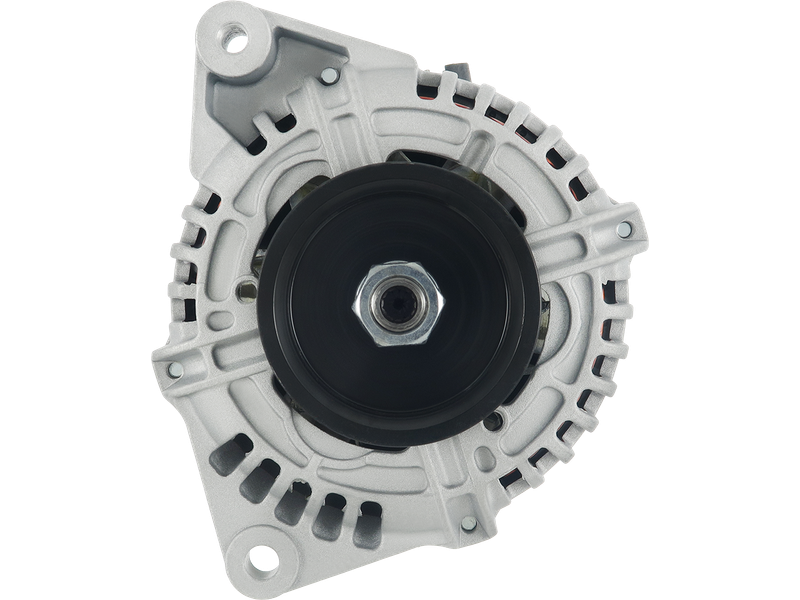

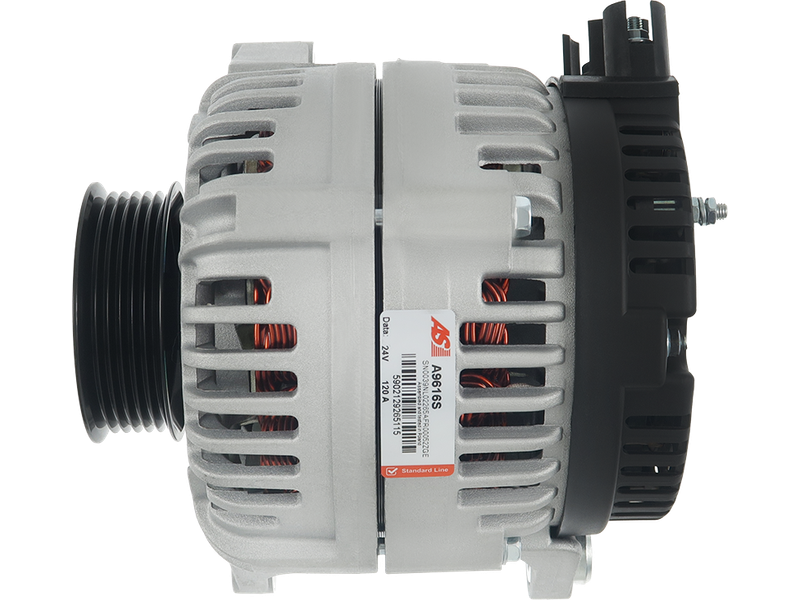

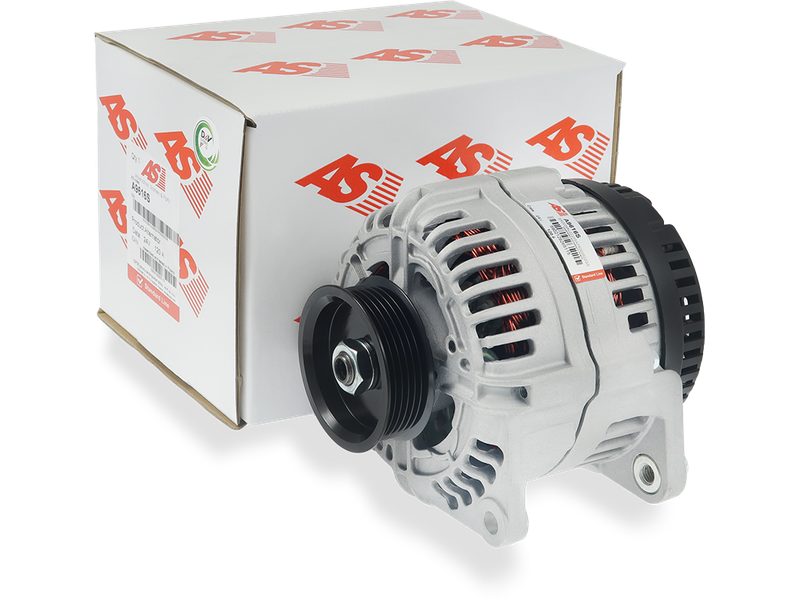

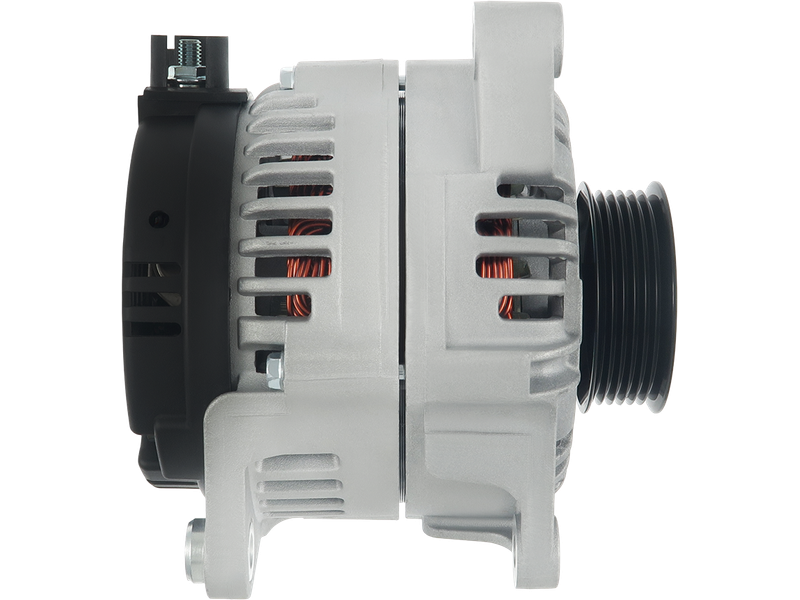

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 614.32 including GST
NZ$ 534.19 excluding GST
or four payments of $153.58
with
Learn More
Product Code:
A9616S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

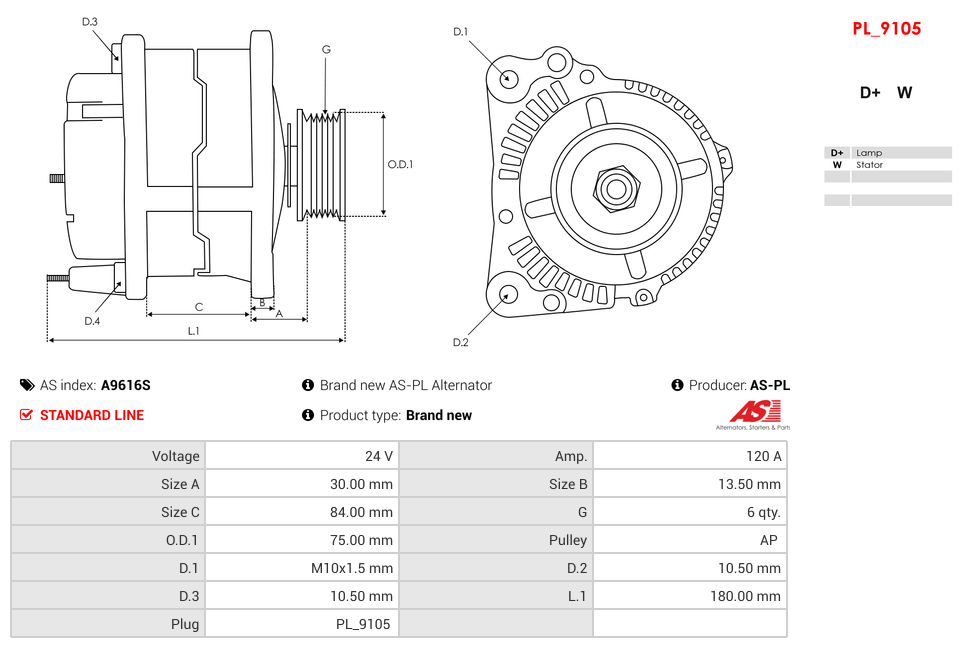

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | M10x1.5 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 180.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 84.00 mm |
| Plug Code | PL_9105 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 75.00 mm |
| Pulley to Mount Distance (A) | 30.00 mm |
| Pulley Type | Solid |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GAZ | GAZON NEXT 150 HP | YAMZ-53441 | 10.2014- |
| GAZ | GAZON NEXT 150 HP | YAMZ-53442 | 10.2014- |
| GAZ | GAZON NEXT 150 HP | YAMZ-53443 | 10.2014- |
| LIAZ | 4292 4.4 | YAMZ-534 | 01.2024- |
| PAZ | 4234 4.4 | YAMZ-5342 | 01.2014- |
| URAL | URAL NEXT 4×4 | YAMZ-536 | 01.2015- |
| URAL | URAL NEXT 6×6 | YAMZ-536 | 01.2015- |
Reference Information
| 032640 | DA SILVA |
| 11.204.485 | ISKRA / LETRIKA |
| 366.504.120.310 | WAI |
| 53673701010 | AUTODIZEL |
| 556037RIM | KUHNER |
| 72423785 | MAHLE |
| A145.974 | WAI |
| AAN5861 | ISKRA / LETRIKA |
| ALT79655 | ELECTROLOG |
| AVI147H3003 | PRESTOLITE |
| IA1593 | ISKRA / LETRIKA |
| MG772 | MAHLE |
| UD104283A | AS-PL |
| WG2043979 | WILMINK GROUP |
