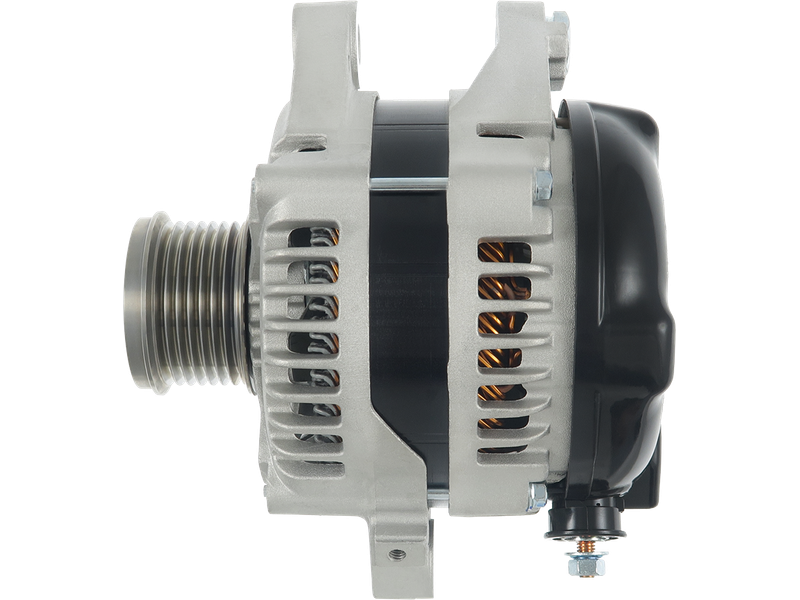

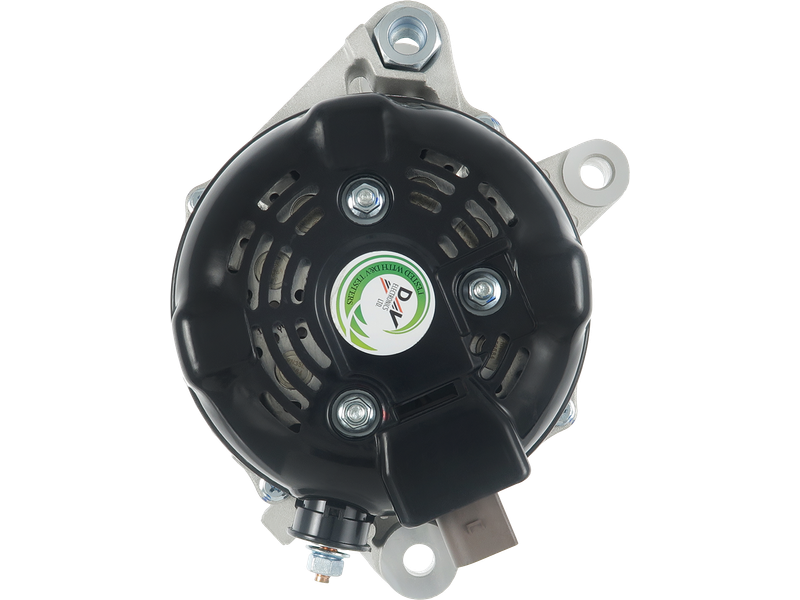

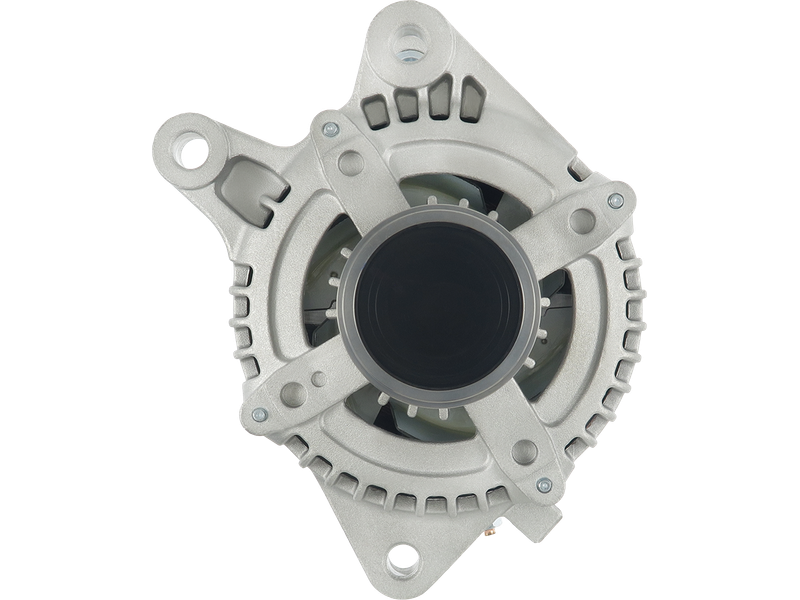

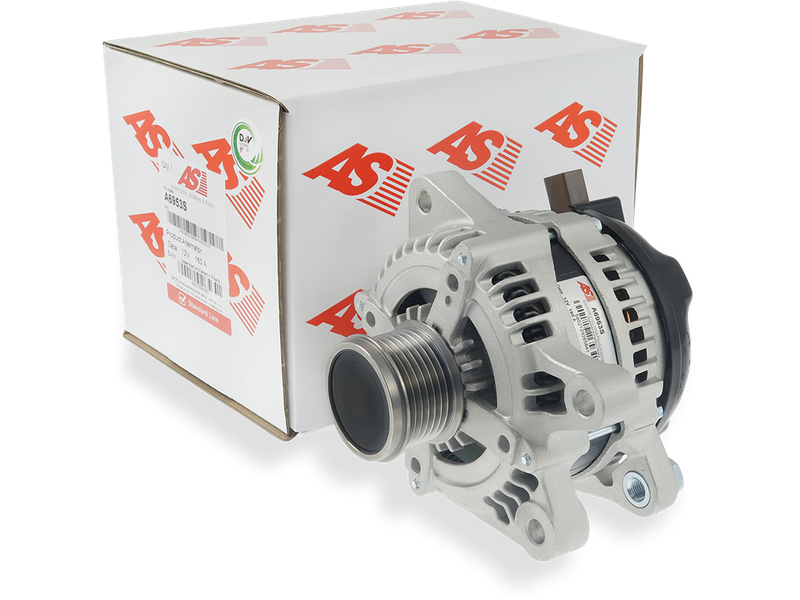

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 629.12 including GST
NZ$ 547.06 excluding GST
or four payments of $157.28
with
Learn More
Product Code:
A6953S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 160 A |
| Bottom Mounting Foot Width (B) | 20.00 mm |
| Diameter (D.1) | 11.00 mm |
| Diameter (D.2) | 11.00 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 165.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 43.00 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 52.50 mm |
| Pulley to Mount Distance (A) | 38.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) 2.0 (TRH200) | 1TR-FE | 08.2004- |
| TOYOTA | HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) 2.7 (TRH223_, TRH223R) | 2TR-FE | 12.2013- |
| TOYOTA | HIACE IV Bus (__H1_, __H2_) 2.7 4WD (TRH228B, TRH229) | 2TR-FE | 01.2005-05.2019 |
| TOYOTA | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.0 (TRH200) | 1TR-FE | 08.2004-02.2019 |
| TOYOTA | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.0 (TRH200) | 1TR-FE | 08.2013- |
| TOYOTA | HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.7 VVTi (TRH201, TRH221, TRH223B) | 2TR-FE | 01.2005- |
Reference Information
| 104211-8970 | DENSO |
| 104211-8971 | DENSO |
| 27060-75500 | TOYOTA |
| UD104602A | AS-PL |
