Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 583.81 including GST
NZ$ 507.66 excluding GST
or four payments of $145.95
with
Learn More
UOM:
each
Product Code:
A9603S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

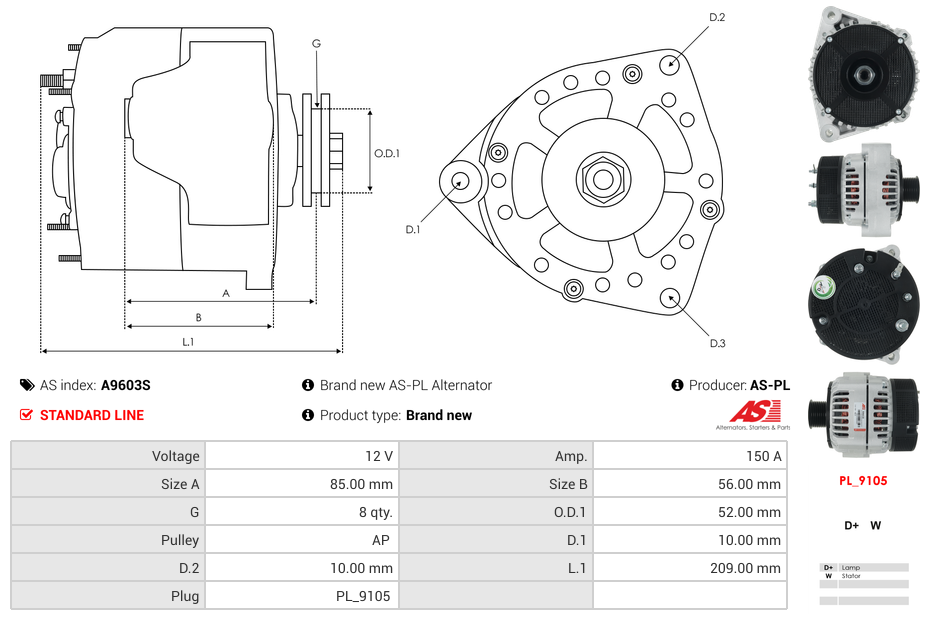

Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 56.00 mm |
| Diameter (D.1) | 10.00 mm |
| Diameter (D.2) | 10.00 mm |
| Length (L.1) | 209.00 mm |
| Plug Code | PL_9105 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.2) | 52.00 mm |
| Pulley to Mount Distance (A) | 85.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | A400 4.5 | 4045 | 01.2010-12.2012 |
| JOHN DEERE | ENGINE 4.5 | 4045 | 01.2006-12.2013 |
| JOHN DEERE | ENGINE 4.5 | 4045 | 01.2006-12.2013 |
Reference Information
| 032884 | DA SILVA |
| 11.204.125 | ISKRA / LETRIKA |
| 11.204.911 | ISKRA / LETRIKA |
| 173-55104 | DIXIE |
| 635.562.150.310 | WAI |
| 72741814 | MAHLE |
| AAN5971 | ISKRA / LETRIKA |
| AAN8135 | ISKRA / LETRIKA |
| ALT79770 | ELECTROLOG |
| IA1476 | ISKRA / LETRIKA |
| MG735 | MAHLE |
| RE545530 | JOHN DEERE |
| UD104148A | AS-PL |
| WG2043955 | WILMINK GROUP |
