Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 847.14 including GST
NZ$ 736.64 excluding GST
or four payments of $211.79
with
Learn More
UOM:
each
Product Code:
A3876S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

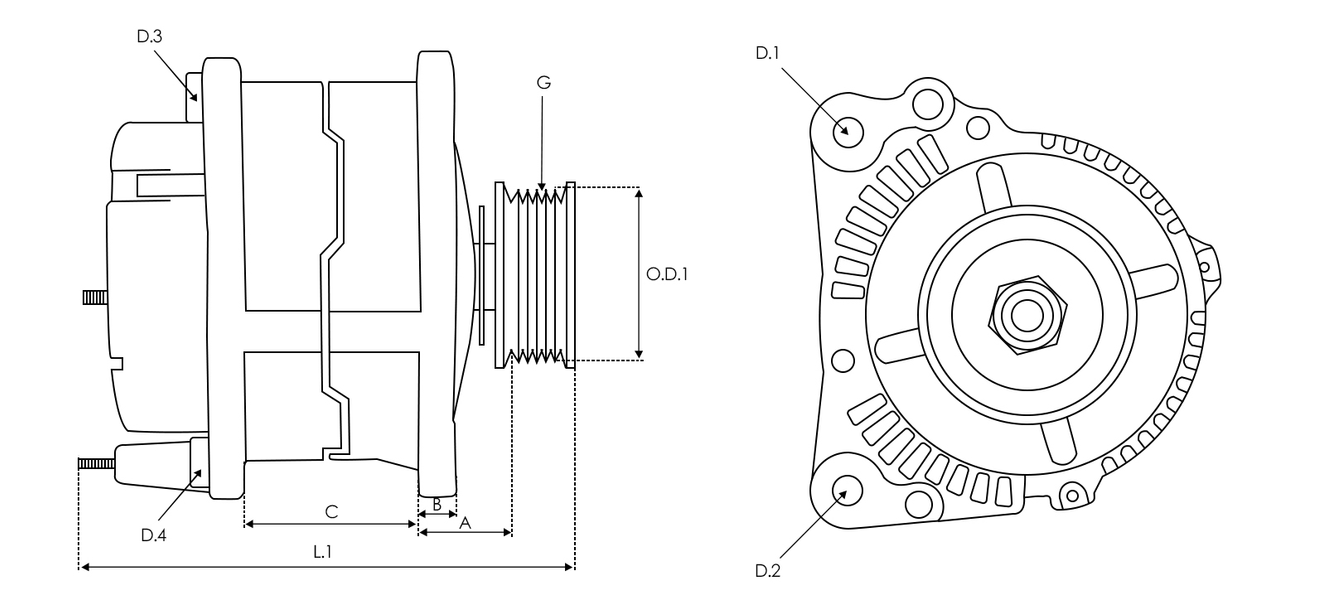

Specifications
| Amp | 230 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 198.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.00 mm |
| Plug Code | PL_2801 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.2) | 48.50 mm |
| Pulley to Mount Distance (A) | 31.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | GRAND SCÉNIC IV (R9_) 1.7 Blue dCi 120 (R9A7, R9A8) | R9N400 | 08.2018-03.2023 |
| RENAULT | GRAND SCÉNIC IV (R9_) 1.7 Blue dCi 120 (R9A7, R9A8) | R9N401 | 08.2018-03.2023 |
| RENAULT | GRAND SCÉNIC IV (R9_) 1.7 Blue dCi 150 (R9A7, R9A8) | R9N401 | 08.2018-03.2023 |
| RENAULT | KADJAR (HA_, HL_) 1.7 Blue dCi 150 4WD (HLA7) | R9N401 | 08.2018- |
| RENAULT | KADJAR (HA_, HL_) 1.7 Blue dCi 150 (HLA7) | R9N401 | 08.2018- |
| RENAULT | KOLEOS II (HC_) 1.7 BLUE dCi 150 (HCA7) | R9N401 | 06.2019- |
| RENAULT | SCÉNIC IV (J9_) 1.7 Blue dCi 120 (J9A7, J9A8) | R9N400 | 08.2018-07.2022 |
| RENAULT | SCÉNIC IV (J9_) 1.7 Blue dCi 120 (J9A7, J9A8) | R9N401 | 08.2018-07.2022 |
| RENAULT | SCÉNIC IV (J9_) 1.7 Blue dCi 150 (J9A7, J9A8) | R9N400 | 08.2018-07.2022 |
| RENAULT | SCÉNIC IV (J9_) 1.7 Blue dCi 150 (J9A7, J9A8) | R9N401 | 08.2018-07.2022 |
| RENAULT | TALISMAN Grandtour (KP_) 1.7 Blue dCi 120 (KPA7) | R9N401 | 09.2018-03.2022 |
| RENAULT | TALISMAN Grandtour (KP_) 1.7 Blue dCi 150 (KPA8) | R9N401 | 09.2018-03.2022 |
| RENAULT | TALISMAN (LP_) 1.7 Blue dCi 120 (LPA7) | R9N401 | 09.2018-03.2022 |
| RENAULT | TALISMAN (LP_) 1.7 Blue dCi 150 (LPA8) | R9N401 | 09.2018-03.2022 |
Reference Information
| 031741 | DA SILVA |
| 2015B15.1 | SANDO |
| 2015B32.1 | SANDO |
| 2017923BOE | REAL |
| 2017951BOE | REAL |
| 22120N | WAI |
| 2303802302 | DRI |
| 23100-1847R | NISSAN |
| 28-8840 | ELSTOCK |
| 443337 | VALEO |
| 556673RIR | KUHNER |
| 575.989.230.000 | WAI |
| 575.989.230.346 | WAI |
| 575.989.230.500 | WAI |
| 57816 | EAI |
| 816ST75 | STARTCAR |
| A12VA1272 | SIDAT |
| A152.333 | WAI |
| AL04730 | TMI |
| ALT17B150 | SIOM |
| ALT17B320 | SIOM |
| ALV4599 | KRAUF |
| CAL15B15GS | CASCO |
| CAL15B32GS | CASCO |
| FG23S082 | VALEO |
| FGN23S082 | VALEO |
| LRA04714 | LUCAS |
| LRA4714 | LUCAS |
| TR8277 | SNRA |
| UD102498A | AS-PL |
