Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 266.46 including GST
NZ$ 231.70 excluding GST
or four payments of $66.62
with
Learn More
UOM:
each
Product Code:
S5610S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

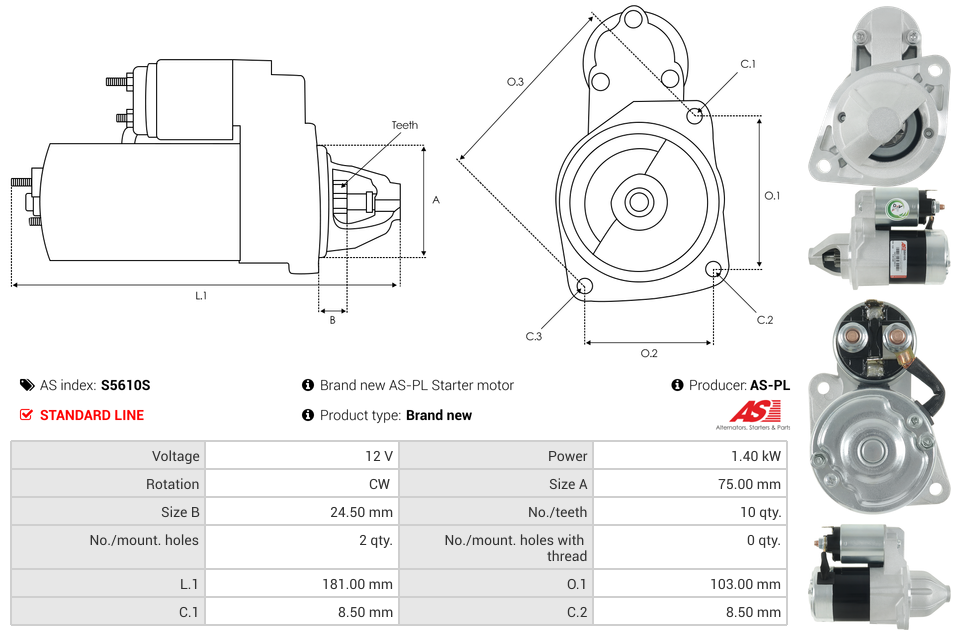

Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 181.00 mm |
| Mount Hole Center - Center (O.1) | 103.00 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 24.50 mm |
| Rotation | CW |
| Spigot Diameter (A) | 75.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAC | J2 1.0 (HFC7100WF) | HFC3GB4.C | 04.2013-02.2015 |
| JAC | J3 Saloon 1.3 VVT (HFC7130) | HFC4EB1 | 04.2009-04.2016 |
| JAC | J7 1.5 T | 03.2021- | |
| JAC | J7 1.5 T | 09.2020- | |
| JAC | REFINE S2 1.5 Flex | HFC4GB2.3C | 08.2017-11.2020 |
| JAC | REFINE S3 1.5 | HFC4GB2.3D | 08.2014-12.2018 |
| JAC | REFINE S3 1.5 | 07.2019- | |
| MOSKVICH | 3 1.5 | HFC4GB24D | 01.2023- |
