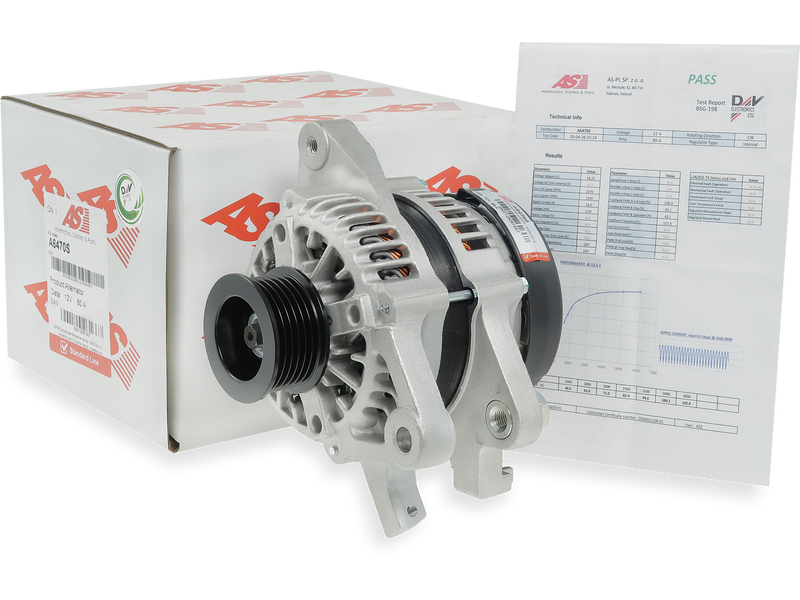

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 511.53 including GST
NZ$ 444.81 excluding GST
or four payments of $127.88
with
Learn More
UOM:
each
Product Code:
A6470S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 19.00 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11.00 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 156.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 36.50 mm |
| Plug Code | PL_4000 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 52.50 mm |
| Pulley to Mount Distance (A) | 28.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | AURIS (_E15_) 1.33 Dual-VVTi (NRE150_, NRE150R) | 1NR-FE | 01.2010-09.2012 |
| TOYOTA | AURIS (_E15_) 1.33 Dual-VVTi (NRE150_, NRE150R) | 1NR-FE | 05.2009-09.2012 |
| TOYOTA | COROLLA Saloon (_E15_) 1.3 (NRE150) | 1NR-FE | 12.2008-07.2014 |
| TOYOTA | URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110) | 1NR-FE | 04.2009-03.2016 |
| TOYOTA | URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110R) | 1NR-FE | 01.2009-03.2016 |
| TOYOTA | YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) | 1NR-FE | 07.2010-05.2011 |
| TOYOTA | YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) | 1NR-FE | 11.2008-12.2011 |
Reference Information
| 031335 | DA SILVA |
| 104210-8280 | DENSO |
| 104210-8281 | DENSO |
| 104210-8290 | DENSO |
| 104210-8291 | DENSO |
| 104210-9260 | DENSO |
| 104210-9261 | DENSO |
| 10444986 | ALANKO |
| 114036 | FARCOM |
| 12061159 | EUROTEC |
| 195.969.080.050 | WAI |
| 195.969.080.260 | WAI |
| 195.969.080.440 | WAI |
| 195.969.080.460 | WAI |
| 20040304OV | ITAB AUTOMOTIVE |
| 20-0744 | AIRSTAL |
| 20132403OE | REAL |
| 2040304.1 | SANDO |
| 21889N | WAI |
| 235314802 | DRI |
| 27060-0Y050 | TOYOTA |
| 27060-0Y070 | TOYOTA |
| 27060-47010 | TOYOTA |
| 28-7548 | ELSTOCK |
| 3114547 | HENKEL PARTS |
| 40015 | CEVAM |
| 446048 | LOGISTIK |
| 4830026 | NK |
| 553829RID | KUHNER |
| 57727 | EAI |
| 727ST75 | STARTCAR |
| 8620256 | KAMOKA |
| 89215408 | POWERMAX |
| 8EL012240-681 | HELLA |
| 9090838 | FRIESEN |
| A131.350 | WAI |
| A148.185 | WAI |
| AAL1900 | APEC |
| ADN304 | AUTOTEAM |
| AEK3410 | AUTOELECTRO |
| AL03500 | TMI |
| ALN1017 | KRAUF |
| ALT30501 | WOODAUTO |
| ALT423040 | SIOM |
| ALT6380 | ELECTROLOG |
| ALT6724 | ELECTROLOG |
| ANM98460 | ANDEL |
| CAL40304GS | CASCO |
| DAN1042 | DENSO |
| DENDAN1042 | WOODAUTO |
| DRA1136 | DELCO |
| EAL-9074 | KAVO PARTS |
| G101805 | BTS TURBO |
| G103596 | BTS TURBO |
| IR5452 | PROTECH |
| J5112155 | HERTH+BUSS |
| J5112188 | HERTH+BUSS |
| LRA03938 | LUCAS |
| LRA3938 | LUCAS |
| NPANAL1900 | NAPA |
| STX110236R | STARDAX |
| TO8114 | SNRA |
| UD103510A | AS-PL |
| UD103511A | AS-PL |
| UD103514A | AS-PL |
| WAL00840 | WALKER |
| WG1916735 | WILMINK GROUP |
