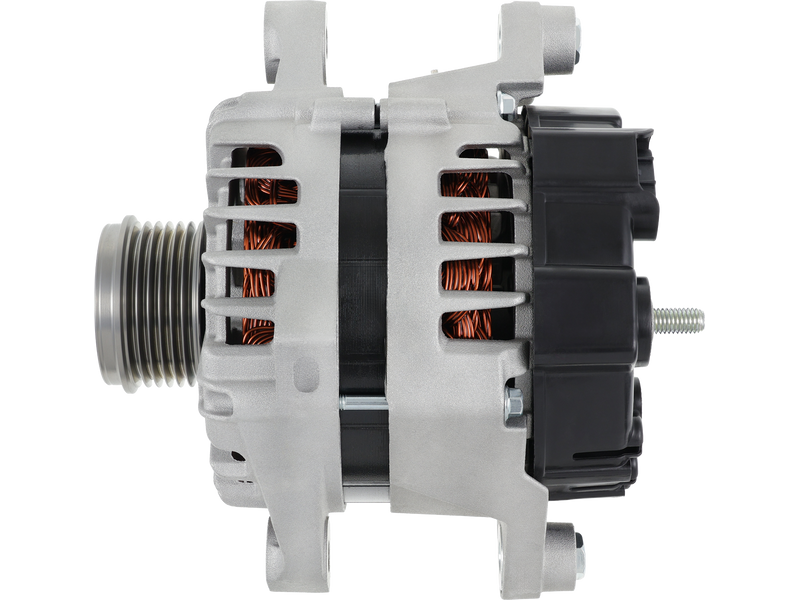

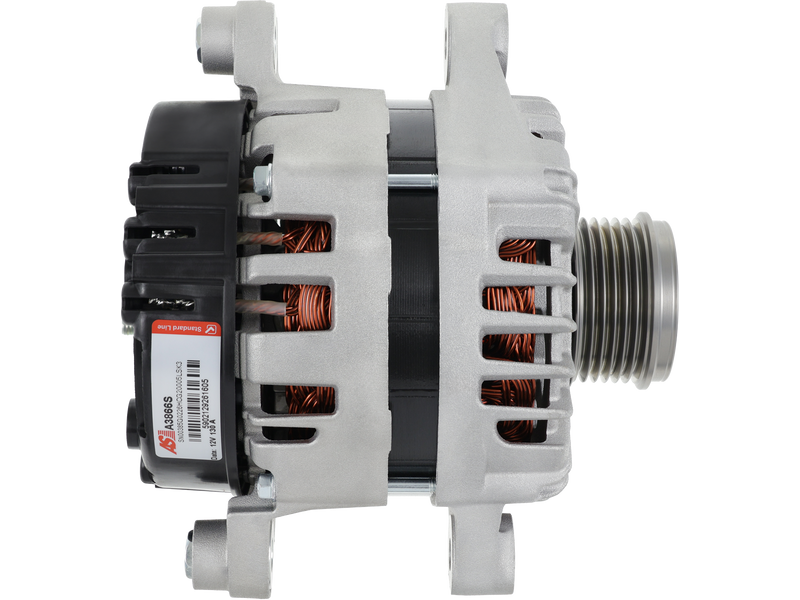

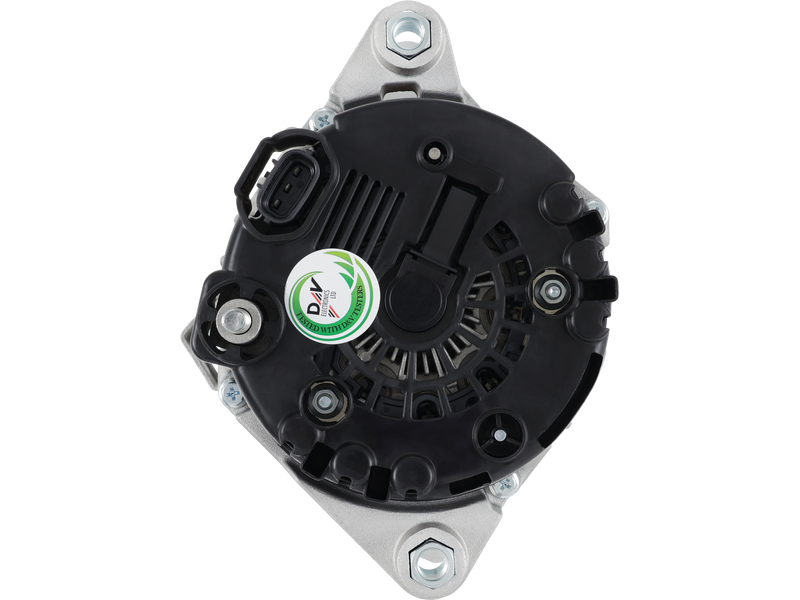

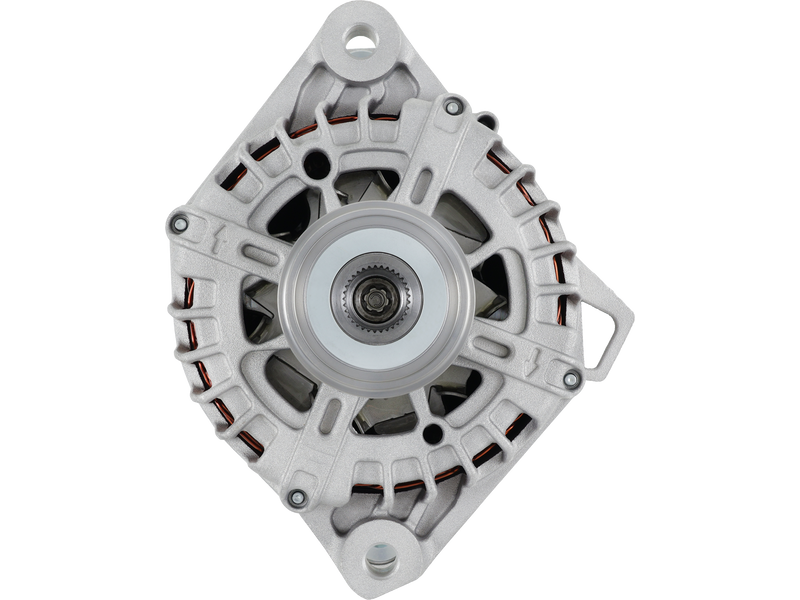

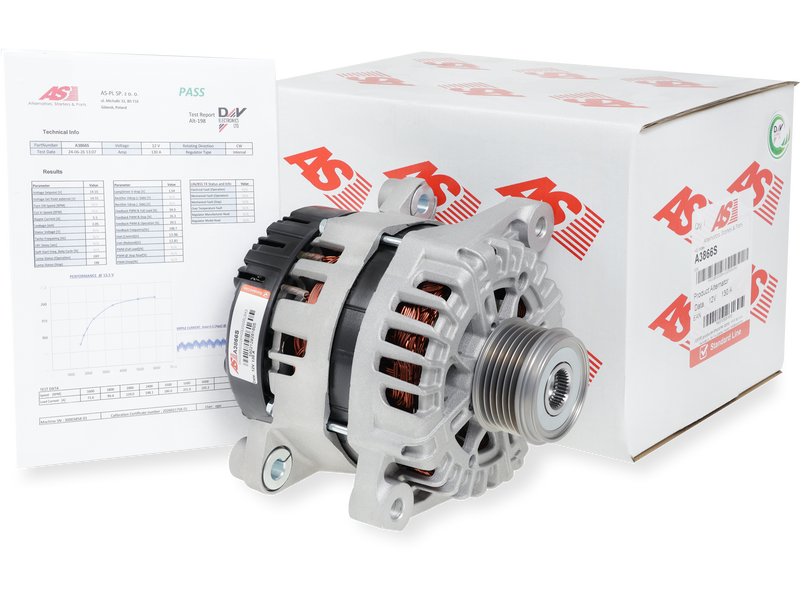

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 674.57 including GST
NZ$ 586.58 excluding GST
or four payments of $168.64
with
Learn More
UOM:
each
Product Code:
A3866S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

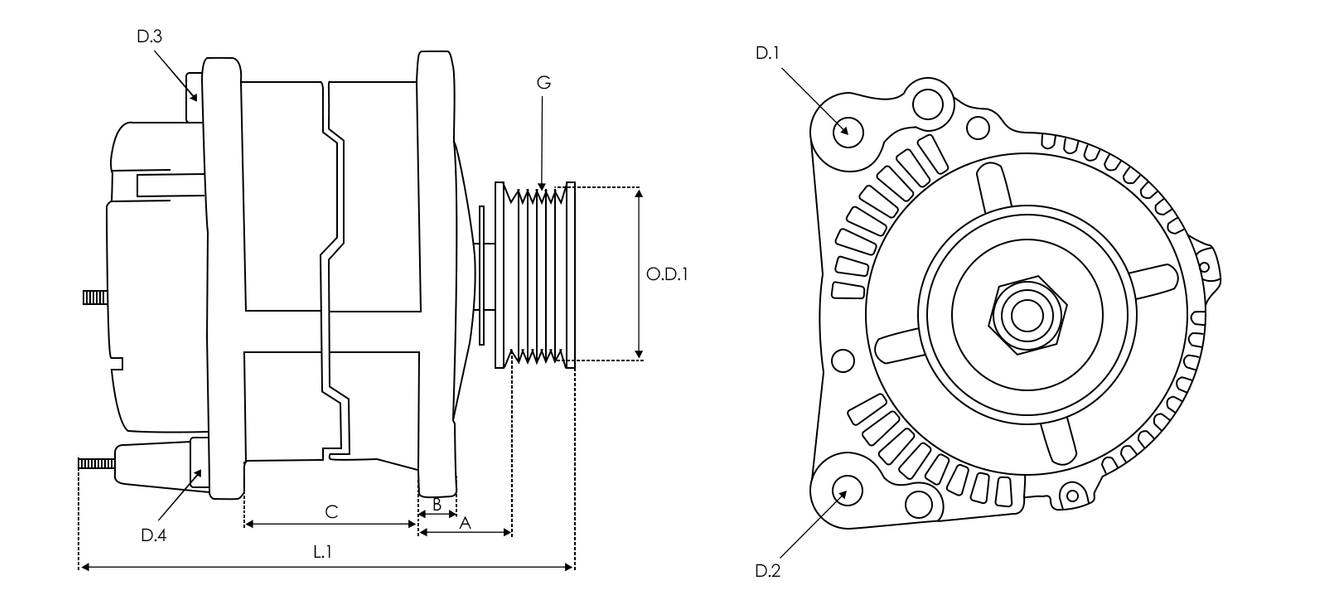

Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 20.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 188.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 58.00 mm |
| Plug Code | PL_3304 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 55.00 mm |
| Pulley to Mount Distance (A) | 41.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | SANTA FÉ III (DM, DMA) 2.4 4WD | G4KJ | 09.2012-10.2015 |
| HYUNDAI | SANTA FÉ III (DM, DMA) 2.4 CCVT AWD | G4KE | 09.2012-02.2018 |
Reference Information
| 155.974.130.360 | WAI |
| 20032212AV | ITAB AUTOMOTIVE |
| 20193212BN | REAL |
| 2032212.0 | SANDO |
| 209596 | ERA |
| 37300-2G700 | HYUNDAI / KIA |
| 556531RI | KUHNER |
| 556531RIV | KUHNER |
| 600227 | VALEO |
| A0002612070 | VALEO |
| ALT342120A | SIOM |
| BN373002G700 | MANDO |
| CAL32212AS | CASCO |
| G102278 | BTS TURBO |
| UD30374A | AS-PL |
| VAL600227 | WOODAUTO |
| WG2472266 | WILMINK GROUP |
| WG2503959 | WILMINK GROUP |
