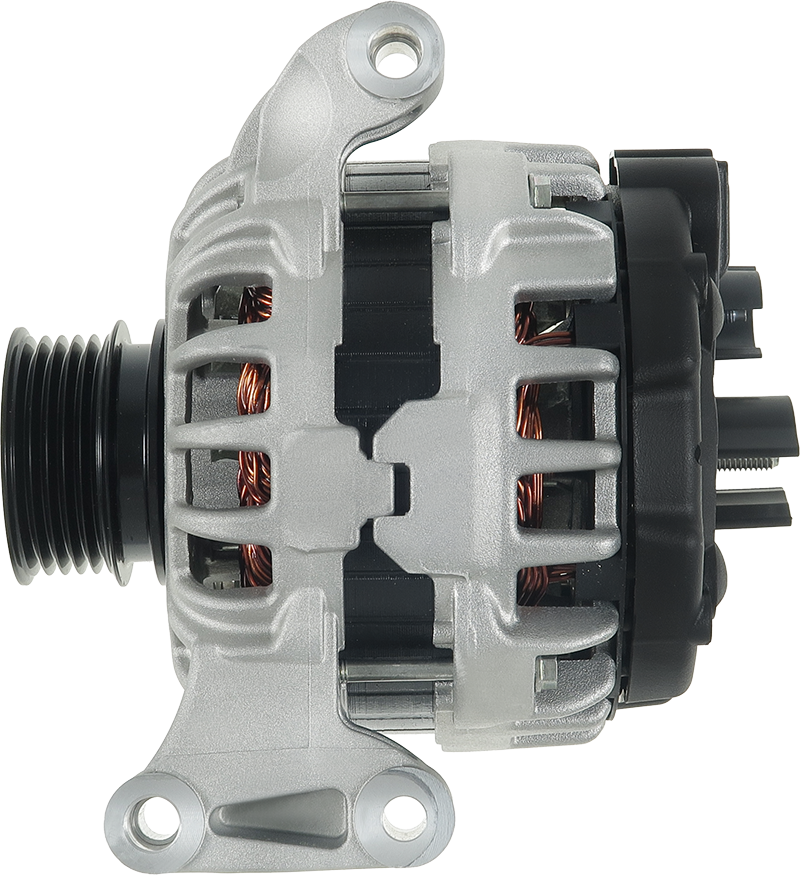

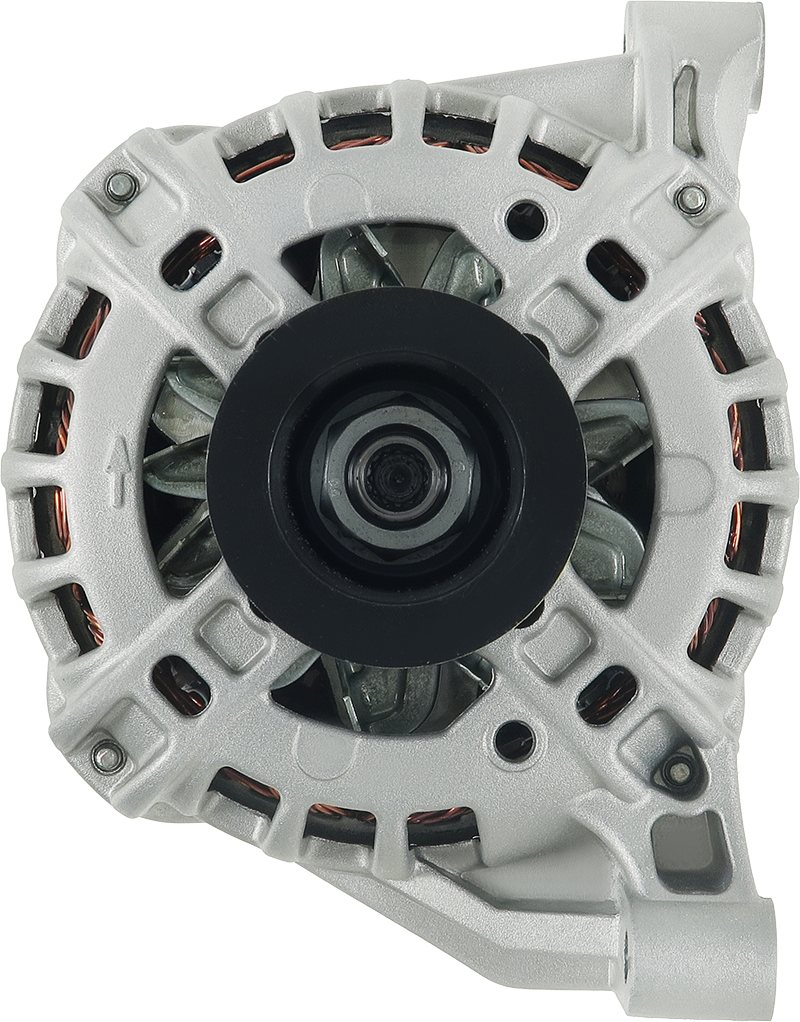

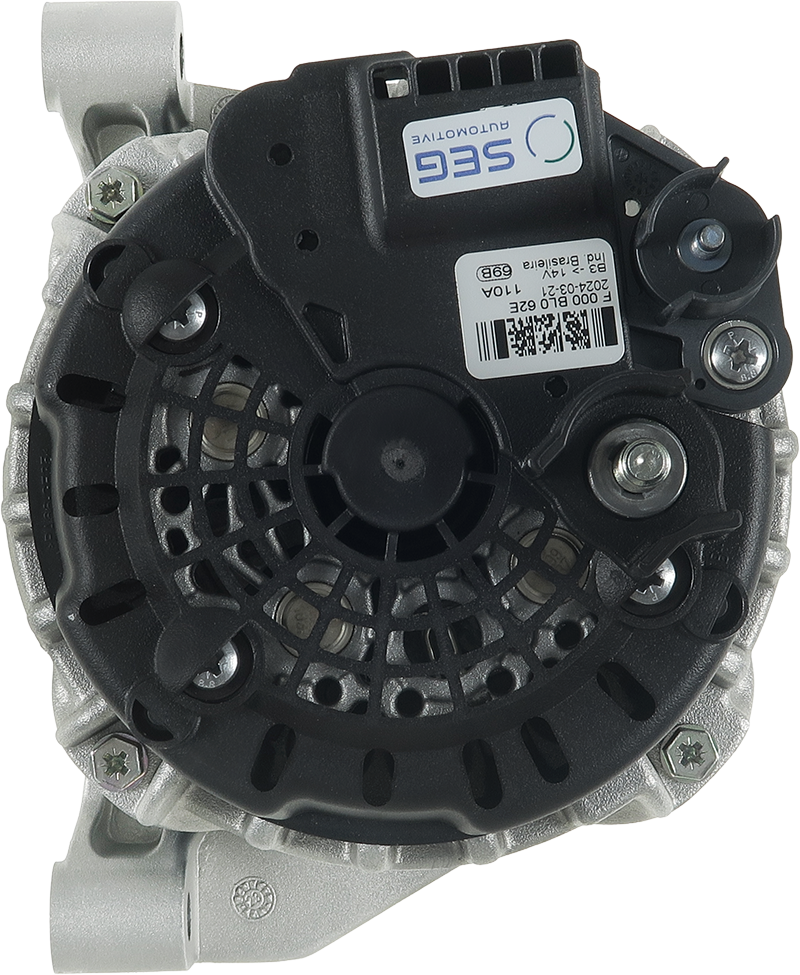

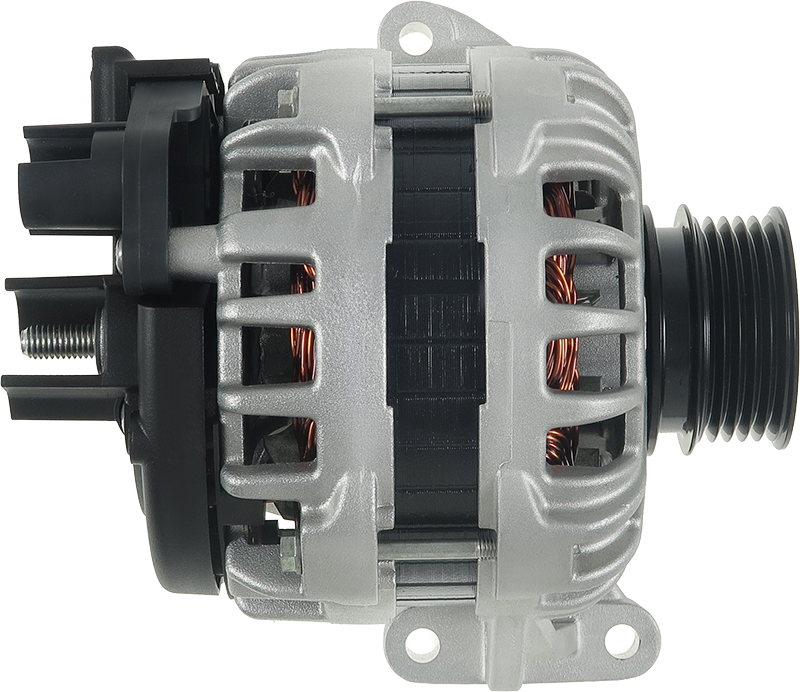

Brand new AS-PL Alternator
PREMIUM LINE
SEG Automotive
BOSCH
Price:
NZ$ 632.25 including GST
NZ$ 549.78 excluding GST
or four payments of $158.06
with
Learn More
UOM:
each
Product Code:
A01227(SEG)
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 110 A |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 177.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49.50 mm |
| Pad mount thickness (E.1) | 24.00 mm |
| Pad mount thickness (E.2) | 24.00 mm |
| Plug Code | PL_9104 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 14.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ABARTH | GRANDE PUNTO 1.4 (199.AXN1B) | 199A8.000 | 07.2007-06.2010 |
| ABARTH | GRANDE PUNTO 1.4 ESSEESSE / SUPERSPORT (199.AXX1B) | 199A8.000 | 05.2008-06.2010 |
| ALFA ROMEO | MITO (955_) 1.4 (955AXB1B) | 955A1.000 | 08.2008-08.2013 |
| ALFA ROMEO | MITO (955_) 1.4 (955AXB1B, 955.AXF1B) | 199A6.000 | 09.2008-08.2013 |
| ALFA ROMEO | MITO (955_) 1.4 (955.AXB1B, 955.AXU1A) | 350A1.000 | 03.2011-10.2018 |
| ALFA ROMEO | MITO (955_) 1.4 (955AXV1A) | 955A9.000 | 05.2011-10.2018 |
| FIAT | 500 (312_) 1.2 (312AXA1A) | 169A4.000 | 07.2007- |
| FIAT | 500 (312_) 1.2 LPG (312AXA1A) | 169A4.000 | 12.2010- |
| FIAT | 500 (312_) 1.4 (301J410) | 169A3.000 | 09.2008- |
| FIAT | 500 (312_) 1.4 (312AXC1B, 312CXC1B) | 169A3.000 | 10.2007- |
| FIAT | 500 C (312_) 1.2 (312CXA1A, 312AXA1A) | 169A4.000 | 09.2009- |
| FIAT | 500 C (312_) 1.4 (301J410) | 169A3.000 | 09.2011- |
| FIAT | 500 C (312_) 1.4 (301J410) | EAB | 09.2011- |
| FIAT | 500 C (312_) 1.4 (312CXC1B, 312AXC1B) | 169A3.000 | 09.2009- |
| FIAT | BRAVO II (198_) 1.4 16V (198AXS1B) | 198A7.000 | 04.2010-12.2014 |
| FIAT | BRAVO II (198_) 1.4 (198AXA1B) | 192B2.000 | 04.2007-12.2014 |
| FIAT | BRAVO II (198_) 1.4 T-Jet (198AXF1B) | 198A1.000 | 09.2007-12.2014 |
| FIAT | BRAVO II (198_) 1.4 T-Jet (198AXG1B) | 198A4.000 | 10.2007-12.2014 |
| FIAT | DOBLO Box Body/MPV (223_) 1.4 | 350A1.000 | 10.2005- |
| FIAT | DOBLO Bus (263_) 1.4 (263AXA1A) | 843A1.000 | 02.2010- |
| FIAT | DOBLO Cargo (263_) 1.4 | 843A1.000 | 02.2010- |
| FIAT | DOBLO MPV (119_, 223_) 1.4 | 350A1.000 | 10.2005- |
| FIAT | DOBLO Platform/Chassis (263_) 1.4 | 843A1.000 | 04.2010- |
| FIAT | FIORINO Box Body/MPV (225_) 1.4 (225AXA1A, 225BXA1A) | 350A1.000 | 10.2009- |
| FIAT | FIORINO Box Body/MPV (225_) 1.4 Natural Power (225AXC1A, 225BXC1A) | 350A1.000 | 06.2008- |
| FIAT | FIORINO Box Body/MPV (225_) 1.4 Natural Power (225BXC1A, 225AXC1A) | 350A1.000 | 06.2008- |
| FIAT | FIORINO MPV (225_) 1.4 (225AXA1A) | 350A1.000 | 07.2014- |
| FIAT | FIORINO MPV (225_) 1.4 CNG (225AXC1A, 225BXC1A) | 350A1.000 | 06.2008- |
| FIAT | GRANDE PUNTO (199_) 1.2 | 169A4.000 | 09.2010- |
| FIAT | GRANDE PUNTO (199_) 1.2 | 199A4.000 | 10.2005- |
| FIAT | GRANDE PUNTO (199_) 1.4 16V (199BXG1B, 199AXG1B) | 199A6.000 | 10.2005-08.2011 |
| FIAT | GRANDE PUNTO (199_) 1.4 (199AXB11, 199AXB1A, 199BXB1A, 199AXL1A) | 350A1.000 | 06.2005-12.2015 |
| FIAT | GRANDE PUNTO (199_) 1.4 (199AXB1A) | 199A7.000 | 10.2005-07.2007 |
| FIAT | GRANDE PUNTO (199_) 1.4 LPG | 350A1.000 | 12.2008- |
| FIAT | GRANDE PUNTO (199_) 1.4 Natural Power | 350A1.000 | 07.2008- |
| FIAT | GRANDE PUNTO Van (199_) 1.4 (199CXB1A, 199DXB1A) | 350A1.000 | 02.2006-06.2013 |
| FIAT | GRANDE PUNTO Van (199_) 1.4 Natural Power (199BXB1A) | 350A1.000 | 03.2009-12.2012 |
| FIAT | IDEA (350_) 1.2 16V | 188A5.000 | 01.2004- |
| FIAT | IDEA (350_) 1.4 | 192B2.000 | 12.2003- |
| FIAT | IDEA (350_) 1.4 | 350A1.000 | 10.2005- |
| FIAT | IDEA (350_) 1.4 16V | 843A1.000 | 01.2004- |
| FIAT | IDEA (350_) 1.4 LPG | 350A1.000 | 03.2009- |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 176A8.000 | 06.1998- |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178B5.000 | 06.1998- |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178B7.045 | 07.1997-08.2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178C4.066 | 07.1997-08.2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178E2.000 | 06.1998- |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 188A4.000 | 07.1997-08.2002 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 | 178B5.000 | 04.1996-02.2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178BXZ1A) | 178E2.000 | 06.1999-10.2002 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178DYA1A, 178DXS1A) | 178C4.066 | 07.1997-10.2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178DYA1A, 178DXS1A) | 188A4.000 | 07.1997-10.2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (1788891, 1789491, 1730250) | 178D6.011 | 03.2000-02.2003 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (1788891, 1789491, 1730250) | 188A5.000 | 03.2000-02.2003 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | 178D6.011 | 09.2001-10.2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | 188A5.000 | 09.2001-10.2004 |
| FIAT | PANDA (169_) 1.1 (169.AXA1A) | 187A1.000 | 09.2003- |
| FIAT | PANDA (169_) 1.2 (169.AXB11, 169.AXB1A) | 188A4.000 | 09.2003- |
| FIAT | PANDA (169_) 1.2 (169AXF2A, 169AXF1A) | 169A4.000 | 03.2010-08.2013 |
| FIAT | PANDA (169_) 1.2 4x4 (169.AXB2A) | 188A4.000 | 10.2004- |
| FIAT | PANDA (169_) 1.2 4x4 (169AXF2A, 169AXF1A) | 169A4.000 | 04.2010-08.2013 |
| FIAT | PANDA (169_) 1.2 LPG (169.AXB1A) | 188A4.000 | 04.2009- |
| FIAT | PANDA (169_) 1.2 LPG (169CXF1A) | 169A4.000 | 11.2010-08.2013 |
| FIAT | PANDA (169_) 1.2 Natural Power (169.AXB1A) | 188A4.000 | 01.2007-12.2011 |
| FIAT | PANDA (169_) 1.3 JTD Multijet 4x4 (169AXG1A, 169AXG2A) | 169A1.000 | 09.2010-08.2013 |
| FIAT | PANDA (169_) 1.3 JTD Multijet 4x4 (169AXG1A, 169AXG2A) | 169A5.000 | 09.2010-08.2013 |
| FIAT | PANDA (169_) 1.4 (169AXE1B) | 169A3.000 | 10.2006- |
| FIAT | PANDA (169_) 1.4 Natural Power (169AXHIA) | 350A1.000 | 09.2010-08.2013 |
| FIAT | PANDA (312_, 319_) 1.2 (312PXA1A) | 169A4.000 | 02.2012- |
| FIAT | PANDA (312_, 319_) 1.2 LPG (312PXA1A) | 169A4.000 | 06.2012- |
| FIAT | PANDA Hatchback Van (169_) 1.1 (169CXA1A) | 187A1.000 | 09.2004- |
| FIAT | PANDA Hatchback Van (169_) 1.2 | 169A4.000 | 09.2010- |
| FIAT | PANDA Hatchback Van (169_) 1.2 | 188A4.000 | 09.2004- |
| FIAT | PANDA Hatchback Van (169_) 1.2 4x4 | 169A4.000 | 09.2010- |
| FIAT | PANDA Hatchback Van (169_) 1.2 4x4 | 188A4.000 | 09.2004- |
| FIAT | PANDA Hatchback Van (169_) 1.2 Bipower (169CXB1A) | 188A4.000 | 09.2004-12.2011 |
| FIAT | PANDA Hatchback Van (169_) 1.2 LPG | 169A4.000 | 09.2010- |
| FIAT | PANDA Hatchback Van (169_) 1.2 LPG | 188A4.000 | 04.2009- |
| FIAT | PANDA Hatchback Van (169_) 1.2 Natural Power | 188A4.000 | 01.2007-11.2009 |
| FIAT | PANDA Hatchback Van (169_) 1.4 Natural Power | 350A1.000 | 10.2009- |
| FIAT | PANDA VAN (312_, 519_) 1.2 (312CXA1A, 312DXA1A) | 169A4.000 | 02.2012- |
| FIAT | PANDA VAN (312_, 519_) 1.2 LPG (312CXA1A) | 169A4.000 | 06.2012- |
| FIAT | PUNTO (188_) 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... | 188A5.000 | 09.1999-04.2006 |
| FIAT | PUNTO (188_) 1.2 60 (188.030, .050, .130, .150, .230, .250) | 188A4.000 | 09.1999-12.2010 |
| FIAT | PUNTO (188_) 1.2 Bifuel | 188A4.000 | 08.2007-03.2012 |
| FIAT | PUNTO (188_) 1.2 Bipower (188BXA1A) | 188A4.000 | 08.2001-05.2003 |
| FIAT | PUNTO (188_) 1.2 Natural Power | 188A4.000 | 09.2003-03.2012 |
| FIAT | PUNTO (188_) 1.2 Natural Power (188BXA1A) | 188A4.000 | 04.2004-04.2006 |
| FIAT | PUNTO (188_) 1.4 | 843A1.000 | 09.2003-03.2012 |
| FIAT | PUNTO (199_) 1.2 (199AXZ1A, 199BXZ1A) | 169A4.000 | 03.2012- |
| FIAT | PUNTO (199_) 1.2 (199AYL1A, 199BYL1A) | 199B9.000 | 02.2014- |
| FIAT | PUNTO (199_) 1.4 (199AXB1A, 199BXB1A, 199BXB11, 199AXB11) | 350A1.000 | 03.2012- |
| FIAT | PUNTO (199_) 1.4 (199AXH1A, 199BXH1A) | 199A7.000 | 03.2012- |
| FIAT | PUNTO (199_) 1.4 Bifuel | 350A1.000 | 03.2012- |
| FIAT | PUNTO (199_) 1.4 Natural Power | 350A1.000 | 03.2012- |
| FIAT | PUNTO EVO (199_) 1.2 | 169A4.000 | 10.2009-02.2012 |
| FIAT | PUNTO EVO (199_) 1.2 | 199A4.000 | 10.2009-02.2012 |
| FIAT | PUNTO EVO (199_) 1.4 (199AXB1A) | 350A1.000 | 10.2009-02.2012 |
| FIAT | PUNTO EVO (199_) 1.4 (199AXH1A) | 199A7.000 | 07.2009-02.2012 |
| FIAT | PUNTO EVO (199_) 1.4 LPG | 350A1.000 | 06.2009-02.2012 |
| FIAT | PUNTO EVO (199_) 1.4 Natural Power | 350A1.000 | 10.2009-02.2012 |
| FIAT | PUNTO EVO Hatchback Van (199_) 1.4 (199.AXB1A) | 350A1.000 | 03.2009-02.2012 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 60 | 188A4.000 | 02.2000-10.2009 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 Natural Power (188CXA1A) | 188A4.000 | 01.2003-12.2010 |
| FIAT | PUNTO Hatchback Van (199_) 1.4 (199BXB1A, 199AXL1A, 199AXB1A) | 350A1.000 | 03.2012- |
| FIAT | PUNTO Hatchback Van (199_) 1.4 LPG (199AXB1A, 199BXB1A, 199AXL1A) | 350A1.000 | 03.2012- |
| FIAT | PUNTO Hatchback Van (199_) 1.4 Natural Power (199AXB1A, 199AXL1A) | 350A1.000 | 03.2009- |
| FIAT | QUBO (225_) 1.4 (225AXA1A, 225CXA1A) | 350A1.000 | 10.2009- |
| FIAT | QUBO (225_) 1.4 Natural Power (225AXC1A) | 350A1.000 | 10.2009- |
| FIAT | SIENA (178_, 172_, 372_) 1.3 | 188A5.000 | 09.2001-12.2009 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) | 178C4.066 | 09.2001-12.2012 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) | 188A4.000 | 09.2001-12.2012 |
| FIAT | SIENA (178_, 172_, 372_) 1.4 | 178F3.011 | 01.2007-12.2009 |
| FIAT | SIENA (178_, 172_, 372_) 1.4 | 350A1.000 | 01.2007-12.2009 |
| FIAT | STILO (192_) 1.4 16V (192AXH1B, 192BXH1B) | 843A1.000 | 10.2003-12.2006 |
| FIAT | STRADA Pickup (178_, 278_) 1.2 | 188A4.000 | 04.2003- |
| FIAT | TIPO Estate (356_, 357_) 1.4 (356WXA1B) | 843A1.000 | 03.2016-10.2020 |
| FIAT | TIPO Estate (356_, 357_) 1.4 (356WXF1B) | 940B7.000 | 03.2016-10.2020 |
| FIAT | TIPO Estate (356_, 357_) 1.4 LPG (356WXF1B) | 940B7.000 | 05.2016-10.2020 |
| FIAT | TIPO Hatchback (356_, 357_) 1.4 (356HXA1B) | 843A1.000 | 03.2016- |
| FIAT | TIPO Hatchback (356_, 357_) 1.4 (356HXF1B) | 940B7.000 | 03.2016-10.2020 |
| FIAT | TIPO Hatchback (356_, 357_) 1.4 LPG (356HXF1B) | 940B7.000 | 05.2016-10.2020 |
| FIAT | TIPO Saloon (356_, 357_) 1.4 (356SXA1B) | 843A1.000 | 10.2015- |
| FIAT | TIPO Saloon (356_, 357_) 1.4 LPG (356SXF1B) | 940B7.000 | 05.2016-10.2020 |
| FORD | KA (RU8) 1.2 | 169A4000 | 10.2008-05.2016 |
| FORD | KA (RU8) 1.2 | FP4 | 10.2008-05.2016 |
| LANCIA | MUSA (350_) 1.4 (350.AXA11, 350.AXA1A) | 843A1.000 | 10.2004-09.2012 |
| LANCIA | MUSA (350_) 1.4 (350.AXF1A) | 350A1.000 | 09.2005-09.2012 |
| LANCIA | MUSA (350_) 1.4 LPG (350.AXF1A) | 350A1.000 | 11.2010-09.2012 |
| LANCIA | Y (840_) 1.2 16V (840AD) | 176B9.000 | 04.1997-09.2003 |
| LANCIA | Y (840_) 1.2 16V (840AG1A) | 188A5.000 | 10.2000-09.2003 |
| LANCIA | Y (840_) 1.2 (840AA, 840AF1A) | 188A4.000 | 03.1996-09.2003 |
| LANCIA | Y (840_) 1.2 (840AA, 840AF1A) | 840A3.000 | 03.1996-09.2003 |
| LANCIA | YPSILON (312_) 1.2 (312.PXA1A, 312.YXA1A) | 169A4.000 | 05.2011-12.2021 |
| LANCIA | YPSILON (312_) 1.2 Bi-fuel (312.YXA1A) | 169A4.000 | 05.2011- |
| LANCIA | YPSILON (312_) 1.2 Bi-fuel (312.YXA1A) | 169A4.000 | 05.2011- |
| LANCIA | YPSILON (843_) 1.2 (843.AXA1A) | 188A4.000 | 10.2003-12.2011 |
| LANCIA | YPSILON (843_) 1.2 (843.AXB1A) | 188A5.000 | 10.2003-12.2011 |
| LANCIA | YPSILON (843_) 1.2 (843.AXL1A) | 169A4.000 | 08.2010-12.2011 |
| LANCIA | YPSILON (843_) 1.4 16V (843.AXC11, 843.AXC1B, 843.AXC1A) | 843A1.000 | 10.2003-12.2011 |
| LANCIA | YPSILON (843_) 1.4 (843.AXG1A) | 350A1.000 | 02.2006-12.2011 |
| LANCIA | YPSILON (843_) 1.4 LPG (843.AXG1A) | 350A1.000 | 11.2010-12.2011 |
| OPEL | COMBO Box Body/MPV (X12) 1.4 (B05) | A14FC | 02.2012- |
| OPEL | COMBO Box Body/MPV (X12) 1.4 CNG (B05) | A14FC | 02.2012- |
| OPEL | COMBO Tour (X12) 1.4 (C26, D26, E26, C06) | A14FC | 02.2012- |
| OPEL | COMBO Tour (X12) 1.4 CNG (C26, D26, E26, C05) | A14FC | 02.2012- |
Reference Information
| 1986A02009 | BOSCH |
| 20010063OV | ITAB AUTOMOTIVE |
| 2010063.1 | SANDO |
| 20101360OE | REAL |
| 44011 | ZEN |
| 505.598.110.010 | WAI |
| 505.598.110.280 | WAI |
| 51865741 | FIAT |
| 556764RI | KUHNER |
| A145.904 | WAI |
| A155.712 | WAI |
| ALT120630 | SIOM |
| CAL10063GS | CASCO |
| F000BL0600 | BOSCH |
| F000BL062B | BOSCH |
| F000BL062E | BOSCH |
| G103987 | BTS TURBO |
| UD05153(SEG)A | AS-PL |
