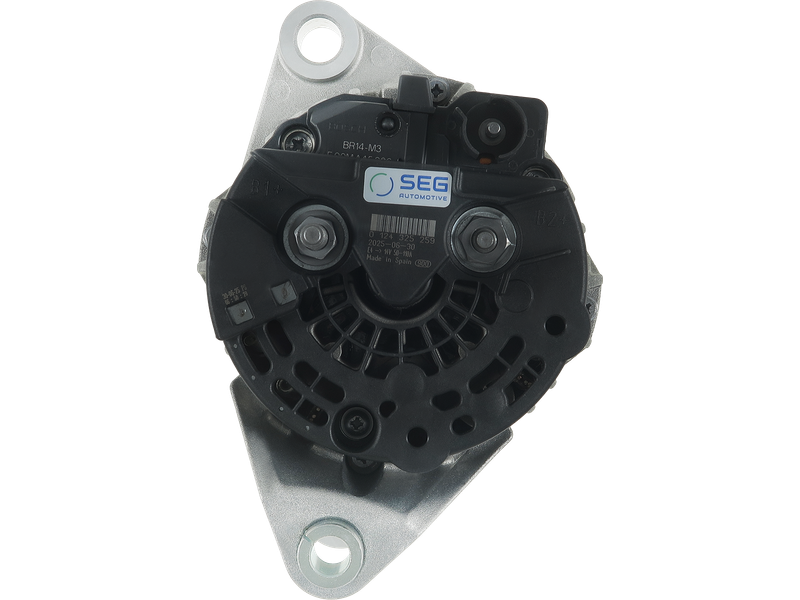

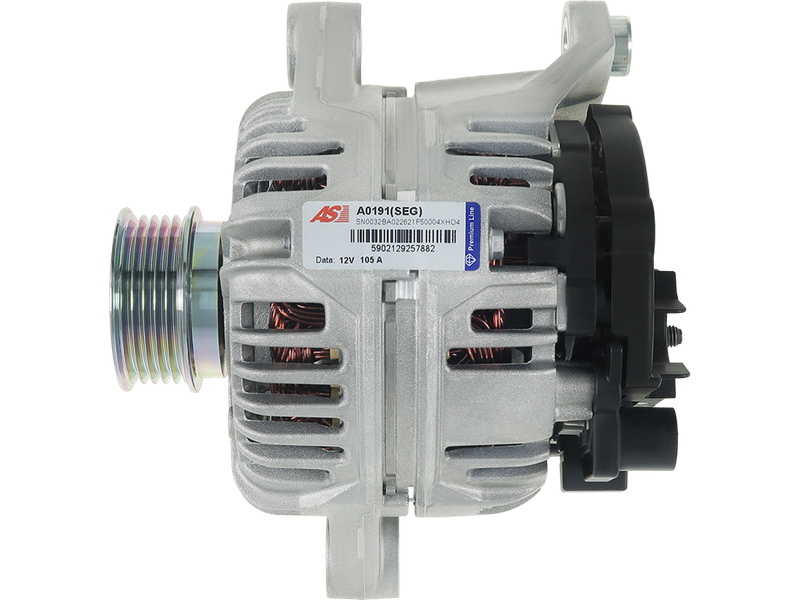

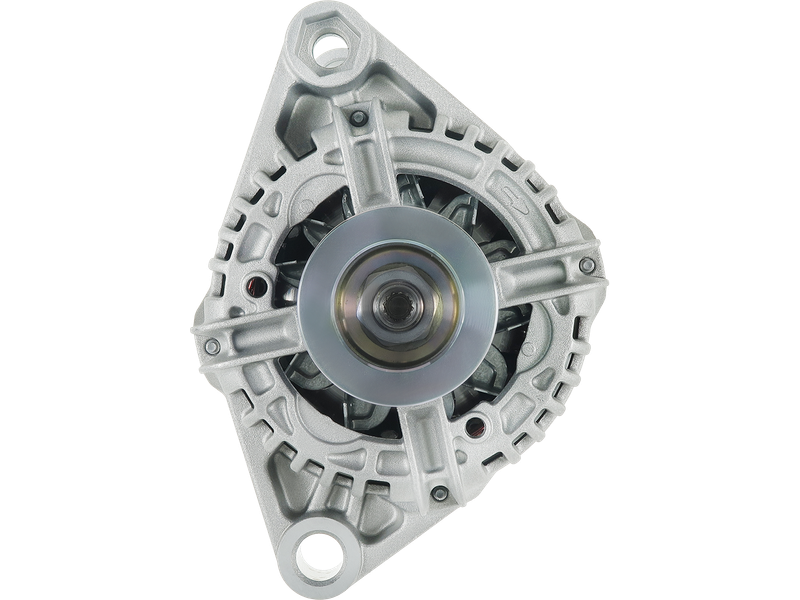

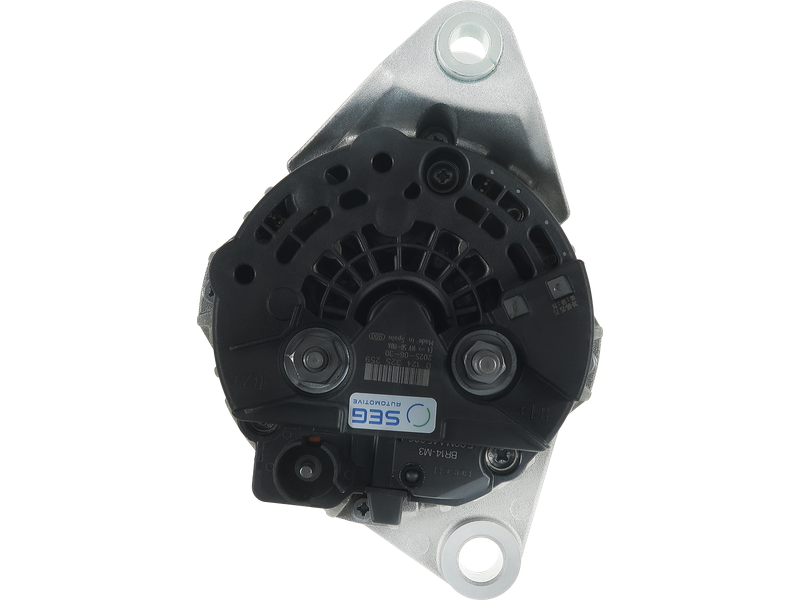

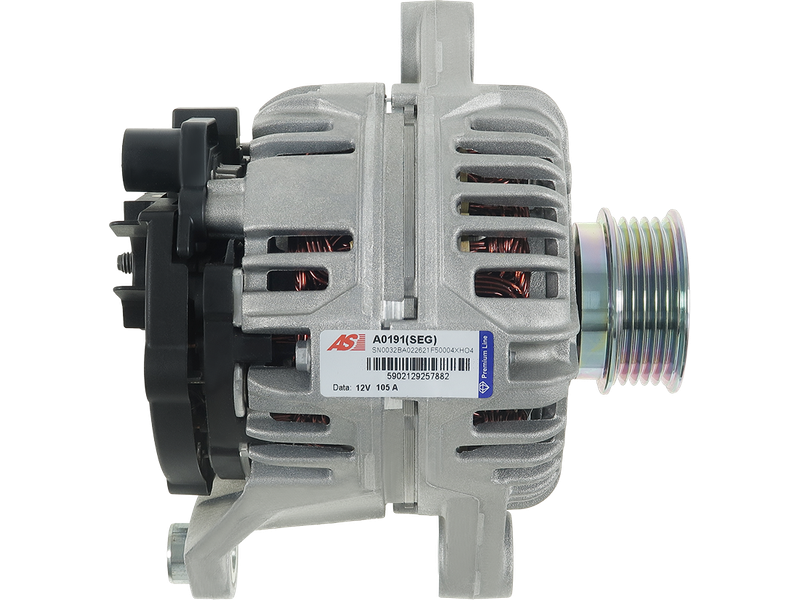

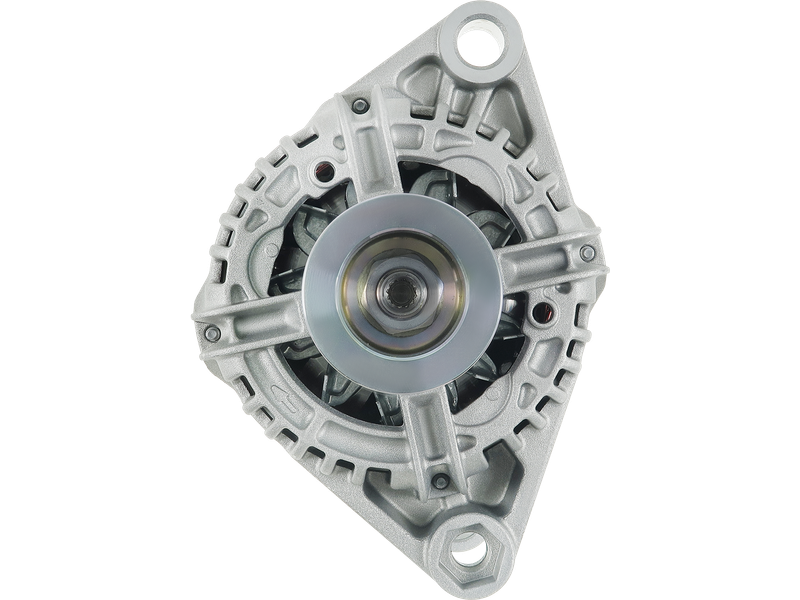

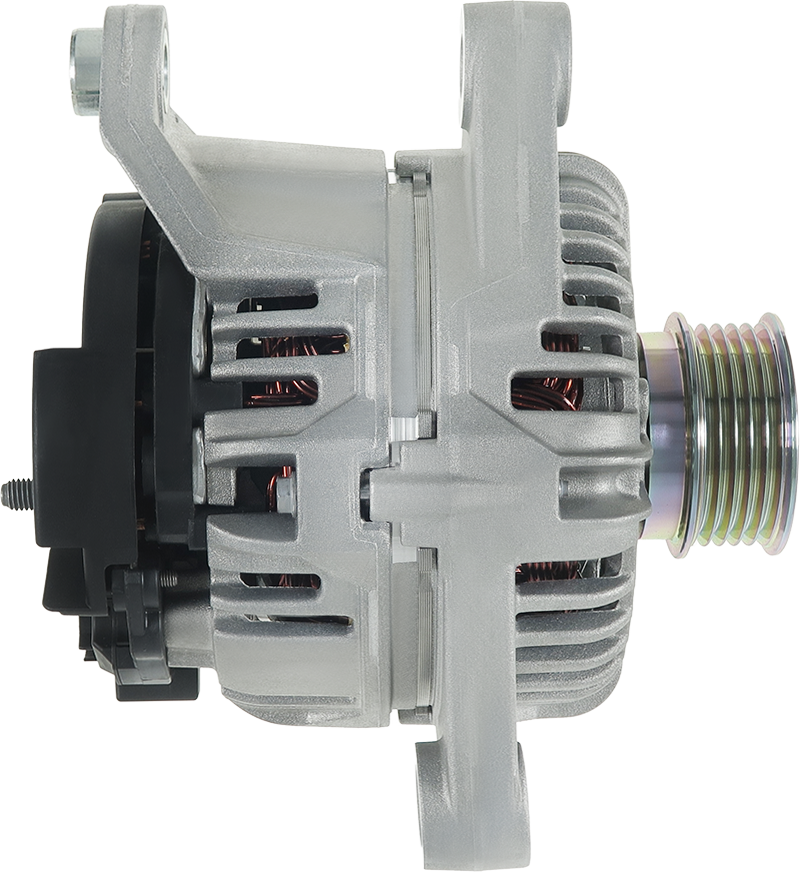

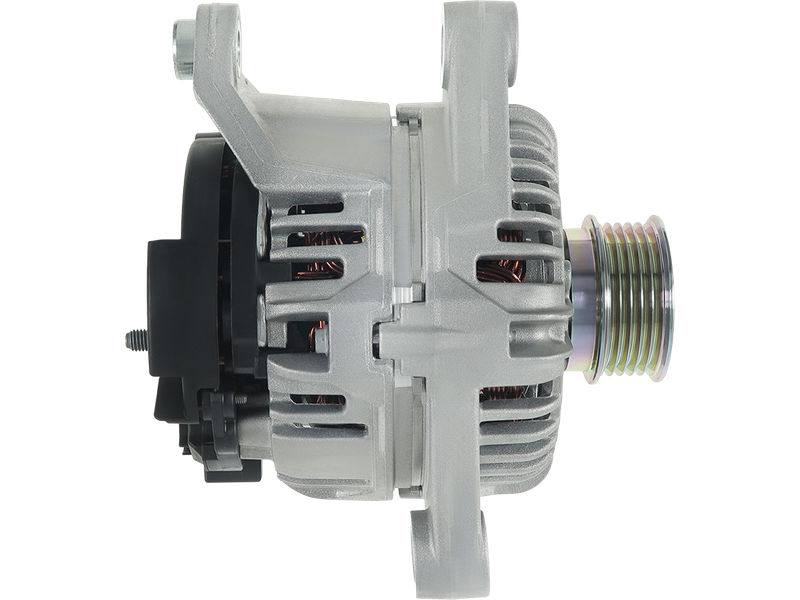

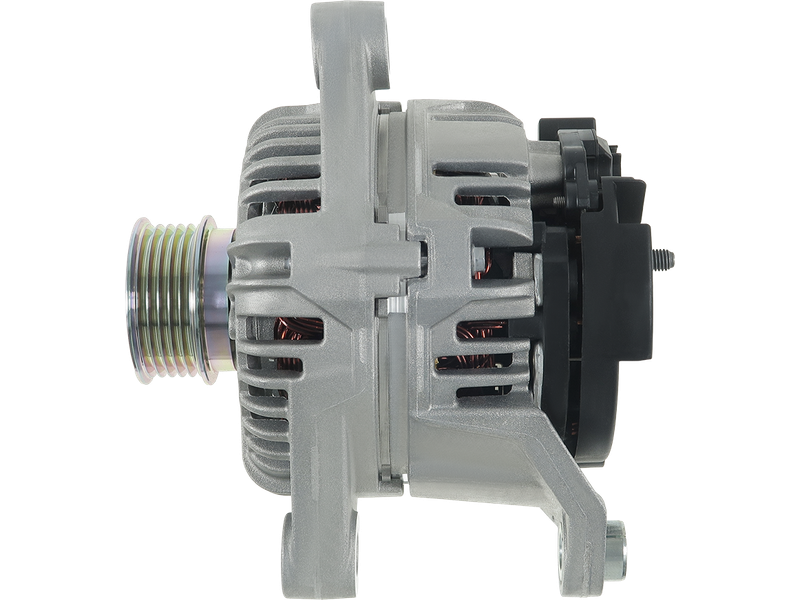

Brand new AS-PL Alternator
PREMIUM LINE
SEG Automotive
BOSCH
Price:
NZ$ 993.74 including GST
NZ$ 864.12 excluding GST
or four payments of $248.44
with
Learn More
UOM:
each
Product Code:
A0191(SEG)
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 105 A |
| Bottom Mounting Foot Width (B) | 25.00 mm |
| Diameter (D.1) | 16.00 mm |
| Diameter (D.2) | 13.00 mm |
| Diameter (D.3) | 12.00 mm |
| Length (L.1) | 194.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 70.50 mm |
| Plug Code | PL_9104 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 59.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 147 (937_) 2.0 16V T.SPARK (937.AXA1, 937.AXC1, 937.BXC1) | AR32310 | 01.2001-03.2010 |
| FIAT | BRAVA (182_) 1.6 16V (182.BB) | 182A4.000 | 02.1996-10.2001 |
| FIAT | BRAVA (182_) 1.6 16V (182.BU) | 182B6.000 | 01.1999-12.2002 |
| FIAT | DOBLO Box Body/MPV (223_) 1.6 16V (223ZXD1A) | 182B6.000 | 10.2001- |
| FIAT | DOBLO Box Body/MPV (223_) 1.6 Natural Power | 182B6.000 | 09.2002- |
| FIAT | DOBLO Box Body/MPV (223_) 1.6 Natural Power (223WXD1A) | 182B6.000 | 02.2004-07.2009 |
| FIAT | DOBLO MPV (119_, 223_) 1.6 16V (223AXD1A) | 182B6.000 | 10.2001- |
| FIAT | DOBLO MPV (119_, 223_) 1.6 Natural Power | 182B6.000 | 09.2002- |
| FIAT | DOBLO MPV (119_, 223_) 1.6 Natural Power (223AXD1A) | 182B6.000 | 11.2005-07.2009 |
| FIAT | MAREA (185_) 1.6 | 182B6.000 | 09.2000-08.2002 |
| FIAT | MAREA (185_) 1.6 100 16V | 182A4.000 | 09.1996-05.2002 |
| FIAT | MAREA (185_) 1.6 SX | 182B5.098 | 09.2000-08.2002 |
| FIAT | MAREA Weekend (185_) 1.6 | 182B6.000 | 09.2000-08.2002 |
| FIAT | MULTIPLA (186_) 1.6 100 16V (186AXA1A) | 182A4.000 | 04.1999-06.2010 |
| FIAT | MULTIPLA (186_) 1.6 16V (186AGB1A) | 182B6.000 | 04.2002-06.2010 |
| FIAT | MULTIPLA (186_) 1.6 16V Bipower (186AMB1A) | 186A4.000 | 04.1999-06.2010 |
| FIAT | MULTIPLA (186_) 1.6 16V Bipower (186AXC1A) | 182B6.000 | 10.2001-06.2010 |
| FIAT | MULTIPLA (186_) 1.6 16V Blupower (186AMA1A) | 186A3.000 | 04.1999-06.2010 |
| FIAT | MULTIPLA (186_) 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | 182B6.000 | 09.2000-06.2010 |
| FIAT | MULTIPLA (186_) 1.6 Natural Power (186AGB1A05) | 182B6.000 | 11.2008-06.2010 |
| FIAT | MULTIPLA VAN (186_) 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | 182B6.000 | 09.2000-06.2010 |
| FIAT | MULTIPLA VAN (186_) Bipower | 182B6.000 | 10.2001-06.2010 |
| FIAT | PUNTO (188_) 1.8 130 HGT (188.738, .718) | 183A1.000 | 09.1999-03.2012 |
| FIAT | PUNTO (188_) 1.8 130 HGT (188.738, .718) | 188A6.000 | 09.1999-03.2012 |
| FIAT | STILO (192_) 1.6 | 182B6.000 | 04.2005-11.2006 |
| FIAT | STILO (192_) 1.6 16V | 192B3.000 | 05.2005-11.2006 |
| FIAT | STILO (192_) 1.6 16V (192_XB1A) | 182B6.000 | 10.2001-11.2006 |
| FIAT | STILO (192_) 1.8 16V (192AXC1A, 192BXC1A) | 192A4.000 | 10.2001-04.2007 |
| FIAT | STILO Multi Wagon (192_) 1.6 16V | 182B6.000 | 01.2003-08.2008 |
| FIAT | STILO Multi Wagon (192_) 1.8 16V | 192A4.000 | 01.2003-08.2008 |
| FIAT | STILO VAN (192_) 1.6 (192DXB1A) | 182B6.000 | 04.2005-08.2008 |
| LANCIA | LYBRA (839_) 1.6 | 182B6.000 | 10.2000-10.2005 |
| LANCIA | LYBRA (839_) 1.6 16V (839AXA1A) | 182A4.000 | 07.1999-10.2005 |
| LANCIA | LYBRA SW (839_) 1.6 16V (839BXA1A) | 182A4.000 | 07.1999-10.2005 |
| LANCIA | LYBRA SW (839_) 1.6 (839.BXF1A) | 182B6.000 | 10.2000-10.2005 |
Reference Information
| 010213 | DA SILVA |
| 0124325059 | BOSCH |
| 0124325146 | BOSCH |
| 0124325253 | BOSCH |
| 0124325259 | BOSCH |
| 0124415012 | BOSCH |
| 063533250590 | MAGNETI MARELLI |
| 10442853 | ALANKO |
| 119919 | FARCOM |
| 12042760 | EUROTEC |
| 13020 | MAPCO |
| 149ST75 | STARTCAR |
| 1986A00524 | BOSCH |
| 1986A00789 | BOSCH |
| 20010298AV | ITAB AUTOMOTIVE |
| 20010298OV | ITAB AUTOMOTIVE |
| 20-0254 | AIRSTAL |
| 20101892BN | REAL |
| 20101892OE | REAL |
| 2010298.0 | SANDO |
| 2010298.1 | SANDO |
| 209027 | ERA |
| 210287 | ERA |
| 210287A | ERA |
| 2181631052 | DRI |
| 28-4570 | ELSTOCK |
| 301648RI | KUHNER |
| 310954 | RHIAG |
| 3119238 | HENKEL PARTS |
| 3119239 | HENKEL PARTS |
| 4026 | CEVAM |
| 441839 | LOGISTIK |
| 46532669 | FIAT |
| 46813063 | FIAT |
| 46832123 | FIAT |
| 46841966 | FIAT |
| 4810002 | NK |
| 505.526.105.010 | WAI |
| 505.526.105.461 | WAI |
| 505.526.105.462 | WAI |
| 5510239 | MEAT & DORIA |
| 57149 | EAI |
| 71785854 | FIAT |
| 89212639 | POWERMAX |
| 8EL012428-711 | HELLA |
| 8EL737956-001 | HELLA |
| 9042760 | FRIESEN |
| 944390427600 | MAGNETI MARELLI |
| A12BH0191A2 | SIDAT |
| A133.378 | WAI |
| ABO298 | AUTOTEAM |
| ABO298A | AUTOTEAM |
| AC-CBA1648 | ACAUTO |
| AEC1648 | AUTOELECTRO |
| AL02195 | TMI |
| AL-144JM | JAPANPARTS |
| ALB1648 | KRAUF |
| ALT1042 | ELECTROLOG |
| ALT10448 | WOODAUTO |
| ALT117N | DIPASPORT |
| ALT122980 | SIOM |
| ALT122980A | SIOM |
| ALT1871 | ELECTROLOG |
| ALT2413 | ROLLCO |
| ALTL223 | 3EFFE |
| ALTL223B | 3EFFE |
| ALTL223NE | 3EFFE |
| AM-3912 | AUTO MAGNETO |
| ANM44980 | ANDEL |
| ANM44980X | ANDEL |
| AZMT-49-035-1106 | A.Z. MEISTERTEILE |
| BOL-G091166 | BOLK |
| CA1648IR | HC PARTS |
| CAL10298AS | CASCO |
| CAL10298GS | CASCO |
| DRB2760 | DELCO |
| FI8119 | SNRA |
| G100409 | BTS TURBO |
| GA325059-A | GPARTS |
| H5510239 | HOFFER |
| IR6148 | PROTECH |
| LEA0768 | LE PART |
| LRA02125 | LUCAS |
| LRA2125 | LUCAS |
| MAN2040 | MAGNETI MARELLI |
| MRA42760 | MAGNETI MARELLI |
| PRAL223 | 3EFFE |
| PRAL223B | 3EFFE |
| QRA3427 | QUINTON HAZELL |
| STX100291 | STARDAX |
| STX100291R | STARDAX |
| SV37BH0191.0 | 7 SEVEN PARTS |
| TT11256 | TESLA TECHNICS |
| UD04603(SEG)A | AS-PL |
| UD04607(SEG)A | AS-PL |
| WAL01234 | WALKER |
| WG2196820 | WILMINK GROUP |
