Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 282.60 including GST
NZ$ 245.74 excluding GST
or four payments of $70.65
with
Learn More
UOM:
each
Product Code:
S6693S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

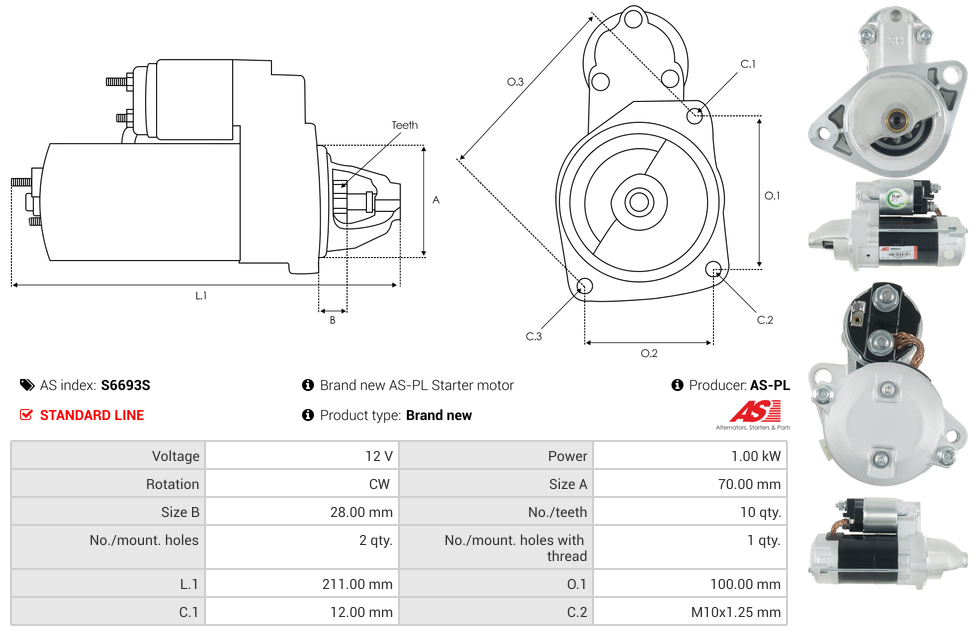

Specifications
| Kilowatt | 1.00 kW |
| Length (L.1) | 211.00 mm |
| Mount Hole Center - Center (O.1) | 100.00 mm |
| Mount Hole Diameter (C.1) | 12.00 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 28.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 70.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | SPLASH (EX) 1.2 (A5B412) | K12B | 01.2008- |
| SUZUKI | SPLASH (EX) 1.2 LPG | K12B | 04.2008-12.2014 |
| SUZUKI | SPLASH (EX) 1.2 VVT (A5B412) | K12B | 06.2011- |
| SUZUKI | SPLASH (EX) 1.2 VVT (A5B412) | K12B | 09.2010- |
| SUZUKI | SWIFT IV (FZ, NZ) 1.2 4x4 (AZG412, ZD72S) | K12B | 10.2010- |
| SUZUKI | SWIFT IV (FZ, NZ) 1.2 (AZG412, ZC72S) | K12B | 10.2010- |
| SUZUKI | SWIFT IV (FZ, NZ) 1.2 (AZH412, ZC72S) | K12B | 10.2010- |
