Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 308.81 including GST
NZ$ 268.53 excluding GST
or four payments of $77.20
with
Learn More
UOM:
each
Product Code:
S5506S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

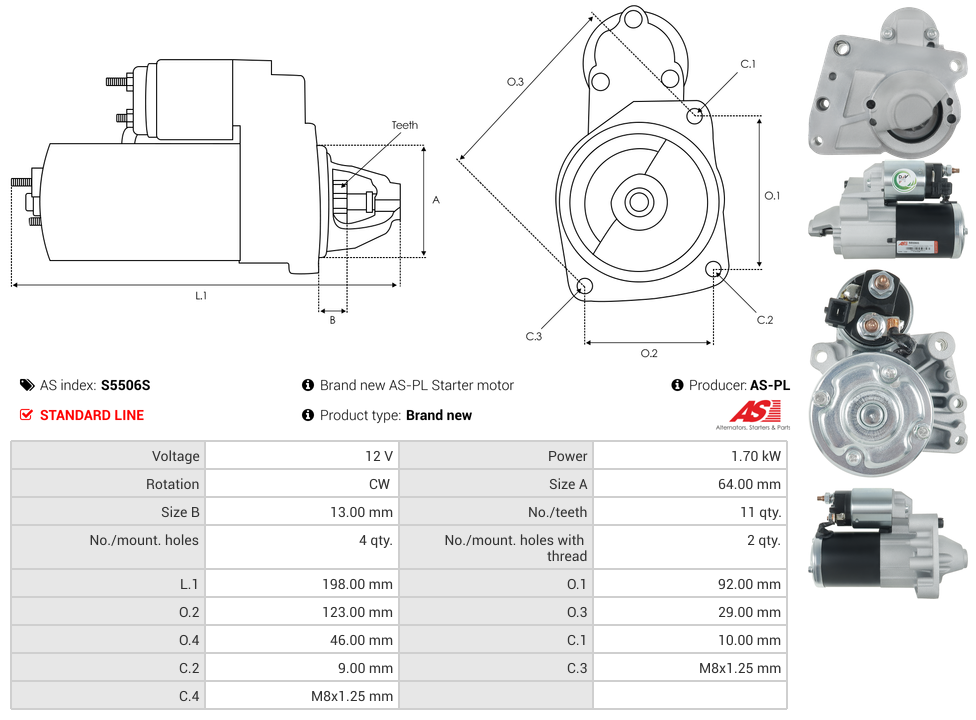

Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 198.00 mm |
| Mount Hole Center - Center (O.1) | 92.00 mm |
| Mount Hole Center - Center (O.2) | 123.00 mm |
| Mount Hole Center - Center (O.3) | 29.00 mm |
| Mount Hole Center - Center (O.4) | 46.00 mm |
| Mount Hole Diameter (C.1) | 10.00 mm |
| Mount Hole Diameter (C.2) | 9.00 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| Mount Hole Diameter (C.4) | M8x1.25 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 13.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 64.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROËN | C4 GRAND PICASSO II (DA_, DE_) 1.6 THP 165 | 5GZ(EP6FDT) | 07.2014- |
| CITROËN | C4 PICASSO II 1.6 THP 150 | 5FX(EP6DT) | 09.2014- |
| CITROËN | C4 PICASSO II 1.6 THP 165 | 5GZ(EP6FDT) | 07.2014- |
| CITROËN | C4 SPACETOURER (3D_) 1.6 THP 165 | 5GZ(EP6FDT) | 04.2018- |
| CITROËN | C5 AIRCROSS (A_) 1.6 THP 150 (A45GXJ) | 5GX(EP6FDTMD) | 09.2019- |
| CITROËN | C5 AIRCROSS (A_) 1.6 THP 165 (A45GYJ) | 5GY(EP6FDTM) | 05.2019- |
| CITROËN | GRAND C4 SPACETOURER (3A_, 3E_) 1.6 THP 165 | 5GX(EP6FDTMD) | 04.2018- |
| CITROËN | GRAND C4 SPACETOURER (3A_, 3E_) 1.6 THP 165 | 5GZ(EP6FDT) | 04.2018- |
| DS | DS 3 (SA_) 1.6 THP (SA5GZM) | 5GZ(EP6FDT) | 07.2015-07.2019 |
| DS | DS 7 Crossback (J4_, JR_, JC_) 1.6 PureTech 225 (J45GCR, J45GGR) | 5GC(EP6FADTX) | 09.2017-12.2022 |
| DS | DS 7 Crossback (J4_, JR_, JC_) 1.6 PureTech 225 (J45GCR, J45GGR) | 5GG(EP6FADTX) | 09.2017-12.2022 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi | 5GP(EP6FDTR) | 08.2015-06.2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi (L35GNH) | 5GN(EP6FDTR) | 06.2015-06.2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 150 | 5GX(EP6FDTMD) | 03.2014-06.2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 163 | 5FM(EP6CDTM) | 06.2014-06.2021 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 150 (L45GXA) | 5GX(EP6FDTMD) | 03.2014-06.2021 |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.6 THP 110 (M45GXV, M45GXW) | 5GX(EP6FDTMD) | 07.2018- |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.6 THP 165 (M45GZW, M45GYW, M45GYV) | 5GY(EP6FDTM) | 12.2016- |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.6 THP 165 (M45GZW, M45GYW, M45GYV) | 5GZ(EP6FDT) | 12.2016- |
| PEUGEOT | 508 II (FB_, FH_, F3_) 1.6 PureTech 225 (F35GGR) | 5GG(EP6FADTX) | 10.2018- |
| PEUGEOT | 508 II (FB_, FH_, F3_) 1.6 THP 150 (F35GXV) | 5GX(EP6FDTMD) | 09.2018- |
| PEUGEOT | 508 II (FB_, FH_, F3_) 1.6 THP 165 (F35GYV) | 5GY(EP6FDTM) | 09.2018- |
| PEUGEOT | 508 SW II (FC_, FJ_, F4_) 1.6 PureTech 225 (F45GGR) | GCR(EP6FADTX) | 09.2018- |
| PEUGEOT | 508 SW II (FC_, FJ_, F4_) 1.6 THP 165 (F45GYV) | 5GY(EP6FDTM) | 09.2018- |
