Brand new AS-PL Alternator
PREMIUM LINE
AS-PL
MITSUBISHI
Price:
NZ$ 312.79 including GST
NZ$ 271.99 excluding GST
or four payments of $78.20
with
Learn More
UOM:
each
Product Code:
S5288PR
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

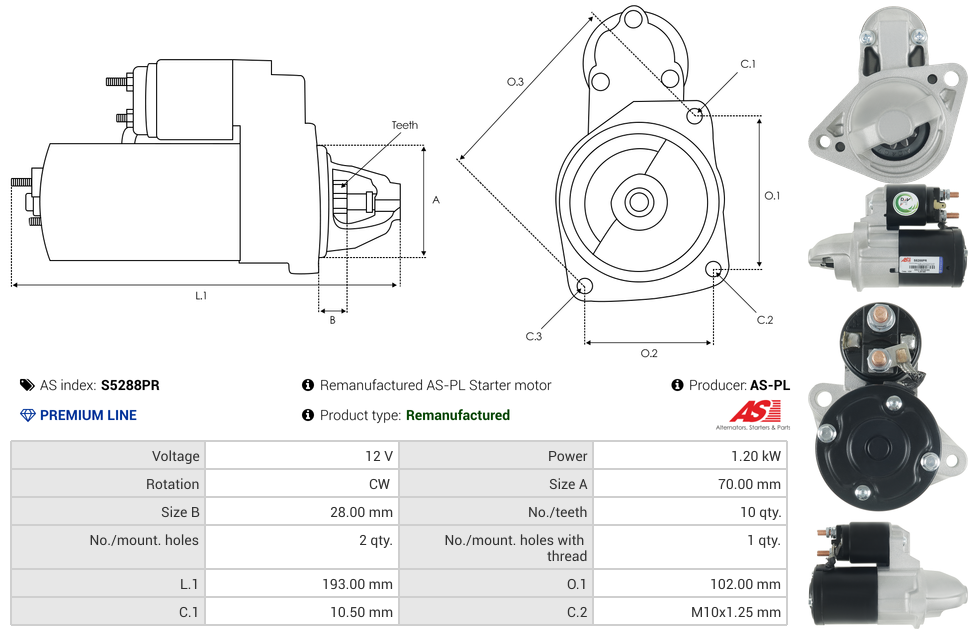

Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 193.00 mm |
| Mount Hole Center - Center (O.1) | 102.00 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 28.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 70.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | AGILA (B) (H08) 1.2 (F68) | K12B | 04.2008-10.2012 |
| OPEL | AGILA (B) (H08) 1.2 (F68) | K12B | 04.2010-10.2014 |
| OPEL | AGILA (B) (H08) 1.2 LPG (F68) | K12B | 04.2008-10.2010 |
| SUZUKI | SPLASH (EX) 1.2 (A5B412) | K12B | 01.2008- |
| SUZUKI | SPLASH (EX) 1.2 VVT (A5B412) | K12B | 06.2011- |
| SUZUKI | SPLASH (EX) 1.2 VVT (A5B412) | K12B | 09.2010- |
| SUZUKI | SWIFT IV (FZ, NZ) 1.2 4x4 (AZG412, ZD72S) | K12B | 10.2010- |
| SUZUKI | SWIFT IV (FZ, NZ) 1.2 4x4 (AZH412, ZD72S) | K12B | 10.2010- |
| SUZUKI | SWIFT IV (FZ, NZ) 1.2 (AZG412, ZC72S) | K12B | 10.2010- |
| SUZUKI | SWIFT IV (FZ, NZ) 1.2 (AZH412, ZC72S) | K12B | 10.2010- |
| SUZUKI | SX4 S-CROSS (JY) 1.0 (AKK 310) | K10C-T | 08.2016- |
| SUZUKI | SX4 S-CROSS (JY) 1.0 AllGrip (AKK 310) | K10C-T | 08.2016- |
| SUZUKI | SX4 S-CROSS (JY) 1.4 T (AKK414) | K14C | 08.2016- |
| SUZUKI | SX4 S-CROSS (JY) 1.4 T AllGrip (AKK414) | K14C | 08.2016- |
| SUZUKI | VITARA (LY) 1.0 AllGrip (APK 310) | K10C-T | 10.2018- |
| SUZUKI | VITARA (LY) 1.0 (APK 310) | K10C-T | 10.2018- |
| SUZUKI | VITARA (LY) 1.4 T AllGrip (APK414) | K14C | 09.2015- |
| SUZUKI | VITARA (LY) 1.4 T (APK414) | K14C | 09.2015- |
| SUZUKI | VITARA (LY) 1.6 AllGrip (APK 416) | M16A | 02.2015- |
| SUZUKI | VITARA (LY) 1.6 AllGrip (APK416, YE21S) | M16A | 05.2015- |
| SUZUKI | VITARA (LY) 1.6 (APK 416) | M16A | 02.2015- |
| SUZUKI | VITARA (LY) 1.6 (APK416, YD21S) | M16A | 05.2015- |
