Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 308.81 including GST
NZ$ 268.53 excluding GST
or four payments of $77.20
with
Learn More
UOM:
each
Product Code:
S3285S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

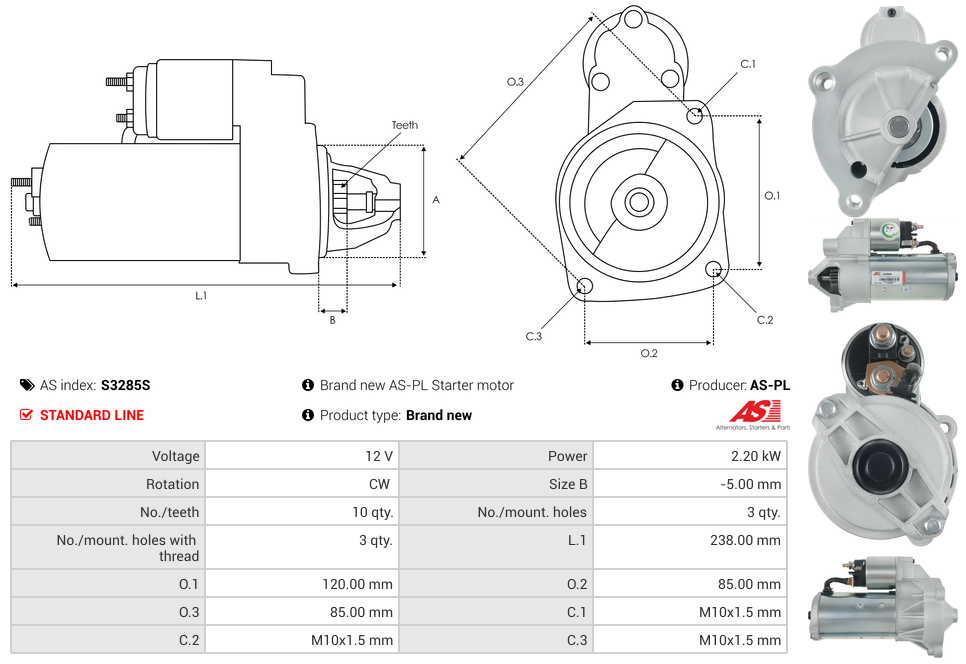

Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 238.00 mm |
| Mount Hole Center - Center (O.1) | 120.00 mm |
| Mount Hole Center - Center (O.2) | 85.00 mm |
| Mount Hole Center - Center (O.3) | 85.00 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | -5.00 mm |
| Rotation | CW |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROËN | JUMPER I Bus (230P) 2.5 D | T9A(DJ5) | 08.1994-04.2002 |
| CITROËN | JUMPER I Bus (230P) 2.5 D 4x4 | T9A(DJ5) | 08.1996-04.2002 |
| CITROËN | JUMPER I Bus (230P) 2.5 TD | T8A(DJ5T) | 08.1994-04.2002 |
| CITROËN | JUMPER I Bus (230P) 2.5 TD 4x4 | T8A(DJ5T) | 08.1996-04.2002 |
| CITROËN | JUMPER I Bus (230P) 2.5 TDi | THX(DJ5TED) | 12.1996-11.2000 |
| CITROËN | JUMPER I Bus (230P) 2.5 TDI 4x4 | THX(DJ5TED) | 12.1996-11.2000 |
| CITROËN | JUMPER I Platform/Chassis (230) 2.5 D | T9A(DJ5) | 03.1994-04.2002 |
| CITROËN | JUMPER I Platform/Chassis (230) 2.5 D 4x4 | T9A(DJ5) | 03.2000-04.2002 |
| CITROËN | JUMPER I Platform/Chassis (230) 2.5 TD | T8A(DJ5T) | 03.1994-04.2002 |
| CITROËN | JUMPER I Platform/Chassis (230) 2.5 TDi | THX(DJ5TED) | 12.1996-04.2002 |
| CITROËN | JUMPER I Platform/Chassis (230) 2.5 TDi 4x4 | THX(DJ5TED) | 03.2000-04.2002 |
| CITROËN | JUMPER I Van (230L) 2.5 D | T9A(DJ5) | 03.1994-04.2002 |
| CITROËN | JUMPER I Van (230L) 2.5 D 4x4 | T9A(DJ5) | 03.2000-04.2002 |
| CITROËN | JUMPER I Van (230L) 2.5 DT 4x4 | THZ(DJ5T) | 10.1996-08.1997 |
| CITROËN | JUMPER I Van (230L) 2.5 TD | T8A(DJ5T) | 03.1994-04.2002 |
| CITROËN | JUMPER I Van (230L) 2.5 TDi | THX(DJ5TED) | 12.1996-11.2000 |
| CITROËN | JUMPER I Van (230L) 2.5 TDi 4x4 | THX(DJ5TED) | 03.2000-11.2000 |
| CITROËN | XM Break (Y4) 2.5 TD | THY(DK5ATE) | 05.1994-10.2000 |
| CITROËN | XM (Y4) 2.5 TD | THY(DK5ATE) | 05.1994-10.2000 |
| PEUGEOT | 605 (6B) 2.5 Turbo Diesel | THY(DK5ATE) | 07.1994-09.1999 |
| PEUGEOT | BOXER Bus (230P) 2.5 D | T9A(DJ5) | 08.1994-04.2002 |
| PEUGEOT | BOXER Bus (230P) 2.5 D 4x4 | T9A(DJ5) | 07.1996-04.2002 |
| PEUGEOT | BOXER Bus (230P) 2.5 TD | T8A(DJ5T) | 07.1994-12.1997 |
| PEUGEOT | BOXER Bus (230P) 2.5 TD 4x4 | T8A(DJ5T) | 07.1996-04.2002 |
| PEUGEOT | BOXER Bus (230P) 2.5 TDI | THX(DJ5TED) | 01.1997-04.2002 |
| PEUGEOT | BOXER Bus (230P) 2.5 TDI 4x4 | THX(DJ5TED) | 01.1997-04.2002 |
| PEUGEOT | BOXER Platform/Chassis (ZCT_) 2.5 D | T9A(DJ5) | 03.1994-04.2002 |
| PEUGEOT | BOXER Platform/Chassis (ZCT_) 2.5 D 4x4 | T9A(DJ5) | 07.1999-04.2002 |
| PEUGEOT | BOXER Platform/Chassis (ZCT_) 2.5 TD | T8A(DJ5T) | 03.1994-12.1997 |
| PEUGEOT | BOXER Platform/Chassis (ZCT_) 2.5 TDI | THX(DJ5TED) | 01.1997-04.2002 |
| PEUGEOT | BOXER Platform/Chassis (ZCT_) 2.5 TDI 4x4 | THX(DJ5TED) | 07.1999-04.2002 |
| PEUGEOT | BOXER Van (230L) 2.5 D | T9A(DJ5) | 03.1994-04.2002 |
| PEUGEOT | BOXER Van (230L) 2.5 D 4x4 | T9A(DJ5) | 07.1999-04.2002 |
| PEUGEOT | BOXER Van (230L) 2.5 TD | T8A(DJ5T) | 03.1994-03.2002 |
| PEUGEOT | BOXER Van (230L) 2.5 TDI | THX(DJ5TED) | 01.1997-04.2002 |
| PEUGEOT | BOXER Van (230L) 2.5 TDI 4x4 | THX(DJ5TED) | 07.1999-04.2002 |
