Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 319.38 including GST
NZ$ 277.72 excluding GST
or four payments of $79.85
with
Learn More
UOM:
each
Product Code:
S01147S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

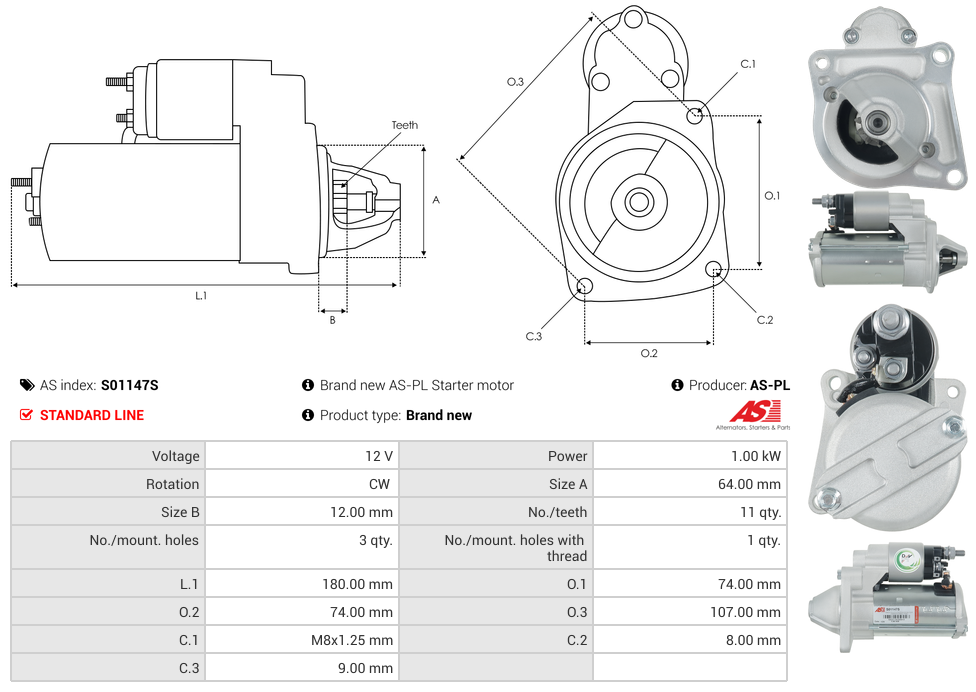

Specifications
| Kilowatt | 1.00 kW |
| Length (L.1) | 180.00 mm |
| Mount Hole Center - Center (O.1) | 74.00 mm |
| Mount Hole Center - Center (O.2) | 107.00 mm |
| Mount Hole Center - Center (O.3) | 74.00 mm |
| Mount Hole Diameter (C.1) | 8.00 mm |
| Mount Hole Diameter (C.2) | 9.00 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 12.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 64.00 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 (312_) 1.4 (312AXC1B) | 310A2.011 | 09.2011- |
| FIAT | DOBLO MPV (119_, 223_) 1.4 Flex (1191071, 1193071, 1197071, 11970U1) | 310A2.011 | 11.2009-08.2016 |
| FIAT | FIORINO Box Body/MPV (265_) 1.4 (265122) | 327A.011 | 05.2014- |
| FIAT | GRAND SIENA (372_, 197) 1.4 Flex | 310A2.011 | 03.2012-12.2021 |
| FIAT | PALIO (26_, 27_, 28_) 1.4 Flex (196) | 327A.011 | 11.2011-12.2017 |
| FIAT | PUNTO (199_) 1.4 Flex | 310A2.011 | 01.2012- |
| FIAT | UNO (195_) 1.4 Flex (1951630) | 327A.011 | 05.2010- |
