Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 782.71 including GST
NZ$ 680.62 excluding GST
or four payments of $195.68
with
Learn More
UOM:
each
Product Code:
S01142S
No stock in NZ currently
No stock in NZ currently

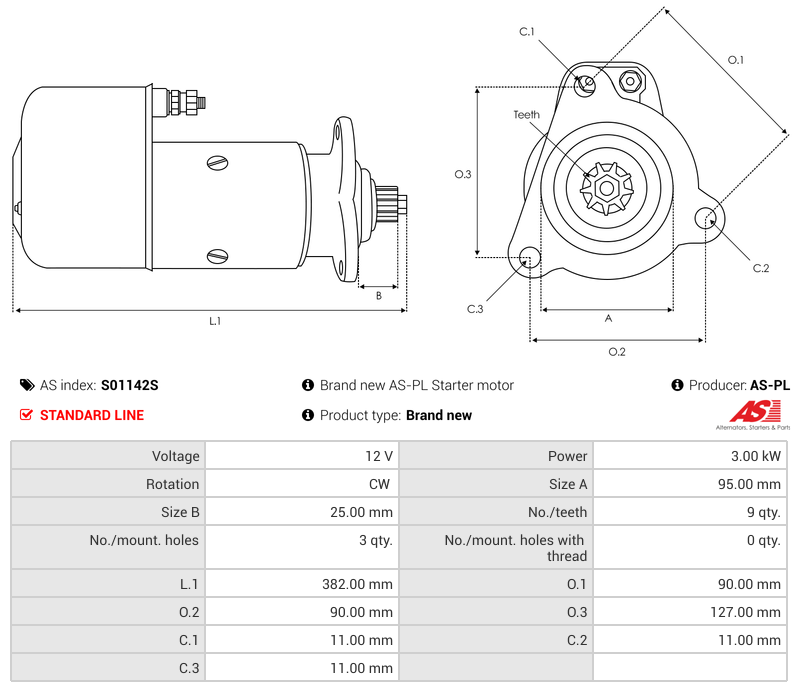

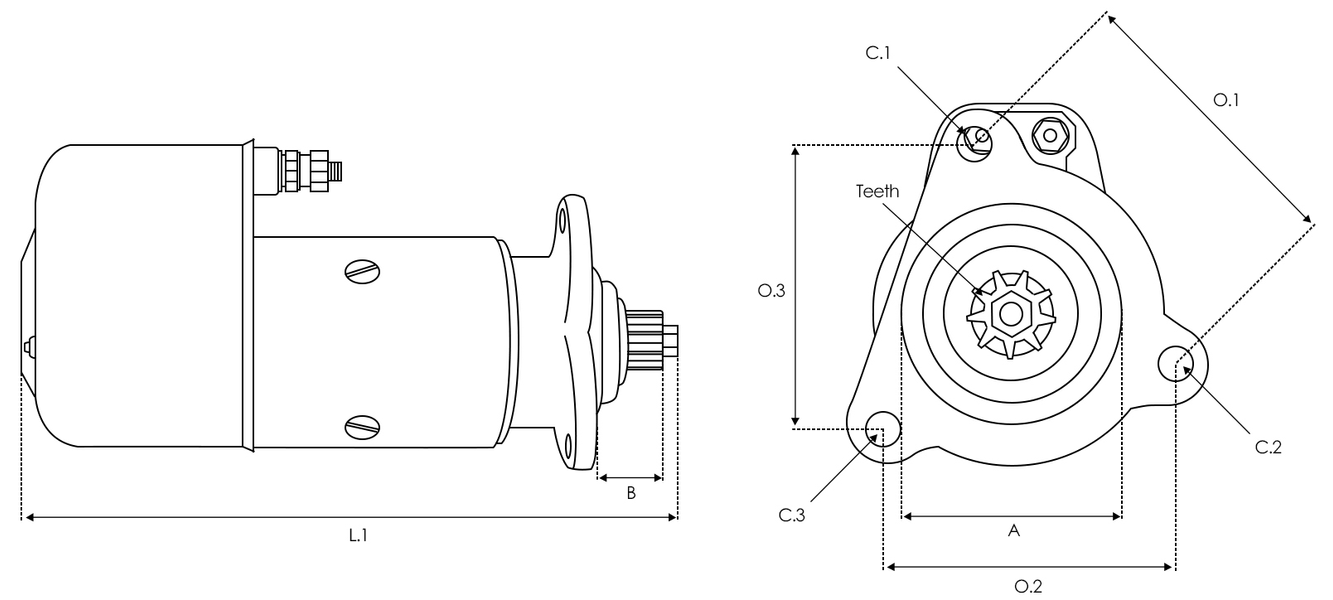

Specifications
| Kilowatt | 3.00 kW |
| Length (L.1) | 382.00 mm |
| Mount Hole Center - Center (O.1) | 90.00 mm |
| Mount Hole Center - Center (O.2) | 90.00 mm |
| Mount Hole Center - Center (O.3) | 127.00 mm |
| Mount Hole Diameter (C.1) | 11.00 mm |
| Mount Hole Diameter (C.2) | 11.00 mm |
| Mount Hole Diameter (C.3) | 11.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 25.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 95.00 mm |
| Voltage | 12 V |
