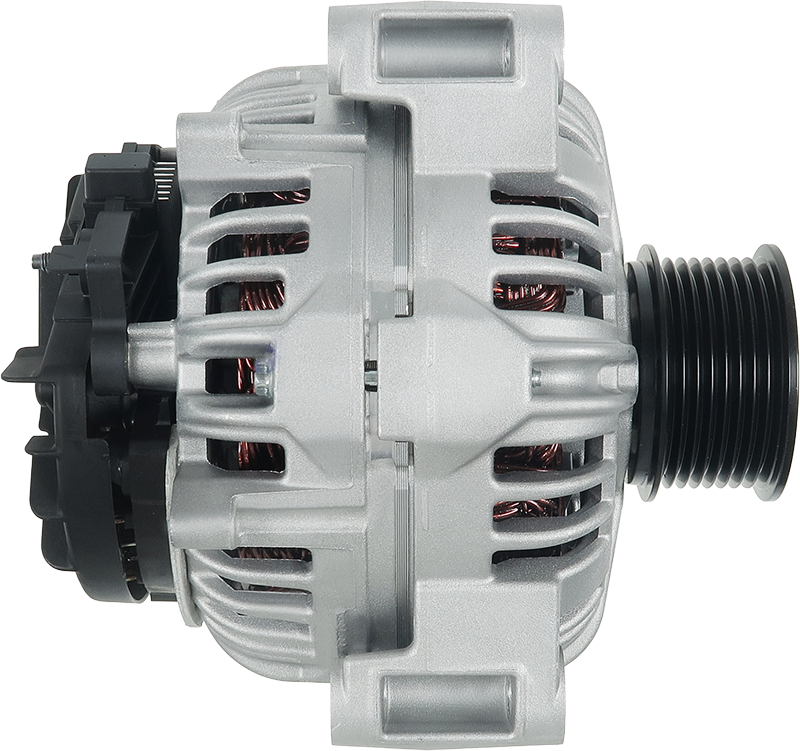

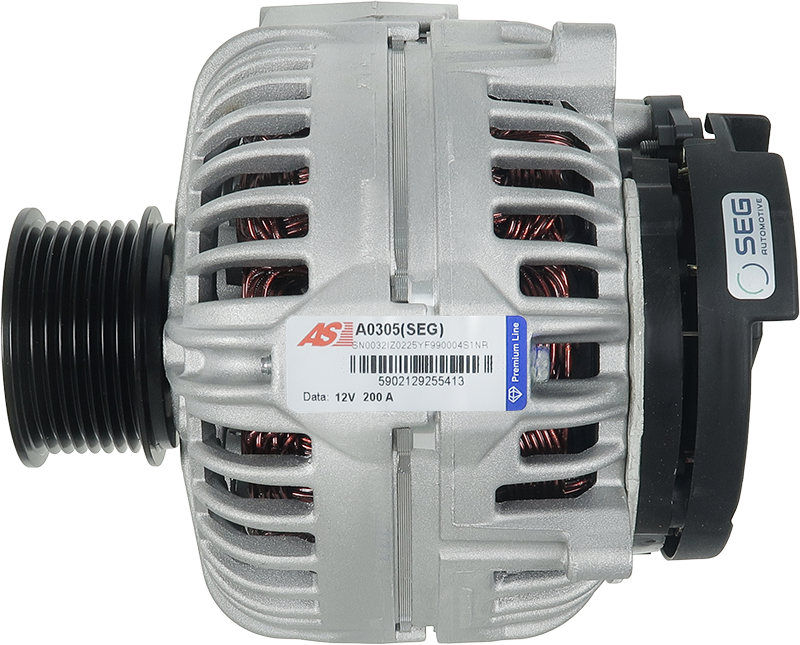

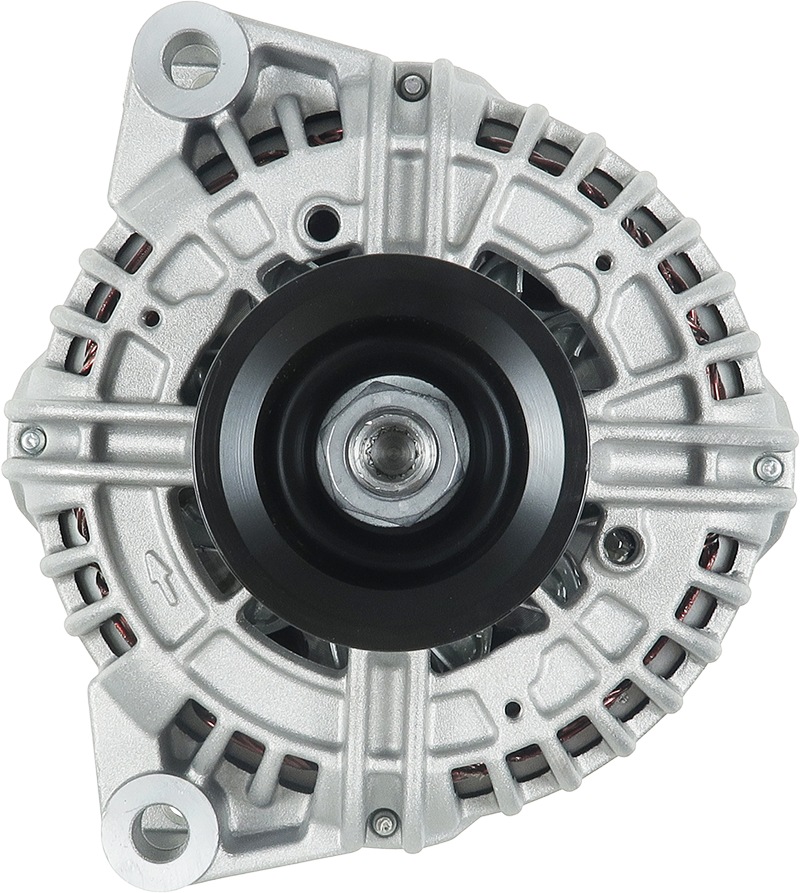

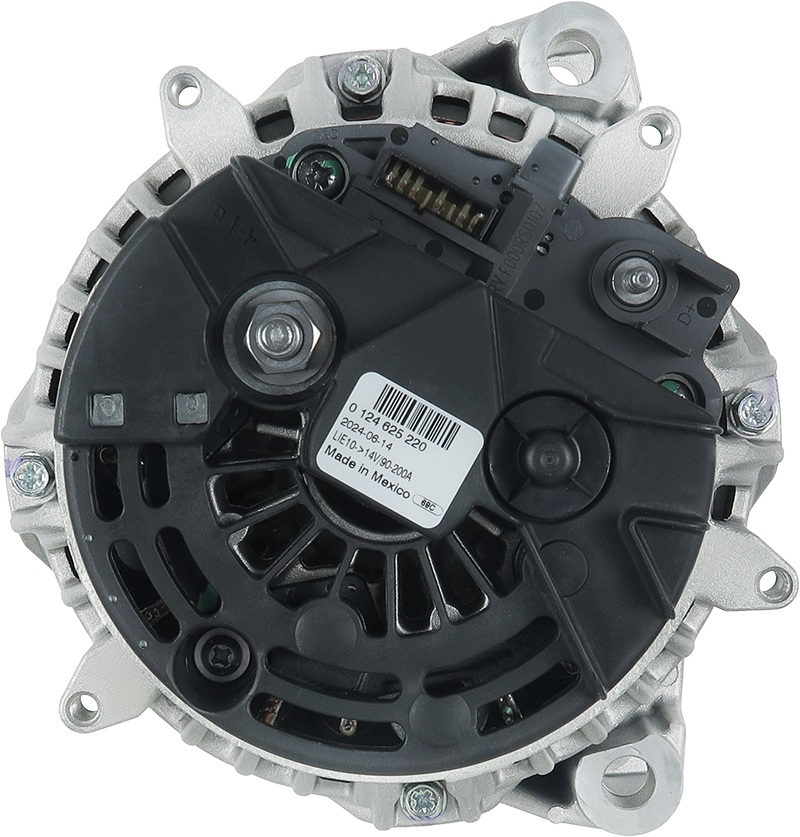

Brand new AS-PL Alternator
PREMIUM LINE
SEG Automotive
BOSCH
Price:
NZ$ 1,566.04 including GST
NZ$ 1,361.77 excluding GST
or four payments of $391.51
with
Learn More
UOM:
each
Product Code:
A0305(SEG)
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 200 A |
| Bottom Mounting Foot Width (B) | 56.00 mm |
| Diameter (D.1) | 11.00 mm |
| Diameter (D.2) | 11.00 mm |
| Length (L.1) | 202.00 mm |
| Plug Code | PL_9104 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.2) | 62.00 mm |
| Pulley to Mount Distance (A) | 86.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | Series 7030 7430 | 01.2007- | |
| JOHN DEERE | Series 7030 7530 | 01.2007- | |
| JOHN DEERE | Series 7030 7730 | 01.2007- | |
| JOHN DEERE | Series 7030 7830 | 01.2007- | |
| JOHN DEERE | Series 7030 7930 | 01.2007- | |
| JOHN DEERE | Series 7 7230R | 05.2011- | |
| JOHN DEERE | Series 7 7270R, 7280R | 6090RW401 | 10.2011- |
| JOHN DEERE | Series 7 7270R, 7280R | 6090RW402 | 10.2011- |
| JOHN DEERE | Series 7 7270R, 7280R | 6090RW447 | 10.2011- |
| JOHN DEERE | Series 8030 8130 | 01.2006-12.2009 | |
| JOHN DEERE | Series 8030 8130 | 01.2006-12.2009 | |
| JOHN DEERE | Series 8030 8230 | 01.2006-12.2009 | |
| JOHN DEERE | Series 8030 8330 | 01.2006-12.2009 | |
| JOHN DEERE | Series 8030 8430 | 01.2006-12.2009 | |
| JOHN DEERE | Series 8030 8530 | 01.2006-12.2009 | |
| JOHN DEERE | Series 8 8260R, 8270R | 11.2011- | |
| JOHN DEERE | Series 8 8285R, 8295R | 11.2011- | |
| JOHN DEERE | Series 8 8310R, 8320R | 11.2011- | |
| JOHN DEERE | Series 8 8335R, 8345R | 11.2011- | |
| JOHN DEERE | Series 8 8360R, 8370R | 11.2011- |
Reference Information
| 0124625029 | BOSCH |
| 0124625107 | BOSCH |
| 0124625108 | BOSCH |
| 0124625220 | BOSCH |
| 12201453 | AES |
| 12795N | WAI |
| 12795R | WAI |
| 160-55114 | DIXIE |
| 1986A00955 | BOSCH |
| 1986A01174 | BOSCH |
| 20010414AV | ITAB AUTOMOTIVE |
| 20010414OV | ITAB AUTOMOTIVE |
| 20101414BN | REAL |
| 20101414OE | REAL |
| 2010414.0 | SANDO |
| 2010414.1 | SANDO |
| 209060 | ERA |
| 220-30135 | ROBERT'S |
| 220-30135NOE | ROBERT'S |
| 28-7608 | ELSTOCK |
| 441939 | LOGISTIK |
| 5510752 | MEAT & DORIA |
| 553404RI | KUHNER |
| 553404RIB | KUHNER |
| 553404RIK | KUHNER |
| 635.520.200.010 | WAI |
| 635.520.200.014 | WAI |
| 635.520.200.018 | WAI |
| 635.520.200.211 | WAI |
| 635.520.200.281 | WAI |
| 635.520.200.440 | WAI |
| 89215493 | POWERMAX |
| 90-15-6638 | WILSON |
| A12BH1065 | SIDAT |
| A12BH1065AS | SIDAT |
| A134.093 | WAI |
| A146.890 | WAI |
| A-6596 | DIXIE |
| A6596 | DIXIE |
| AG2128 | GHIBAUDI |
| AL5058N | BOSCH |
| AL5058X | BOSCH |
| ALB3029 | KRAUF |
| ALT10296 | ELECTROLOG |
| ALT10721 | WOODAUTO |
| ALT12414 | SIOM |
| ALT124140 | SIOM |
| ALT124140A | SIOM |
| ALT1441 | ELECTROLOG |
| ALTL678 | 3EFFE |
| BOS0124625029 | WOODAUTO |
| CAL10414AS | CASCO |
| CAL10414GS | CASCO |
| CGB-87608 | AINDE |
| F00E100154 | BOSCH |
| F00E100645 | BOSCH |
| F032114211 | CARGO |
| G100725 | BTS TURBO |
| G101062 | BTS TURBO |
| G101328 | BTS TURBO |
| LRA03998 | LUCAS |
| LRA3998 | LUCAS |
| PRAL678 | 3EFFE |
| RE210793 | JOHN DEERE |
| RE555751 | JOHN DEERE |
| RNL625029 | RNL |
| SE501834 | JOHN DEERE |
| UD04856(SEG)A | AS-PL |
| UD04880(SEG)A | AS-PL |
| WOOALT10721 | WOODAUTO |
