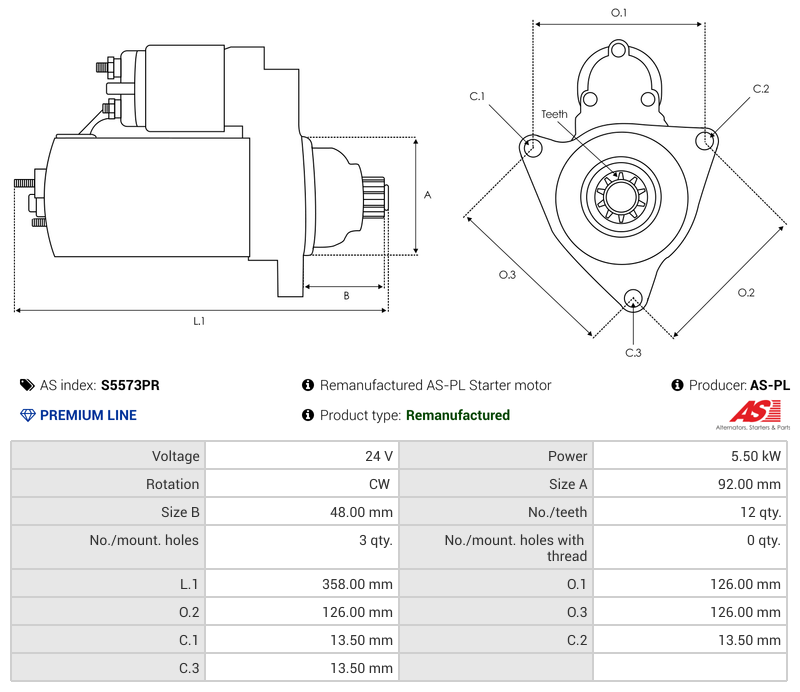

Specifications
| Kilowatt | 5.50 kW |
| Length (L.1) | 358.00 mm |
| Mount Hole Center - Center (O.1) | 126.00 mm |
| Mount Hole Center - Center (O.2) | 126.00 mm |
| Mount Hole Center - Center (O.3) | 126.00 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 48.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92.00 mm |
| Voltage | 24 V |
