Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 508.40 including GST
NZ$ 442.09 excluding GST
or four payments of $127.10
with
Learn More
UOM:
each
Product Code:
S1312S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

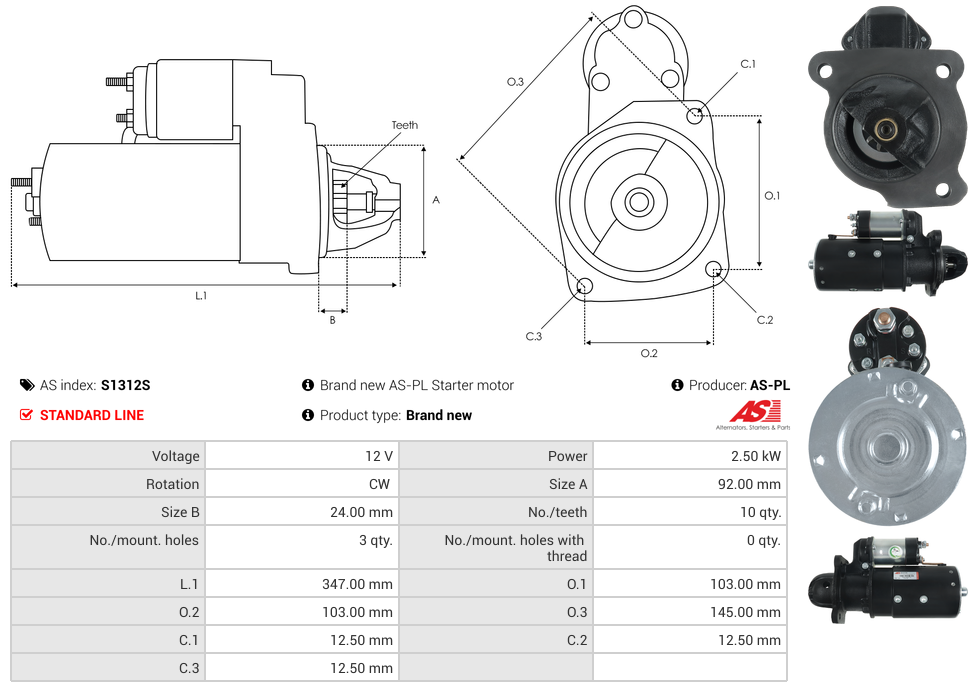

Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 347.00 mm |
| Mount Hole Center - Center (O.1) | 103.00 mm |
| Mount Hole Center - Center (O.2) | 103.00 mm |
| Mount Hole Center - Center (O.3) | 145.00 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| Mount Hole Diameter (C.3) | 12.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 24.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92.00 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | MF 235 2.5 | AD3-152 | 01.1974-12.1976 |
| MASSEY FERGUSON | MF 245 2.5 | AD2-152 | 01.1977-12.1980 |
| MASSEY FERGUSON | MF 255 3.3 | 4-203 | 01.1975-12.1976 |
| MASSEY FERGUSON | MF 255 3.9 | AD4-236 | 01.1977-12.1980 |
| MASSEY FERGUSON | MF 30E 2.5 | AD3-152 | 01.1986-12.1992 |
| MASSEY FERGUSON | MF 40E 2.5 | AT3-152 | 01.1987-12.1992 |
| MASSEY FERGUSON | MF 50C 3.9 | AD4-236 | 01.1978-12.1980 |
| MASSEY FERGUSON | MF 50U 3.3 | AD4-203 | 01.1976-12.1977 |
Video/Publications
10MT 5MT 8MTView your shopping basket or Browse other items in Starter Motors.
