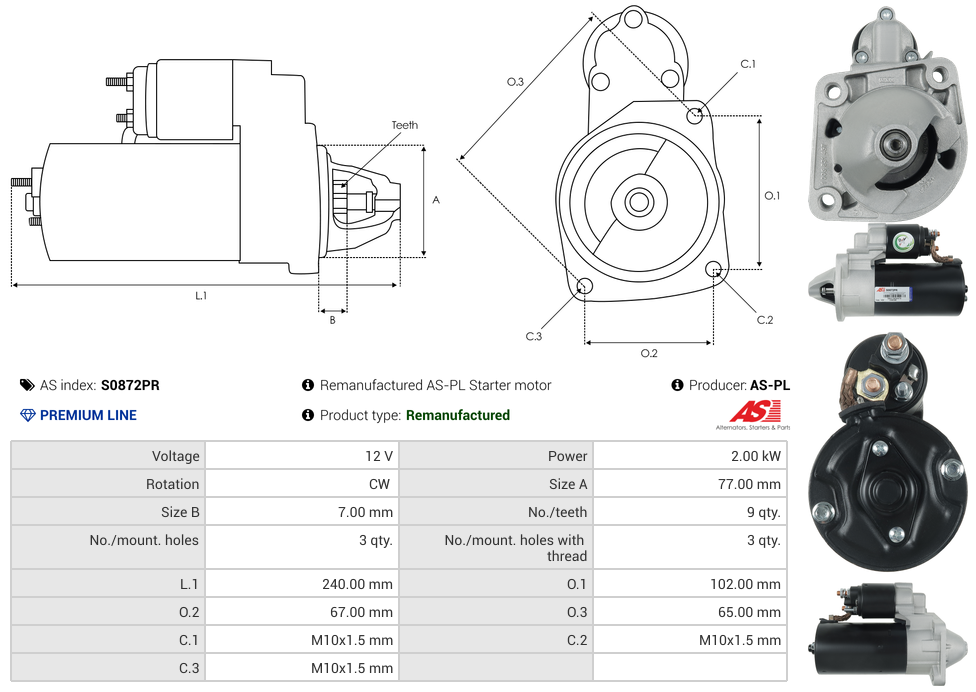

Specifications
| Kilowatt | 2.00 kW |
| Length (L.1) | 240.00 mm |
| Mount Hole Center - Center (O.1) | 102.00 mm |
| Mount Hole Center - Center (O.2) | 67.00 mm |
| Mount Hole Center - Center (O.3) | 65.00 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 3 qty |
| Pinion at Rest (B) | 7.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 77.00 mm |
| Voltage | 12 V |
