Brand new AS-PL Alternator
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 79.47 including GST
NZ$ 69.10 excluding GST
or four payments of $19.87
with
Learn More
UOM:
each
Product Code:
SS4072P
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

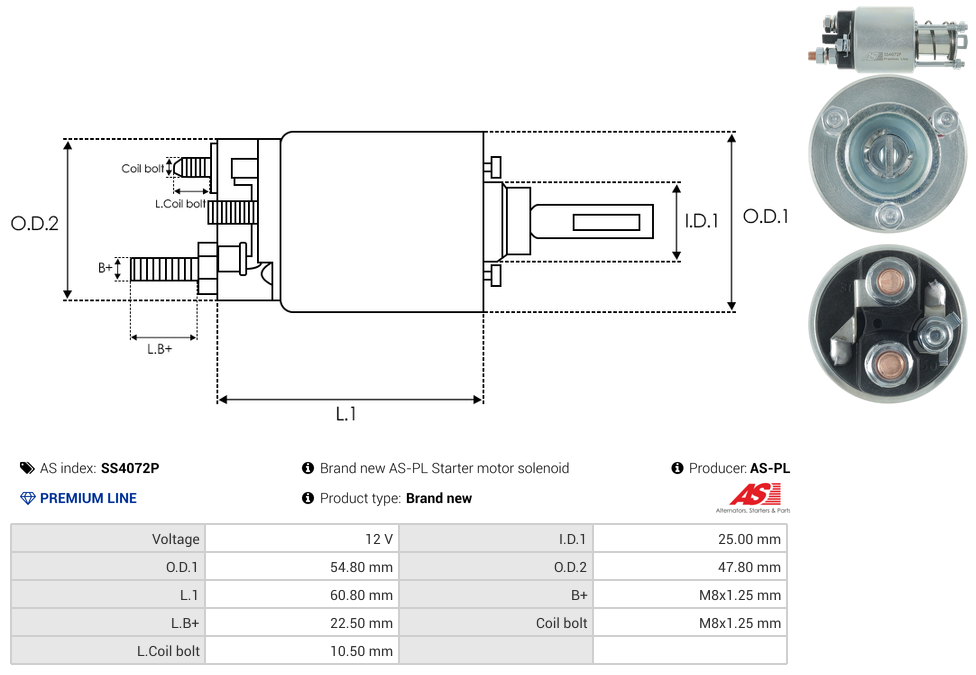

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 10.50 mm |
| Inside Diameter (I.D.1) | 25.00 mm |
| L.B+ | 22.50 mm |
| Length (L.1) | 60.80 mm |
| Outside Diameter (O.D.1) | 54.80 mm |
| Outside Diameter (O.D.2) | 47.80 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Video/Publications
63222936 63222889 63222888 63111005 63102004 63201008 63101015 63103015 63222909 63101002 63102003 63223108 63223109 63101000 63102020 63101018 63102008 63223200 63101008 63102007 S4015 S4028View your shopping basket or Browse other items in Starter Solenoid.
