Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 499.10 including GST
NZ$ 434.00 excluding GST
or four payments of $124.78
with
Learn More
UOM:
each
Product Code:
S9916S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

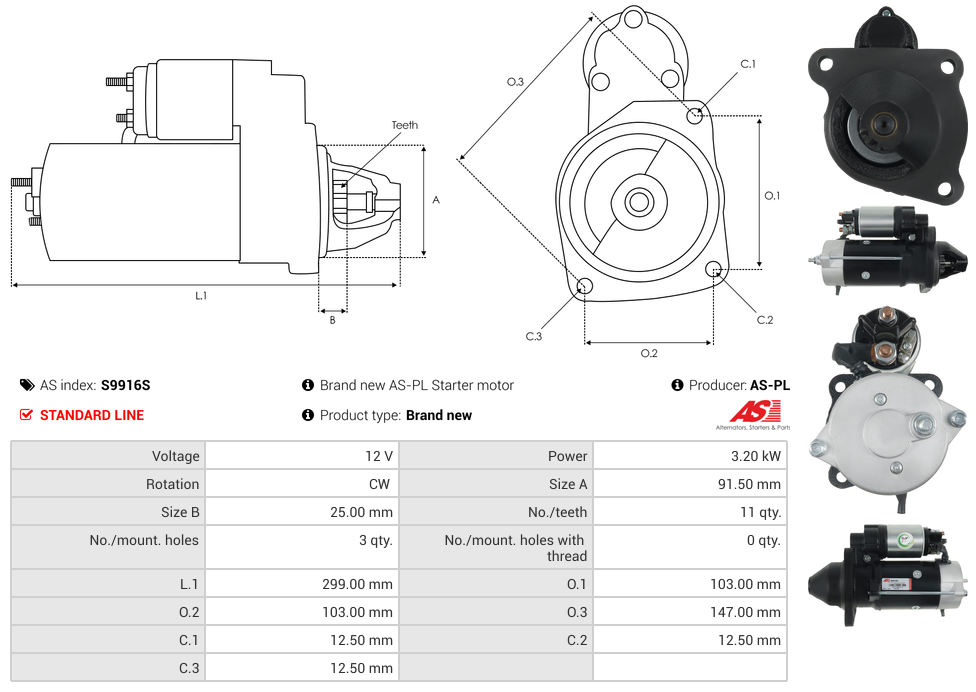

Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 299.00 mm |
| Mount Hole Center - Center (O.1) | 103.00 mm |
| Mount Hole Center - Center (O.2) | 103.00 mm |
| Mount Hole Center - Center (O.3) | 147.00 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| Mount Hole Diameter (C.3) | 12.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 25.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 91.50 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 1200 | A4155A | - |
| CASE | 1210 | 4-219 | 01.1972-01.1981 |
| CASE | 1210 | 455009 | - |
| CASE | 1212 | 4-219 | 01.1972-01.1983 |
| CASE | 1212 | 455031 | - |
| CASE | 1290 | 2200004 | - |
| CASE | 1290 | 4-195 | 01.1980-01.1983 |
| CASE | 1294 | 220008 | - |
| CASE | 1294 | 4-219 | 01.1984- |
| CASE | 1390 | 2200002 | - |
| CASE | 1390 | 4-219 | 01.1980-01.1983 |
| CASE | 1394 | 220103 | - |
| CASE | 1410 | 4-219 | 01.1975-01.1981 |
| CASE | 1412 | 4-219 | 01.1975-01.1981 |
| CASE | 1490 | 220101 | - |
| CASE | 1490 | 4-219 | 01.1980-01.1983 |
| CASE | 1494 | 220105 | - |
| CASE | 2276 | 01.1982- | |
| CASE | 990 | 449001 | - |
