Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 578.16 including GST
NZ$ 502.75 excluding GST
or four payments of $144.54
with
Learn More
UOM:
each
Product Code:
S6662S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

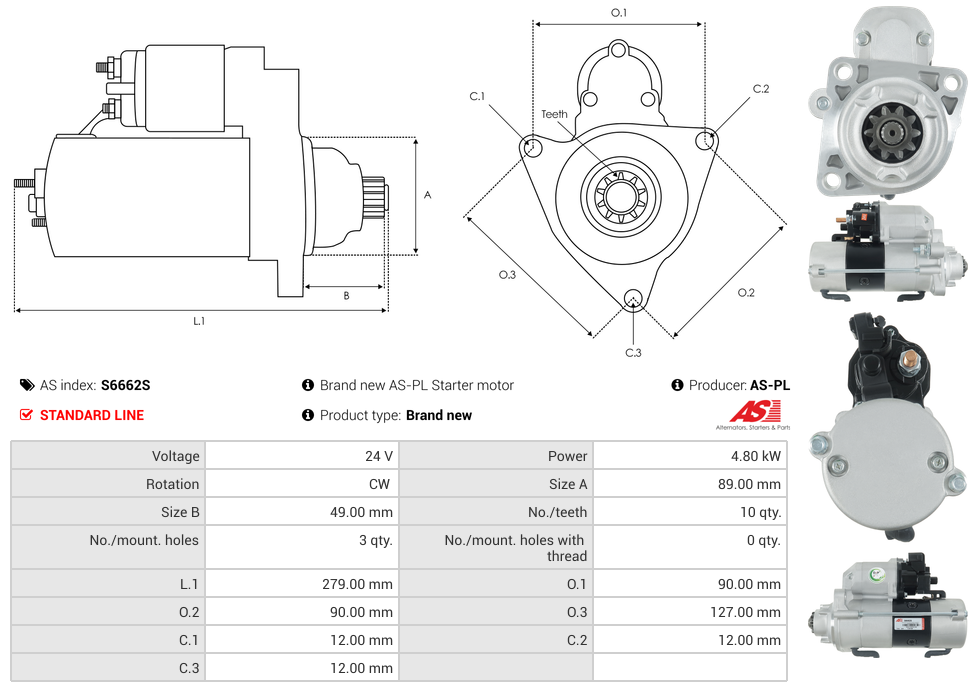

Specifications
| Kilowatt | 4.80 kW |
| Length (L.1) | 279.00 mm |
| Mount Hole Center - Center (O.1) | 90.00 mm |
| Mount Hole Center - Center (O.2) | 90.00 mm |
| Mount Hole Center - Center (O.3) | 127.00 mm |
| Mount Hole Diameter (C.1) | 12.00 mm |
| Mount Hole Diameter (C.2) | 12.00 mm |
| Mount Hole Diameter (C.3) | 12.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 49.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89.00 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HDW56 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HDW58 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HFC92 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HFC93 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HFC95 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HL490 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HL495 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HL496 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HL497 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HLV68 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HLV69 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5085E 4.5 | 4045HLV70 | 01.2013-12.2017 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HFC92 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HFC93 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HFC95 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HLV73 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HLV74 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HLV79 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HMC85 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5090E 4.5 | 4045HMC92 | 01.2015-12.2021 |
| JOHN DEERE | Series 5E 5093E 4.5 | 4045HL280 | 01.2008-12.2012 |
| JOHN DEERE | Series 5E 5093E 4.5 | 4045HL285 | 01.2008-12.2012 |
| JOHN DEERE | Series 5E 5093E 4.5 | 4045HL287 | 01.2008-12.2012 |
