Brand new AS-PL Alternator
PREMIUM LINE
AS-PL
MITSUBISHI
Price:
NZ$ 234.26 including GST
NZ$ 203.70 excluding GST
or four payments of $58.57
with
Learn More
UOM:
each
Product Code:
S5259PR
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

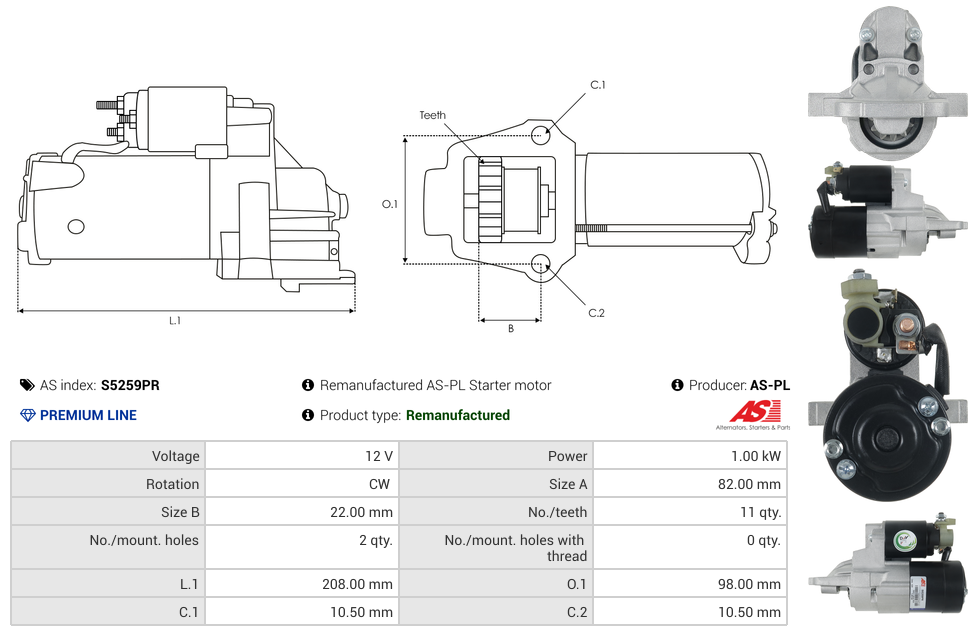

Specifications
| Kilowatt | 1.00 kW |
| Length (L.1) | 208.00 mm |
| Mount Hole Center - Center (O.1) | 98.00 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 22.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 82.00 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 3 (BK) 2.0 (BKEP) | LF50 | 10.2003-12.2009 |
| MAZDA | 3 (BK) 2.0 (BKEP) | LF72 | 10.2003-12.2009 |
| MAZDA | 3 (BK) 2.0 (BKEP) | LF-DE | 10.2003-12.2009 |
| MAZDA | 3 (BK) 2.0 (BKEP) | LFN7 | 10.2003-12.2009 |
| MAZDA | 3 (BK) 2.0 (BKEP) | LFN8 | 10.2003-12.2009 |
| MAZDA | 3 (BK) 2.0 (BKEP) | LF-VE | 10.2003-12.2009 |
| MAZDA | 3 (BK) 2.3 MPS Turbo (BK14) | L3M6 | 12.2006-06.2009 |
| MAZDA | 3 (BK) 2.3 MPS Turbo (BK14) | L3-VDT | 12.2006-06.2009 |
| MAZDA | 3 (BL) 2.3 MPS Turbo (BL14) | L3-VDT | 12.2008-09.2014 |
| MAZDA | 3 (BL) 2.3 MPS Turbo (BL14) | L3Y7 | 12.2008-09.2014 |
| MAZDA | 3 Saloon (BK) 2.0 (BKEP) | LF50 | 10.2003-12.2009 |
| MAZDA | 3 Saloon (BK) 2.0 (BKEP) | LF72 | 10.2003-12.2009 |
| MAZDA | 3 Saloon (BK) 2.0 (BKEP) | LF-DE | 10.2003-12.2009 |
| MAZDA | 3 Saloon (BK) 2.0 (BKEP) | LFN7 | 10.2003-12.2009 |
| MAZDA | 3 Saloon (BK) 2.0 (BKEP) | LFN8 | 10.2003-12.2009 |
| MAZDA | 3 Saloon (BK) 2.0 (BKEP) | LF-VE | 10.2003-12.2009 |
| MAZDA | 5 (CR) 1.8 (CR19) | L823 | 02.2005-05.2010 |
| MAZDA | 5 (CR) 1.8 (CR19) | L8-VE | 02.2005-05.2010 |
| MAZDA | 5 (CR) 2.0 (CREW) | LF-DE | 02.2005-05.2010 |
| MAZDA | 5 (CR) 2.0 (CREW) | LFF7 | 02.2005-05.2010 |
| MAZDA | 6 Estate (GH) 1.8 MZR | L813 | 02.2008-07.2013 |
| MAZDA | 6 Estate (GH) 1.8 MZR | L8-DE | 02.2008-07.2013 |
| MAZDA | 6 Estate (GH) 2.5 MZR (GH5FW) | L5-VE | 02.2008-07.2013 |
| MAZDA | 6 Hatchback (GG) 1.8 | L813 | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 1.8 | L8-VE | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 DI (GG14) | RF7J | 06.2005-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 (GGES) | LF17 | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 (GGES) | LF18 | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 (GGES) | LF-DE | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 (GGES) | LFF7 | 03.2005-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.0 (GGES) | LF-VE | 03.2005-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.3 (GG3S) | L3C1 | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GG) 2.3 (GG3S) | L3-VE | 08.2002-08.2007 |
| MAZDA | 6 Hatchback (GH) 1.8 MZR | L813 | 08.2007-07.2013 |
| MAZDA | 6 Hatchback (GH) 1.8 MZR | L8-DE | 08.2007-07.2013 |
| MAZDA | 6 Hatchback (GH) 2.5 MZR (GH5FS) | L5-VE | 08.2007-03.2013 |
| MAZDA | 6 Saloon (GG) 1.8 | L813 | 08.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 1.8 | L829 | 08.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 1.8 | L8-DE | 08.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 DI (GG14) | RF7J | 06.2005-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 (GGEP, GG10) | LF17 | 06.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 (GGEP, GG10) | LF18 | 06.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 (GGEP, GG10) | LF-DE | 06.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 (GGEP, GG10) | LFF7 | 03.2005-08.2007 |
| MAZDA | 6 Saloon (GG) 2.0 (GGEP, GG10) | LF-VE | 03.2005-08.2007 |
| MAZDA | 6 Saloon (GG) 2.3 | L3C1 | 03.2005-07.2007 |
| MAZDA | 6 Saloon (GG) 2.3 (GG3P) | L3C1 | 06.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.3 (GG3P) | L3-VE | 06.2002-08.2007 |
| MAZDA | 6 Saloon (GG) 2.3 MPS Turbo (GG3P) | L3KG | 12.2005-08.2007 |
| MAZDA | 6 Saloon (GG) 2.3 MPS Turbo (GG3P) | L3-VDT | 12.2005-08.2007 |
| MAZDA | 6 Saloon (GH) 1.8 MZR | L813 | 08.2007-07.2013 |
| MAZDA | 6 Saloon (GH) 1.8 MZR | L8-DE | 08.2007-07.2013 |
| MAZDA | 6 Saloon (GH) 2.5 MZR (GH5FS, GH5FP) | L5-VE | 08.2007-07.2013 |
| MAZDA | 6 Station Wagon (GY) 1.8 | L813 | 08.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 1.8 | L8-DE | 08.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 DI (GY19) | RF7J | 06.2005-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 (GYEW) | LF17 | 08.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 (GYEW) | LF18 | 08.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 (GYEW) | LF-DE | 08.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 (GYEW) | LFF7 | 03.2005-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.0 (GYEW) | LF-VE | 03.2005-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.3 AWD (GY3W) | L3C1 | 11.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.3 AWD (GY3W) | L3-VE | 11.2002-08.2007 |
| MAZDA | 6 Station Wagon (GY) 2.3 (GY3W, GY10) | L3C1 | 01.2002-02.2008 |
| MAZDA | 6 Station Wagon (GY) 2.3 (GY3W, GY10) | L3-VE | 01.2002-02.2008 |
| MAZDA | CX-7 (ER) 2.3 DISi | L3K7 | 06.2006-06.2009 |
| MAZDA | CX-7 (ER) 2.3 MZR DISI Turbo AWD (ER103, ER3P) | L3-VDT | 06.2006-12.2014 |
| MAZDA | CX-7 (ER) 2.3 MZR DISI Turbo AWD (ER3P) | L3-VDT | 06.2009-03.2013 |
| MAZDA | CX-7 (ER) 2.3 MZR DISI Turbo AWD (ER3P) | L3-VDT | 10.2007-08.2009 |
| MAZDA | MPV II (LW) 2.3 (LW3W) | L3 | 07.2002-02.2006 |
| PROTON | SATRIA (C9_M) 1.5 (C97M) | 4G15 | 07.2000-05.2006 |
