Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 435.03 including GST
NZ$ 378.29 excluding GST
or four payments of $108.76
with
Learn More
UOM:
each
Product Code:
S1301S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

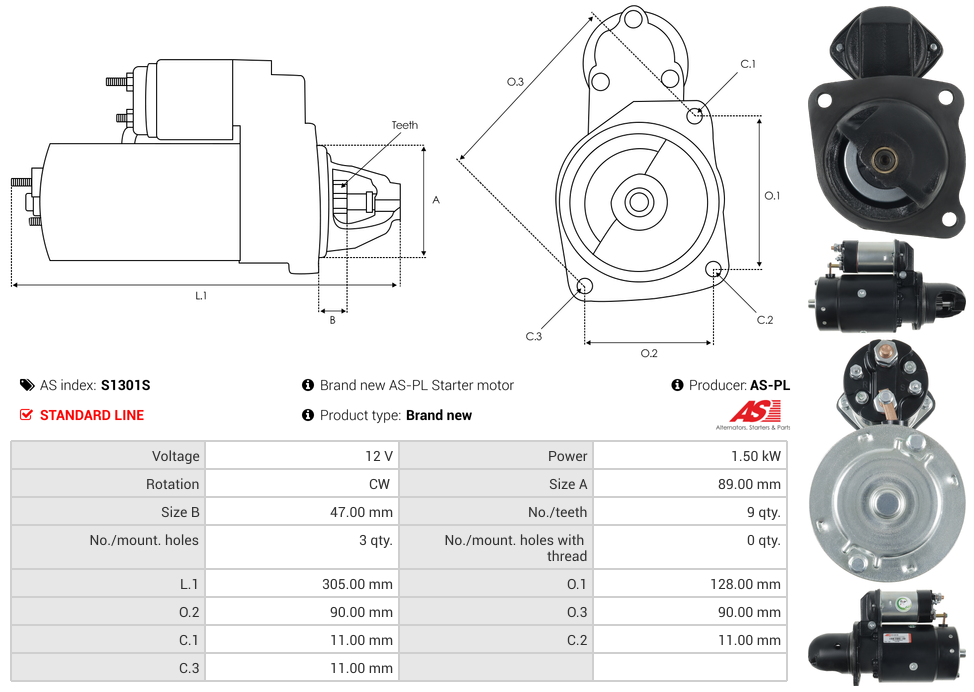

Specifications
| Kilowatt | 1.50 kW |
| Length (L.1) | 305.00 mm |
| Mount Hole Center - Center (O.1) | 128.00 mm |
| Mount Hole Center - Center (O.2) | 90.00 mm |
| Mount Hole Center - Center (O.3) | 90.00 mm |
| Mount Hole Diameter (C.1) | 11.00 mm |
| Mount Hole Diameter (C.2) | 11.00 mm |
| Mount Hole Diameter (C.3) | 11.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 47.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89.00 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALLIS CHALMERS | 180 | 2500 | 01.1969-12.1974 |
| ALLIS CHALMERS | 180 | 6-301 | 01.1969-12.1974 |
| ALLIS CHALMERS | 190 | 2500 | 01.1964-12.1966 |
| ALLIS CHALMERS | 190 | 6-265 | 01.1964-12.1972 |
| ALLIS CHALMERS | 190XT | 6-301 | 01.1964-12.1971 |
| ALLIS CHALMERS | 190XT | G-2800 | 01.1964-12.1971 |
| ALLIS CHALMERS | AC-C 100 | G-230 | 01.1974-12.1974 |
| ALLIS CHALMERS | AC-C 100C | G-230 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-C 120 | G-230 | 01.1974-12.1974 |
| ALLIS CHALMERS | AC-C 60 | G-230 | 01.1974-12.1974 |
| ALLIS CHALMERS | AC-C 60C | G-230 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-C 70 | G-230 | 01.1974-12.1974 |
| ALLIS CHALMERS | AC-C 70C | G-230 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-C 80 | G-230 | 01.1974-12.1974 |
| ALLIS CHALMERS | AC-G 100 | G-230 | 01.1973-12.1973 |
| ALLIS CHALMERS | AC-G 120 | G-230 | 01.1973-12.1973 |
| ALLIS CHALMERS | AC-G 60 | G-230 | 01.1973-12.1973 |
| ALLIS CHALMERS | AC-G 70 | G-230 | 01.1973-12.1973 |
| ALLIS CHALMERS | AC-G 80 | G-230 | 01.1973-12.1973 |
| ALLIS CHALMERS | AC-P 100 | G-262 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-P 120 | G-262 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-P 140 | G-262 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-P 60 | G-230 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-P 70 | G-230 | 01.1973-12.1974 |
| ALLIS CHALMERS | AC-P 80 | G-230 | 01.1973-12.1974 |
| ALLIS CHALMERS | G | 2800 | 01.1967-12.1970 |
| ALLIS CHALMERS | H-4 | 2000 | 01.1965-12.1968 |
| ALLIS CHALMERS | M65 | 226 | 01.1971-12.1973 |
| ALLIS CHALMERS | TL 545 | 2800 | 01.1965-12.1969 |
| ALLIS CHALMERS | TL-545H | 2800 | 01.1965-12.1969 |
| COCKSHUTT | 1350 | 01.1966-12.1969 | |
| COCKSHUTT | 1550 | 232 | 01.1966-12.1969 |
| MINNEAPOLIS-MOLINE | 336-4A | 01.1963-12.1972 | |
| MINNEAPOLIS-MOLINE | Jet Star 3 | 4-220 | 01.1965-12.1969 |
| MINNEAPOLIS-MOLINE | Jet Star 3 | 4-222 | 01.1970-12.1970 |
| MINNEAPOLIS-MOLINE | M-670 5.5 | 4-336 | 01.1965-12.1968 |
| MINNEAPOLIS-MOLINE | M-670 Super 5.5 | 4-336A | 01.1966-12.1970 |
| MINNEAPOLIS-MOLINE | MY-40 | 220A-4 | 01.1965-12.1968 |
| MINNEAPOLIS-MOLINE | MY-60 | 220A-4 | 01.1965-12.1968 |
| MINNEAPOLIS-MOLINE | U-302 | 220 | 01.1965-12.1969 |
| MINNEAPOLIS-MOLINE | U-302 | 4-222 | 01.1970-12.1970 |
| OLIVER | 1350 | 585 | 01.1966-12.1968 |
| WHITE | 336A-4A | 01.1969-12.1974 | |
| WHITE | MY-40 | 220 | 01.1969-12.1969 |
| WHITE | MY-40 | 4-220 | 01.1969-12.1972 |
| WHITE | MY-50 | 220 | 01.1969-12.1969 |
| WHITE | MY-50 | 4-220 | 01.1969-12.1972 |
| WHITE | MY-60 | 220 | 01.1969-12.1969 |
| WHITE | MY-60 | 4-220 | 01.1969-12.1972 |
| WHITE | MY-70 | 220 | 01.1969-12.1969 |
| WHITE | MY-70 | 4-220 | 01.1969-12.1972 |
Video/Publications
