Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 448.04 including GST
NZ$ 389.60 excluding GST
or four payments of $112.01
with
Learn More
UOM:
each
Product Code:
S01127S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

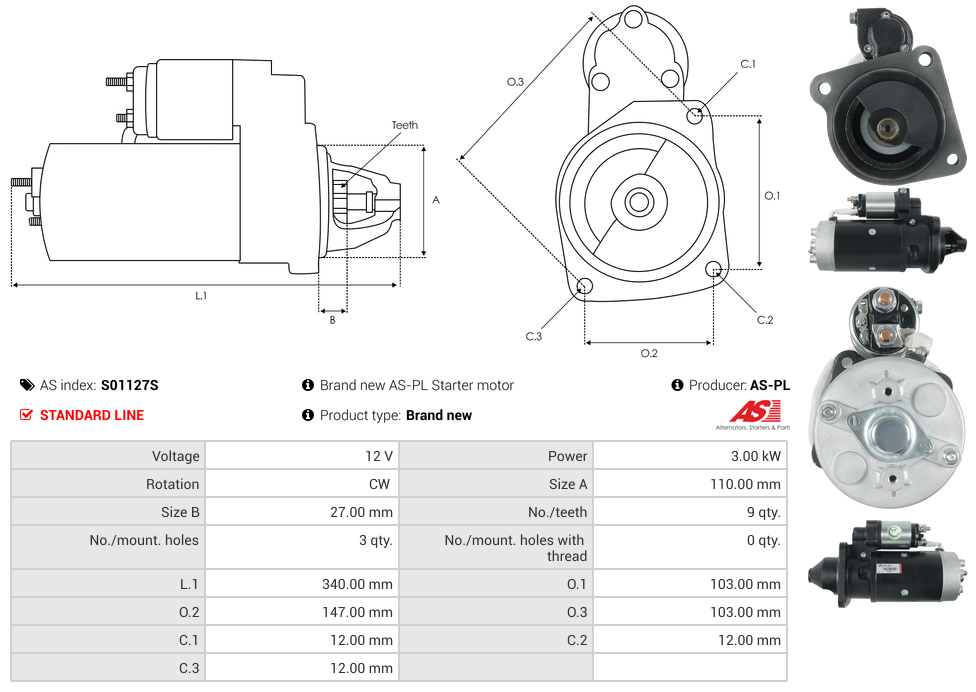

Specifications
| Kilowatt | 3.00 kW |
| Length (L.1) | 340.00 mm |
| Mount Hole Center - Center (O.1) | 103.00 mm |
| Mount Hole Center - Center (O.2) | 147.00 mm |
| Mount Hole Center - Center (O.3) | 103.00 mm |
| Mount Hole Diameter (C.1) | 12.00 mm |
| Mount Hole Diameter (C.2) | 12.00 mm |
| Mount Hole Diameter (C.3) | 12.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 27.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 110.00 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 1000 1000S | 8065.04.200 | 01.1976-12.1979 |
| FIAT | 1000 1180 | 8065.04.200 | 01.1979-12.1984 |
| FIAT | 1000 1180 | 8065.04.200 | 01.1979-12.1984 |
| FIAT | 1000 1280 | 8065.24.300 | 01.1979-12.1984 |
| FIAT | 1000 1280 | 8065.24.300 | 01.1979-12.1984 |
| FIAT | 1000 1380 | 8065.24.000 | 01.1979-12.1984 |
| FIAT | 1000 1380 | 8065.24.000 | 01.1979-12.1984 |
| FIAT | 1000 1580 | 8365.05.500 | 01.1979-12.1984 |
| FIAT | 1000 1580 | 8365.25.501 | 01.1979-12.1984 |
| FIAT | 1000 1580 | 8365.25.502 | 01.1979-12.1984 |
| FIAT | 1000 1580 | 8365.25.503 | 01.1979-12.1984 |
| FIAT | 1000 1880 | 8365.25.500 | 01.1979-12.1984 |
| FIAT | 900 980 | 8065.02.200 | 01.1979-12.1984 |
| FIAT | 900 980 | 8065.02.200 | 01.1979-12.1984 |
| FIAT | 90 100-90 | 8065.06.000 | 01.1984-01.1988 |
| FIAT | 90 100-90 | 8065.06.000 | 01.1984-01.1988 |
| FIAT | 90 110-90 | 8065.05.220 | 10.1986-12.1988 |
| FIAT | 90 115-90 | 8065.05.000 | 01.1984-12.1990 |
| FIAT | 90 115-90 | 8065.05.000 | 01.1984-12.1990 |
| FIAT | 90 130-90 | 8065.25.010 | 01.1984-12.1990 |
| FIAT | 90 130-90 | 8065.25.010 | 01.1984-12.1990 |
| FIAT | 90 140-90 | 8065.25.080 | 01.1984-12.1993 |
| FIAT | 90 160-90 | 8365.25.501 | 01.1984-12.1994 |
| FIAT | 90 160-90 | 8365.25.502 | 01.1984-12.1994 |
| FIAT | 90 160-90 | 8365.25.503 | 01.1984-12.1994 |
| FIAT | 90 180-90 | 8365.25.500 | 01.1984-12.1994 |
| FIAT | 90 90-90 | 8055.05.000 | 01.1984-01.1991 |
| FIAT | 90 90-90 | 8055.05.000 | 01.1984-01.1991 |
| FIAT | F F 100 | 8065.05.210 | 01.1993-12.1996 |
| FIAT | F F 100 | 8065.06.230 | 01.1990-12.1993 |
| FIAT | F F 100 | 8065.06.300 | 01.1990-12.1993 |
| FIAT | F F 110 | 8065.05.220 | 01.1990-12.1993 |
| FIAT | F F 110 | 8065.05.300 | 01.1990-12.1993 |
| FIAT | F F 115 | 8065.05.000 | 01.1993-12.1996 |
| FIAT | F F 120 | 8065.05.000 | 01.1990-12.1993 |
| FIAT | F F 130 | 8065.25.010 | 01.1990-12.1996 |
| FIAT | F F 140 | 8065.25.080 | 01.1990-12.1996 |
| NEW HOLLAND | Series 90 100-90 | 01.1993- | |
| NEW HOLLAND | Series 90 110-90 | 8061.05 | 01.1993- |
| NEW HOLLAND | Series 90 110-90 | 8065.E | 01.1993- |
| NEW HOLLAND | Series 90 140-90 | 01.1993- | |
| NEW HOLLAND | Series 90 160-90 | 01.1993- | |
| NEW HOLLAND | Series 90 180-90 | 8365.25.500 | 01.1993- |
