Brand new AS-PL Alternator
STANDARD LINE
AS-PL
GREAT WALL
Price:
NZ$ 701.90 including GST
NZ$ 610.35 excluding GST
or four payments of $175.48
with
Learn More
UOM:
each
Product Code:
A9578S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

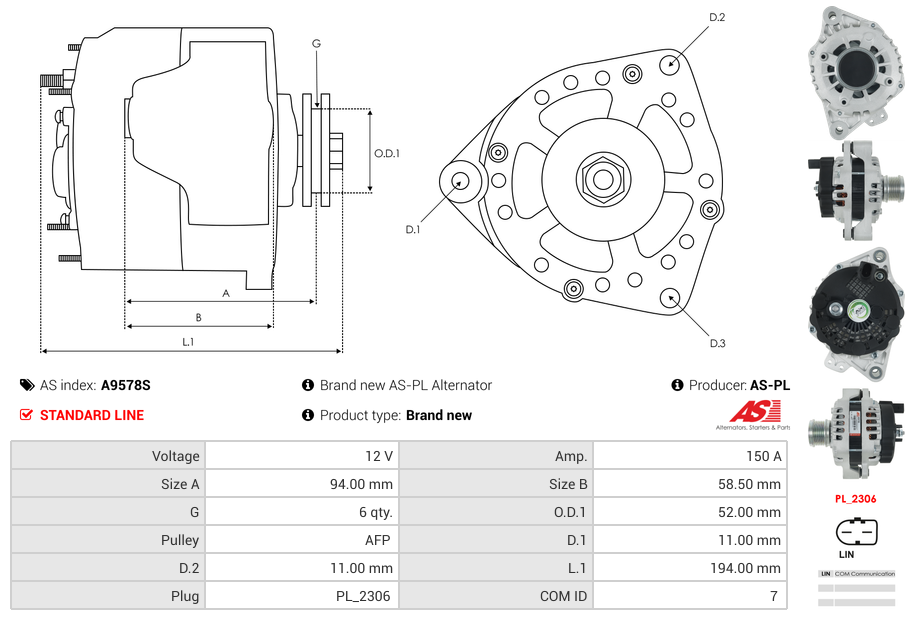

Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 58.50 mm |
| Diameter (D.1) | 11.00 mm |
| Diameter (D.2) | 11.00 mm |
| Length (L.1) | 194.00 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 52.00 mm |
| Pulley to Mount Distance (A) | 94.00 mm |
| Pulley Type | Clutch |
| Unit Type | GREAT WALL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GREAT WALL | TANK 300 2.0 4x4 | GW4E20CB | 03.2023- |
| GREAT WALL | TANK 300 HEV 4WD (P01) | E20NA | 07.2024- |
Reference Information
| 3701100AEC83 | GREAT WALL |
| 3701100XEC83 | GREAT WALL |
| ASB130004 | MISCELLANEOUS |
| UD103968A | AS-PL |
