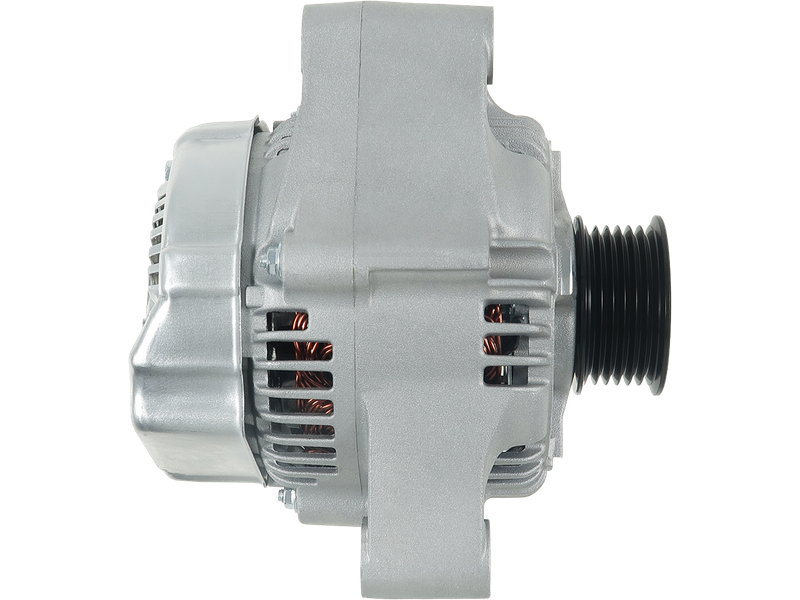

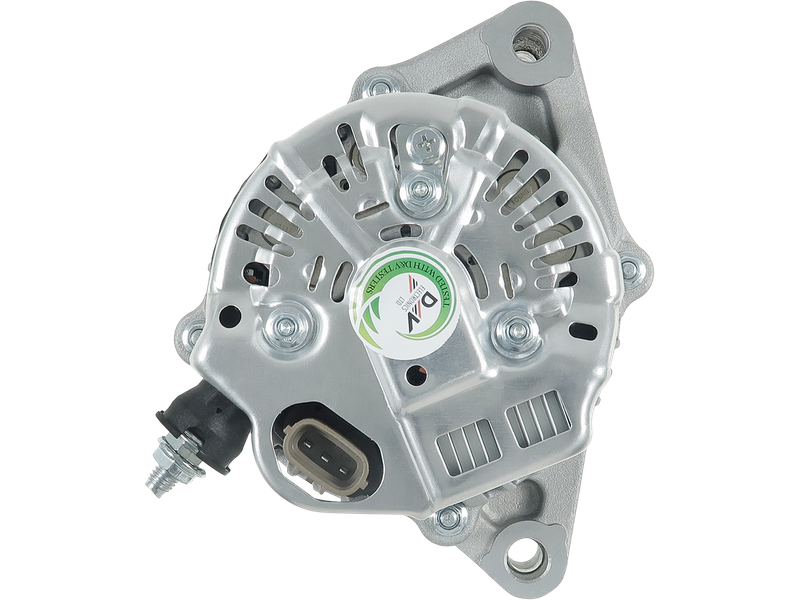

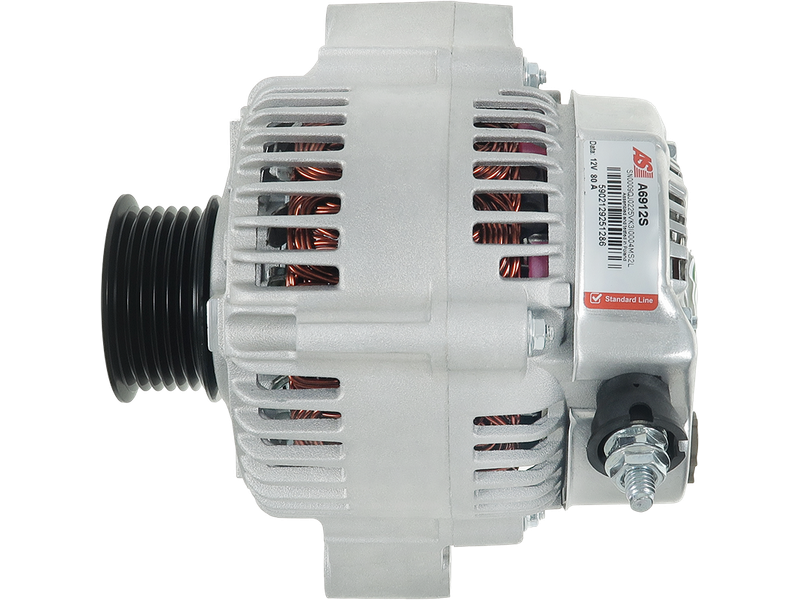

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 382.74 including GST
NZ$ 332.82 excluding GST
or four payments of $95.69
with
Learn More
UOM:
each
Product Code:
A6912S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
|
0986CR0025 |
Bosch Exchange |
|---|---|
|
0986UR0025 |
Bosch Exchange |
|
1012119150 |
Denso |
|
1214601ND |
WAI |
|
13669N |
WAI |
|
13669R |
WAI |
|
14376 |
Delco Remy |
|
195905080 |
PSH |
|
2706050190 |
Toyota |
|
270605019084 |
Toyota |
|
3342053 |
AC Delco |
|
90295220 |
Wilson |
|
9651219915 |
Denso |
|
AL3288X |
Bosch (USA) |
|
ALT30709 |
Wood Auto |
|
ATA544 |
ATK |
|
DRA1676 |
Delco Remy |
|
LRA03914 |
Lucas |
|
LRA3914 |
Lucas |
|
RM4083 |
Delphi |
|
WOOALT30709 |
Wood Auto |
|
WURT5B800615 |
Würtemberg |

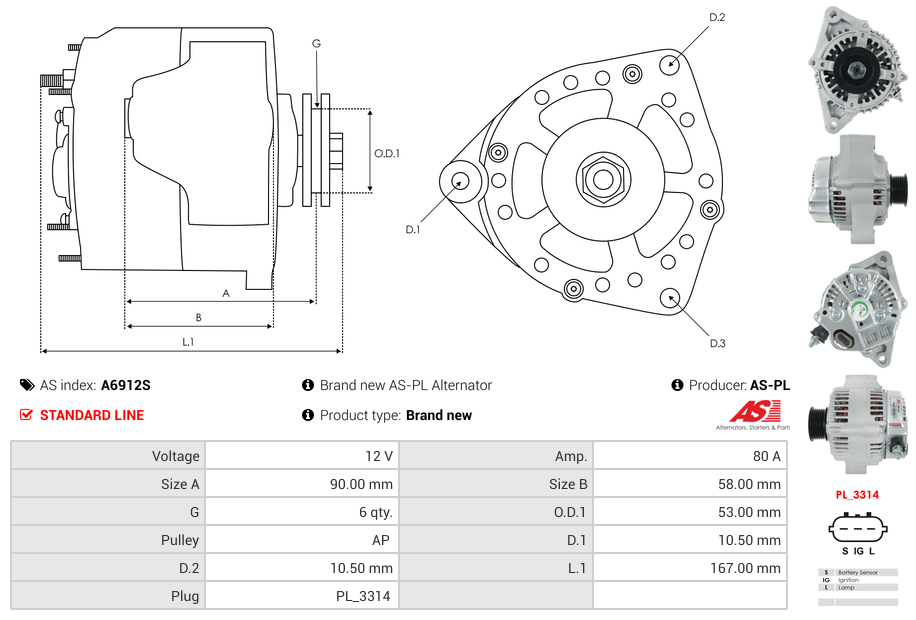

Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 58.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 167.00 mm |
| Plug Code | PL_3314 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 53.00 mm |
| Pulley to Mount Distance (A) | 90.00 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LEXUS | LS (_F2_) 400 (UCF20_, UCF20R) | 1UZ-FE | 12.1994-08.1997 |
| TOYOTA | CELSIOR (UCF2_) 4.0 (UCF20, UCF21) | 1UZ-FE | 10.1994-07.1997 |
Reference Information
| 101211-9150 | DENSO |
| 13669 | LESTER |
| 13669N | WAI |
| 195.905.080.050 | WAI |
| 20532131BN | REAL |
| 27060-50190 | TOYOTA |
| 28-7524 | ELSTOCK |
| 3114408 | HENKEL PARTS |
| 535130802 | DRI |
| 89216000 | POWERMAX |
| 90-29-5220 | WILSON |
| 90-29-5220N | WILSON |
| A131.069 | WAI |
| AEK3134 | AUTOELECTRO |
| AL03477 | TMI |
| ALN4433 | KRAUF |
| ALT30709 | WOODAUTO |
| ALT6348 | ELECTROLOG |
| DRA1676 | DELCO |
| G101537 | BTS TURBO |
| LRA03914 | LUCAS |
| LRA3914 | LUCAS |
| REG421310A | SIOM |
| SRE40131.0 | SANDO |
| TT11949 | TESLA TECHNICS |
| UD90164A | AS-PL |
