Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FAW
Price:
NZ$ 485.08 including GST
NZ$ 421.81 excluding GST
or four payments of $121.27
with
Learn More
UOM:
each
Product Code:
A9574S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

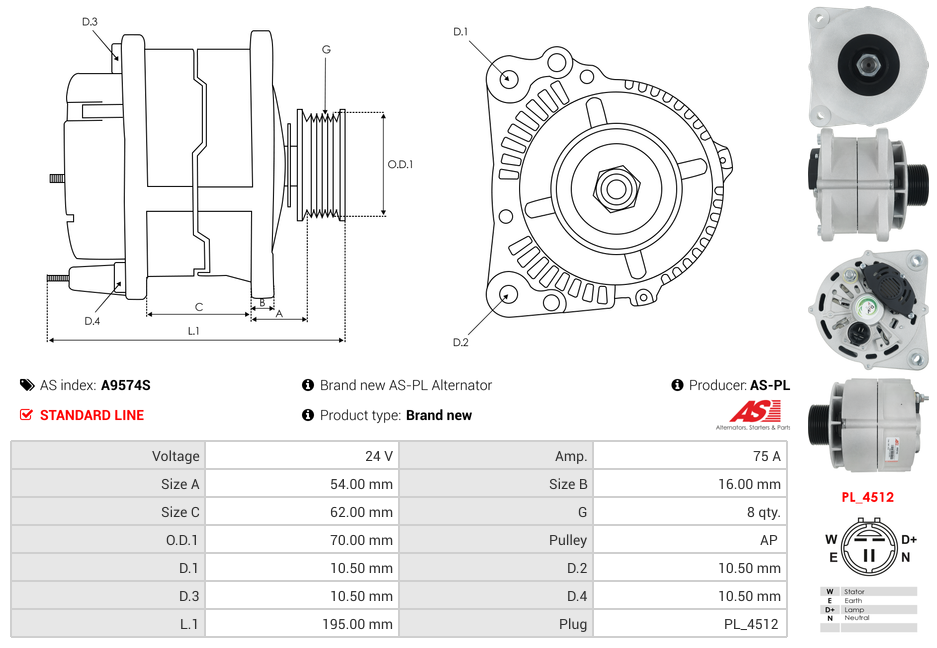

Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 16.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Diameter (D.4) | 10.50 mm |
| Length (L.1) | 195.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62.00 mm |
| Plug Code | PL_4512 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.2) | 70.00 mm |
| Pulley to Mount Distance (A) | 54.00 mm |
| Pulley Type | Solid |
| Unit Type | FAW |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FAW | FAW-3252 | 6DL1 | - |
| FAW | FAW-3312 | 6DL1 | - |
| FAW | J6 | 4DF | - |
| FAW | J6 | 6DF | - |
Reference Information
| 3701010-36D | FAW |
| 3701010-36DS | FAW |
| ALQ8067 | KRAUF |
| JFZ297B | MISCELLANEOUS |
| UD103245A | AS-PL |
