Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 433.11 including GST
NZ$ 376.62 excluding GST
or four payments of $108.28
with
Learn More
UOM:
each
Product Code:
A01119S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
92094626 UD103066A AS-PL 0986AN0548 BOSCH BXH1334A 23100-GD700 NISSAN 92053089 HOLDEN 92075372 92077268 92077269 BXA134 F005A00034 ARB1189
holden commodore supercharged

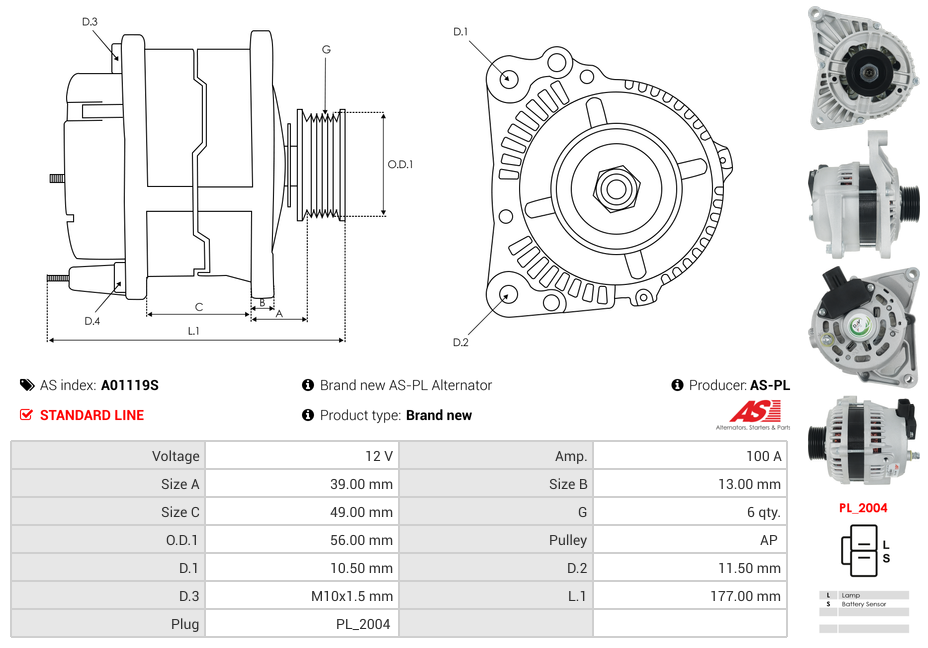

Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 13.00 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 177.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49.00 mm |
| Plug Code | PL_2004 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 56.00 mm |
| Pulley to Mount Distance (A) | 39.00 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HOLDEN | CALAIS Saloon (VS) 3.8 i V6 Supercharged | L67 | 09.1996-06.1997 |
| HOLDEN | CALAIS Saloon (VT) 3.8 i V6 Supercharged | L67 | 09.1997-10.2000 |
| HOLDEN | CALAIS Saloon (VX) 3.8 i V6 Supercharged | L67 | 09.2000-08.2002 |
| HOLDEN | CALAIS Saloon (VY) 3.8 i V6 Supercharged | L67 | 09.2002-08.2004 |
| HOLDEN | CAPRICE Saloon (WH) 3.8 i V6 Supercharged | L67 | 06.1999-08.2001 |
| HOLDEN | CAPRICE Saloon (WK) 3.8 i V6 Supercharged | L67 | 05.2003-07.2004 |
| HOLDEN | COMMODORE | 3.8L SUPERCHARGED | 1996-2004 |
| HOLDEN | COMMODORE Pickup (VY) 3.8 i V6 Supercharged | L67 | 09.2002-08.2004 |
| HOLDEN | COMMODORE Saloon (VS) 3.8 i V6 Supercharged | L67 | 08.1995-06.1997 |
| HOLDEN | COMMODORE Saloon (VT) 3.8 i V6 Supercharged | L67 | 09.1997-08.2000 |
| HOLDEN | COMMODORE Saloon (VX) 3.8 i V6 Supercharged | L67 | 09.2000-08.2002 |
| HOLDEN | COMMODORE Saloon (VY) 3.8 i V6 Supercharged | L67 | 09.2002-08.2004 |
| HOLDEN | MONARO Coupe (V2) 3.8 | L67 | 12.2001-08.2003 |
| HOLDEN | STATESMAN Saloon (VS) 3.8 i V6 Supercharged | L67 | 10.1996-06.1999 |
| HOLDEN | STATESMAN Saloon (WH) 3.8 i V6 Supercharged | L67 | 06.1999-04.2003 |
| HOLDEN | STATESMAN Saloon (WK) 3.8 i V6 Supercharged | L67 | 05.2003-07.2004 |
| NISSAN | PATROL GR IV (Y60, GR) 4.2 Carb 4WD (CGY60, KY60, WGY60) | TB42 | 02.1988-12.1995 |
| NISSAN | PATROL III/1 Platform/Chassis (MQ, MK, GQ) 4.2 Carb (Y60) | TB42 | 01.1988-12.1997 |
Reference Information
| 0986AN0548 | BOSCH |
| 23100-GD700 | NISSAN |
| 92053089 | HOLDEN |
| 92075372 | HOLDEN |
| 92077268 | HOLDEN |
| 92077269 | HOLDEN |
| 92094626 | HOLDEN |
| BXH1334A | BOSCH |
| UD103066A | AS-PL |
