Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 309.53 including GST
NZ$ 269.16 excluding GST
or four payments of $77.38
with
Learn More
UOM:
each
Product Code:
S0542SR
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

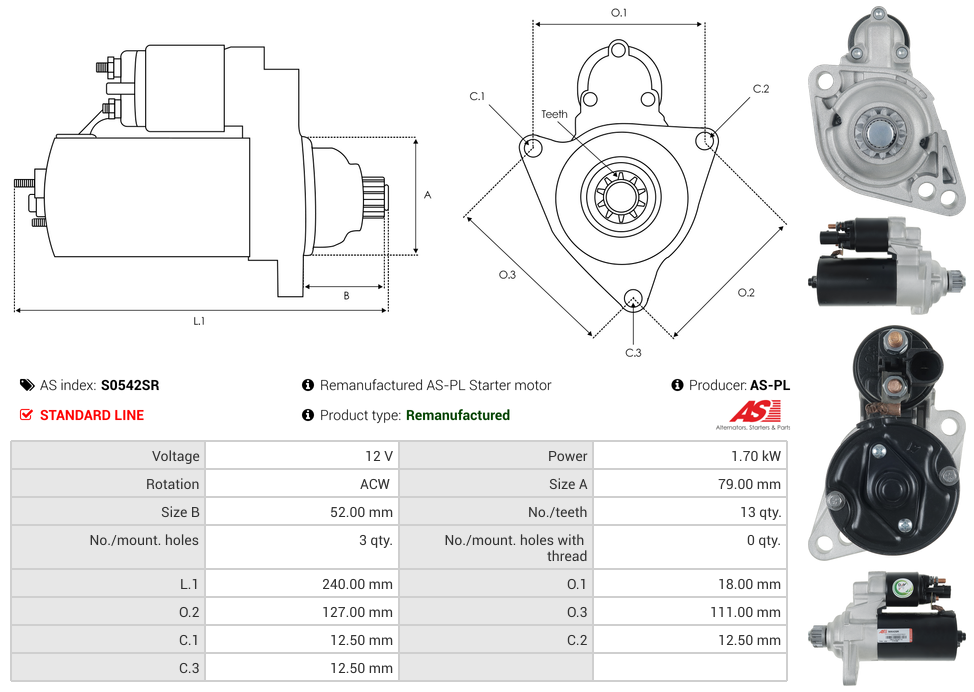

Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 240.00 mm |
| Mount Hole Center - Center (O.1) | 18.00 mm |
| Mount Hole Center - Center (O.2) | 127.00 mm |
| Mount Hole Center - Center (O.3) | 111.00 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| Mount Hole Diameter (C.3) | 12.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| Pinion at Rest (B) | 52.00 mm |
| Rotation | ACW |
| Spigot Diameter (A) | 79.00 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 1.4 TSi | [CAXA] | 01.2010- |
| AUDI | A1 1.4 TSi | [CNVA] | 01.2010- |
| AUDI | A1 (8X1, 8XK) 1.4 TFSI | CAXA | 05.2010-04.2015 |
| AUDI | A1 (8X1, 8XK) 1.4 TFSI | CNVA | 05.2010-04.2015 |
| AUDI | A3 1.4 TFSi | [CAXC] | 01.2007- |
| AUDI | A3 1.4 TFSi | [CMSA] | 01.2007- |
| AUDI | A3 (8P1) 1.4 TFSI | CAXC | 09.2007-08.2012 |
| AUDI | A3 (8P1) 1.4 TFSI | CMSA | 09.2007-08.2012 |
| AUDI | A3 Convertible (8P7) 1.4 TFSI | CAXC | 02.2011-05.2013 |
| AUDI | A3 Sportback (8PA) 1.4 TFSI | CAXC | 09.2007-03.2013 |
| AUDI | A3 Sportback (8PA) 1.4 TFSI | CMSA | 09.2007-03.2013 |
| SEAT | Altea 1.4 TSi | [CAXC] | 11.2007- |
| SEAT | ALTEA (5P1) 1.4 TSI | CAXC | 11.2007-07.2015 |
| SEAT | ALTEA XL (5P5, 5P8) 1.4 TSI | CAXC | 11.2007-07.2015 |
| SEAT | Leon 1.4 TSi | [CAXC] | 11.2007- |
| SEAT | Leon 1.8 TSi | [CDAA] | 01.2007- |
| SEAT | LEON (1P1) 1.4 16V | BXW | 06.2006-12.2012 |
| SEAT | LEON (1P1) 1.4 16V | CGGB | 06.2006-12.2012 |
| SEAT | LEON (1P1) 1.4 TSI | CAXC | 11.2007-12.2012 |
| SEAT | LEON (1P1) 1.8 TSI | BZB | 06.2007-12.2012 |
| SEAT | LEON (1P1) 1.8 TSI | CDAA | 06.2007-12.2012 |
| SEAT | TOLEDO IV (KG3) 1.6 TDI | CAYB | 06.2013-06.2015 |
| SEAT | TOLEDO IV (KG3) 1.6 TDI | CAYC | 07.2012-06.2015 |
| SEAT | TOLEDO IV (KG3) 1.6 TDI | CLNA | 07.2012-06.2015 |
| SKODA | Octavia 1.4 TSi | [CAXA] | 01.2008- |
| SKODA | OCTAVIA II (1Z3) 1.4 TSI | CAXA | 11.2008-06.2013 |
| SKODA | OCTAVIA II (1Z3) 1.8 TSI | CDAB | 03.2009-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.4 TSI | CAXA | 11.2008-06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) 1.8 TSI | CDAB | 03.2009-06.2013 |
| SKODA | SUPERB II (3T4) 1.4 TSI | CAXC | 07.2008-05.2015 |
| SKODA | SUPERB II (3T4) 1.6 TDI | CAYC | 09.2010-05.2015 |
| SKODA | SUPERB II (3T4) 1.8 TSI | BZB | 03.2008-05.2015 |
| SKODA | SUPERB II (3T4) 1.8 TSI | CDAA | 03.2008-05.2015 |
| SKODA | SUPERB II (3T4) 1.8 TSI | CDAB | 03.2009-05.2015 |
| SKODA | SUPERB II (3T4) 1.8 TSI 4x4 | CDAA | 11.2008-05.2015 |
| SKODA | SUPERB II (3T4) 1.8 TSI 4x4 | CDAB | 03.2009-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI | CBBB | 07.2008-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI | CFGB | 07.2008-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI 16V | BKD | 01.2009-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI 16V | CFFB | 01.2009-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI 16V | CLJA | 01.2009-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI 16V 4x4 | CFFB | 11.2010-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI 4x4 | CBBB | 09.2008-05.2015 |
| SKODA | SUPERB II (3T4) 2.0 TDI 4x4 | CFGB | 09.2008-05.2015 |
| SKODA | SUPERB II Estate (3T5) 1.4 TSI | CAXC | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 1.6 TDI | CAYC | 09.2010-05.2015 |
| SKODA | SUPERB II Estate (3T5) 1.8 TSI | CDAA | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 1.8 TSI | CDAB | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 1.8 TSI 4x4 | CDAA | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 1.8 TSI 4x4 | CDAB | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI | CBBB | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI | CFGB | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI 16V | BKD | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI 16V | CFFB | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI 16V | CLJA | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI 16V 4x4 | CFFB | 11.2010-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI 4x4 | CBBB | 10.2009-05.2015 |
| SKODA | SUPERB II Estate (3T5) 2.0 TDI 4x4 | CFGB | 10.2009-05.2015 |
| SKODA | Yeti 1.4 TSi | [CAXA] | 01.2010- |
| SKODA | YETI (5L) 1.4 TSI | CAXA | 06.2010-05.2015 |
| SKODA | YETI (5L) 1.4 TSI | CZCA | 05.2015-12.2017 |
| VW | CC B7 (358) 1.4 TSI | CTHD | 11.2011-12.2016 |
| VW | Eos 1.4 TSi | 01.2007- | |
| VW | EOS (1F7, 1F8) 1.4 TSI | CAXA | 11.2007-08.2015 |
| VW | Golf Plus 1.4 TSi | [CAVD] | 01.2007- |
| VW | Golf Plus 1.4 TSi | [CAXA] | 01.2007- |
| VW | GOLF PLUS V (5M1, 521) 1.4 TSI | CAVD | 06.2008-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.4 TSI | CAXA | 06.2007-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.4 TSI | CNWA | 06.2008-12.2013 |
| VW | GOLF PLUS V (5M1, 521) 1.4 TSI | CTHD | 06.2008-12.2013 |
| VW | GOLF PLUS Van (521) 1.4 TSi | CAXA | 01.2009-08.2014 |
| VW | Golf VI 1.4 TSi | [CAVD] | 01.2008- |
| VW | Golf VI 1.4 TSi | [CAXA] | 10.2008-11.2012 |
| VW | Golf VI 1.4 TSi | [CHPB] | 11.2013- |
| VW | Golf VI 1.4 TSi | [CXSB] | 11.2013- |
| VW | Golf VI 1.4 TSi | [CZCA] | 11.2013- |
| VW | Golf VI 1.4 TSi | [CZDA] | 11.2013- |
| VW | GOLF VI (5K1) 1.4 TSI | CAVD | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.4 TSI | CAXA | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.4 TSI | CNWA | 10.2008-11.2012 |
| VW | GOLF VI (5K1) 1.4 TSI | CTHD | 10.2008-11.2012 |
| VW | GOLF VI Convertible (517) 1.2 TSI 16V | CJZA | 11.2013-05.2016 |
| VW | GOLF VI Convertible (517) 1.2 TSI 16V | CYVD | 11.2013-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CAVD | 03.2011-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CAXA | 11.2011-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CHPB | 11.2013-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CNWA | 03.2011-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CTHD | 03.2011-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CTKA | 03.2011-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CXSB | 11.2013-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CZCA | 11.2013-05.2016 |
| VW | GOLF VI Convertible (517) 1.4 TSI | CZDA | 11.2013-05.2016 |
| VW | GOLF VI Van (5K1) TSi | CAXA | 10.2008-11.2012 |
| VW | GOLF VI Variant (AJ5) 1.4 TSI | CAVD | 07.2009-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.4 TSI | CAXA | 07.2009-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.4 TSI | CNWA | 07.2009-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.4 TSI | CTHD | 07.2009-07.2013 |
| VW | GOLF VI Variant (AJ5) 1.4 TSI | CTKA | 07.2009-07.2013 |
| VW | Passat 1.4 TSi | [CAXA] | 05.2007- |
| VW | Passat 1.4 TSi | [CKMA] | 05.2007- |
| VW | Passat 1.4 TSi | [CTHD] | 05.2007- |
| VW | Passat 1.4 TSi EcoFuel | [CDGA] | 08.2010- |
| VW | Passat 2.0 TDi | [CBDC] | 01.2008-12.2010 |
| VW | PASSAT B6 (3C2) 1.4 TSI | CAXA | 05.2007-07.2010 |
| VW | PASSAT B6 (3C2) 2.0 TDI | CBDC | 11.2008-07.2010 |
| VW | PASSAT B6 Variant (3C5) 1.4 TSI | CAXA | 05.2007-11.2010 |
| VW | PASSAT B6 Variant (3C5) 2.0 TDI | CBDC | 11.2008-11.2010 |
| VW | PASSAT B7 (362) 1.4 TSI | CAXA | 08.2010-12.2014 |
| VW | PASSAT B7 (362) 1.4 TSI | CTHD | 11.2012-12.2014 |
| VW | PASSAT B7 (362) 1.4 TSI EcoFuel | CDGA | 08.2010-12.2014 |
| VW | PASSAT B7 (362) 1.4 TSI MultiFuel | CKMA | 11.2010-12.2014 |
| VW | PASSAT B7 Estate Van (365) 1.4 TSi BlueMotion | CAXA | 08.2010-12.2014 |
| VW | PASSAT B7 Variant (365) 1.4 TSI | CAXA | 08.2010-12.2014 |
| VW | PASSAT B7 Variant (365) 1.4 TSI | CTHD | 11.2012-12.2014 |
| VW | PASSAT B7 Variant (365) 1.4 TSI EcoFuel | CDGA | 08.2010-12.2014 |
| VW | PASSAT B7 Variant (365) 1.4 TSI MultiFuel | CKMA | 11.2010-12.2014 |
| VW | Scirocco 1.4 TSi | [CAXA] | 09.2008- |
| VW | Scirocco 1.4 TSi | [CMSB] | 09.2008- |
| VW | SCIROCCO III (137, 138) 1.4 TSI | CAVD | 05.2008-11.2017 |
| VW | SCIROCCO III (137, 138) 1.4 TSI | CAXA | 08.2008-11.2017 |
| VW | SCIROCCO III (137, 138) 1.4 TSI | CMSB | 08.2008-11.2017 |
| VW | SCIROCCO III (137, 138) 1.4 TSI | CNWA | 05.2008-11.2017 |
| VW | SCIROCCO III (137, 138) 1.4 TSI | CTHD | 05.2008-11.2017 |
| VW | SCIROCCO III (137, 138) 1.4 TSI | CTKA | 05.2008-11.2017 |
| VW | SCIROCCO III (137, 138) 2.0 R | CDLC | 11.2009-11.2017 |
| VW | SCIROCCO Van (137) 1.4 TSi | CAXA | 08.2008-05.2014 |
| VW | SCIROCCO Van (137) 2.0 TFSi | CCZB | 11.2009-05.2014 |
| VW | TIGUAN (5N_) 1.4 TSI | CAXA | 08.2010-07.2018 |
