Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 550.95 including GST
NZ$ 479.09 excluding GST
or four payments of $137.74
with
Learn More
UOM:
each
Product Code:
S01079S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently

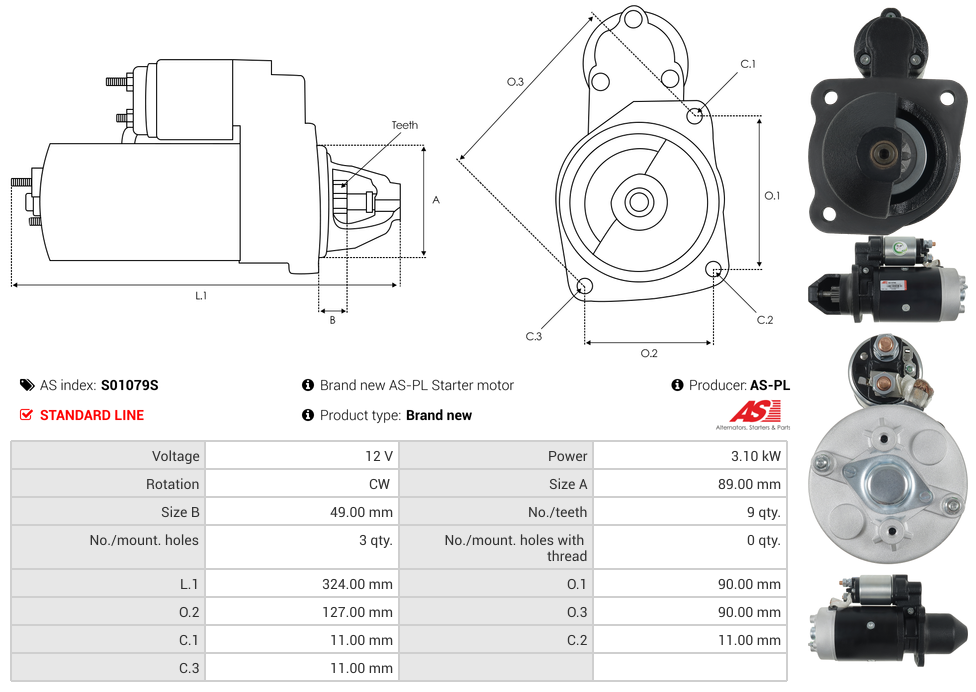

Specifications
| Kilowatt | 3.10 kW |
| Length (L.1) | 324.00 mm |
| Mount Hole Center - Center (O.1) | 90.00 mm |
| Mount Hole Center - Center (O.2) | 127.00 mm |
| Mount Hole Center - Center (O.3) | 90.00 mm |
| Mount Hole Diameter (C.1) | 11.00 mm |
| Mount Hole Diameter (C.2) | 11.00 mm |
| Mount Hole Diameter (C.3) | 11.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 49.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89.00 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 300 3.6 | 01.1986-06.1986 | |
| CASE | 400 3.9 | 01.1986-06.1986 | |
| CASE | 400 5.1 | 01.1986-06.1986 | |
| CASE | 500 2.5 | 01.1986-06.1986 | |
| CASE | 500 5.9 | 01.1986-06.1986 | |
| CASE | 600 3.4 | 01.1986-06.1986 | |
| CASE | 800 4.4 | 01.1986-12.1990 | |
| CASE IH | 300 3.6 | 01.1986-06.1986 | |
| CASE IH | 400 3.9 | 01.1986-06.1986 | |
| CASE IH | 400 5.1 | 01.1986-06.1986 | |
| CASE IH | 500 2.5 | 01.1986-06.1986 | |
| CASE IH | 500 5.9 | 01.1986-06.1986 | |
| CASE IH | 600 3.4 | 01.1986-06.1986 | |
| CASE IH | 800 4.4 | 01.1986-12.1990 | |
| CASE IH | IH 1046 | D-358 | 01.1974-12.1979 |
| CASE IH | IH 1046 A 5.9 | D-358 | 04.1973-09.1977 |
| CASE IH | IH 1056 | D-358 | 01.1982-12.1985 |
| CASE IH | IH 1246 | DT-358 | 01.1974-12.1979 |
| CASE IH | IH 1246 A 5.9 | DT-358 | 02.1974-08.1979 |
| CASE IH | IH 125 B2 4.0 | D239 | 06.1973-12.1986 |
| CASE IH | IH 221 | 10.1972-12.1974 | |
| CASE IH | IH 325 5.1 | D-239 | 04.1973-12.1985 |
| CASE IH | IH 3654 4.0 | D-239 | 04.1973-12.1978 |
| CASE IH | IH 3964 Yumbo 5.9 | D-358 | 07.1973-12.1986 |
| CASE IH | IH 3965 Yumbo 5.9 | D-358 | 03.1971-12.1986 |
| CASE IH | IH 3980 Yumbo 5.9 | D-358 | 03.1972-12.1986 |
| CASE IH | IH 400-Serie 431 3.9 | D-239 | 01.1986-06.1986 |
| CASE IH | IH 400-Serie 431 5.1 | D-310 | 01.1986-06.1986 |
| CASE IH | IH 431 4.0 | D239 | 02.1973-12.1985 |
| CASE IH | IH 431 5.1 | D-310 | 04.1973-12.1985 |
| CASE IH | IH 500-Serie 531 2.5 | D-310 | 01.1986-06.1986 |
| CASE IH | IH 500-Serie 531 5.1 | D-310 | 04.1973-12.1985 |
| CASE IH | IH 500-Serie 531 5.9 | D-358 | 04.1973-06.1986 |
| CASE IH | IH 554 A | 02.1974-02.1975 | |
| CASE IH | IH 600-Serie 644 3.4 | D-206 | 01.1986-06.1986 |
| CASE IH | IH 644 | D-206 | 01.1974-12.1986 |
| CASE IH | IH 644 3.4 | D-206 | 01.1974-12.1985 |
| CASE IH | IH 644 A 3.4 | D-206 | 01.1974-12.1985 |
| CASE IH | IH 724A | 04.1973-01.1974 | |
| CASE IH | IH 744 4.0 | D239 | 02.1974-06.1984 |
| CASE IH | IH 744 A | 02.1974-06.1984 | |
| CASE IH | IH 744 A 4.0 | D239 | 02.1974-06.1984 |
| CASE IH | IH 800-Serie 321 3.9 | D-239 | 01.1986-06.1986 |
| CASE IH | IH 800-Serie 844A 4.3 | D-246 | 01.1986-12.1990 |
| CASE IH | IH 800-Serie 844 S/SA 4.4 | D-268 | 01.1986-12.1990 |
| CASE IH | IH 844 | D-246 | 01.1974-12.1990 |
| CASE IH | IH 844 A 4.0 | D-246 | 01.1974-12.1985 |
| CASE IH | IH 844 S, SA 4.0 | D-268 | 02.1975-12.1985 |
| CASE IH | IH 946 | D-310 | 01.1974-12.1979 |
| CASE IH | IH 946 A 5.1 | D-310 | 04.1973-09.1977 |
| CASE IH | IH 956 XL | D-358 | 01.1982-12.1990 |
| CASE IH | IH H 30 B 4.0 | D-239 | 01.1976-12.1985 |
| CASE IH | IH H30B Payloader | D239 | 01.1975-01.1976 |
| CASE IH | IH H50B Payloader | 04.1973-01.1979 | |
| CASE IH | IH H 60 B 5.9 | D-358 | 10.1971-06.1984 |
| CASE IH | IH H60B Payloader | 10.1971-06.1984 | |
| CASE IH | IH H-Serie H 50 B 5.1 | D-310 | 04.1973-12.1979 |
| CASE IH | IH TD 8B 4.0 | D-239 | 04.1973-12.1978 |
| CASE IH | IH TD8B Crawler Tractor | 01.1969-01.1976 | |
| INTERNATIONAL | 1046 4.0 | 04.1973-12.1985 | |
| INTERNATIONAL | 1046 5.1 | 04.1973-12.1985 | |
| INTERNATIONAL | 1046 5.9 | 04.1973-12.1985 | |
| INTERNATIONAL | 1246 5.1 | 04.1973-12.1985 | |
| INTERNATIONAL | 1246 5.9 | 04.1973-12.1985 | |
| INTERNATIONAL | 125 4.0 | 11.1972-12.1985 | |
| INTERNATIONAL | 125 5.1 | 11.1972-12.1985 | |
| INTERNATIONAL | 321 4.0 | 11.1972-12.1985 | |
| INTERNATIONAL | 321 5.1 | 11.1972-12.1985 | |
| INTERNATIONAL | 3654 4.0 | 04.1973-12.1978 | |
| INTERNATIONAL | 3654 5.1 | 04.1973-12.1978 | |
| INTERNATIONAL | 3964 5.9 | 03.1971-05.1982 | |
| INTERNATIONAL | 3965 5.9 | 03.1971-05.1982 | |
| INTERNATIONAL | 3980 5.9 | 03.1971-05.1982 | |
| INTERNATIONAL | 431 4.0 | 11.1972-12.1985 | |
| INTERNATIONAL | 431 5.1 | 11.1972-12.1985 | |
| INTERNATIONAL | 531 5.1 | 04.1973-12.1985 | |
| INTERNATIONAL | 531 5.9 | 04.1973-12.1985 | |
| INTERNATIONAL | 844 4.0 | 04.1973-12.1985 | |
| INTERNATIONAL | 844 5.9 | 04.1973-12.1985 | |
| INTERNATIONAL | 946 4.0 | 04.1973-12.1985 | |
| INTERNATIONAL | 946 5.1 | 04.1973-12.1985 | |
| INTERNATIONAL | 946 5.9 | 04.1973-12.1985 | |
| INTERNATIONAL | H30B 4.0 | 10.1971-06.1984 | |
| INTERNATIONAL | H30B 5.9 | 10.1971-06.1984 | |
| INTERNATIONAL | H50B 5.1 | 10.1971-06.1984 | |
| INTERNATIONAL | H50B 5.9 | 10.1971-06.1984 | |
| INTERNATIONAL | H60B 4.0 | 10.1971-06.1984 | |
| INTERNATIONAL | H60B 5.1 | 10.1971-06.1984 | |
| INTERNATIONAL | H60B 5.9 | 10.1971-06.1984 | |
| INTERNATIONAL | TD8 B 4.0 | 04.1973-12.1978 | |
| INTERNATIONAL | TD8B 4.0 | 04.1973-12.1978 | |
| INTERNATIONAL HARV. | 743 743 | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | 743 743A | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | 743 743XL | D-239 | 01.1981-12.1989 |
| INTERNATIONAL HARV. | 743 743XLA | D-239 | 01.1981-12.1989 |
| INTERNATIONAL HARV. | 844 844S | D-268 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | 844 844SA | D-268 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | 844 844XLA | D-268 | 01.1981-12.1990 |
| INTERNATIONAL HARV. | 856 856XL | DT-239 | 01.1983-12.1991 |
| INTERNATIONAL HARV. | 856 856XLA | DT-239 | 01.1983-12.1991 |
| INTERNATIONAL HARV. | A-Series 433, 433 E | D-155 | 01.1975-12.1990 |
| INTERNATIONAL HARV. | A-Series 533, 533 E | D-155 | 01.1975-12.1990 |
| INTERNATIONAL HARV. | A-Series 533 A | D-155 | 01.1975-12.1990 |
| INTERNATIONAL HARV. | A-Series 633, 633 E | D-179 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | A-Series 633 A, 633 EA | D-179 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | A-Series 633 V | D-179 | 02.1976-12.1987 |
| INTERNATIONAL HARV. | A-Series 733, 733 E | D-206 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | A-Series 733 A, 733 EA | D-206 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | A-Series 833 A | D-239 | 01.1981-12.1989 |
| INTERNATIONAL HARV. | B-Series 554 | D-206 | 01.1974-12.1975 |
| INTERNATIONAL HARV. | B-Series 554 A | D-206 | 01.1974-12.1975 |
| INTERNATIONAL HARV. | B-Series 644 | D-206 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | B-Series 644 A | D-206 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | B-Series 744 | D-239 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | B-Series 744 A | D-239 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | CM-Series 1046 | D-358 | 01.1971-12.1977 |
| INTERNATIONAL HARV. | CM-Series 1046 A | D-358 | 01.1971-12.1977 |
| INTERNATIONAL HARV. | CM-Series 1246 | DT-358 | 01.1972-12.1979 |
| INTERNATIONAL HARV. | CM-Series 1246 A | DT-358 | 01.1972-12.1979 |
| INTERNATIONAL HARV. | CM-Series 453, 453 E | D-155 | 01.1971-12.1975 |
| INTERNATIONAL HARV. | CM-Series 453 V | D-155 | 01.1971-12.1975 |
| INTERNATIONAL HARV. | CM-Series 654 | D-206 | 01.1972-12.1974 |
| INTERNATIONAL HARV. | CM-Series 654 A | D-206 | 01.1972-12.1974 |
| INTERNATIONAL HARV. | CM-Series 724 | D-239 | 01.1969-12.1974 |
| INTERNATIONAL HARV. | CM-Series 724 A | D-239 | 01.1969-12.1974 |
| INTERNATIONAL HARV. | CM-Series 745 S | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | CM-Series 745 SA | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | CM-Series 824 | D-239 | 01.1971-02.1973 |
| INTERNATIONAL HARV. | CM-Series 824 A | D-239 | 01.1971-02.1973 |
| INTERNATIONAL HARV. | C-Series 1055 | D-358 | 01.1977-12.1982 |
| INTERNATIONAL HARV. | C-Series 1055 A | D-358 | 01.1977-12.1982 |
| INTERNATIONAL HARV. | C-Series 1055 XLA | D-358 | 01.1981-12.1982 |
| INTERNATIONAL HARV. | C-Series 1056 XL | D-358 | 01.1982-12.1992 |
| INTERNATIONAL HARV. | C-Series 1056 XLA | D-358 | 01.1982-12.1992 |
| INTERNATIONAL HARV. | C-Series 955 | D-358 | 07.1979-12.1982 |
| INTERNATIONAL HARV. | C-Series 955 A | D-358 | 07.1979-12.1982 |
| INTERNATIONAL HARV. | C-Series 955 XL | D-358 | 01.1981-12.1982 |
| INTERNATIONAL HARV. | C-Series 955 XLA | D-358 | 01.1981-12.1982 |
