Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 514.99 including GST
NZ$ 447.82 excluding GST
or four payments of $128.75
with
Learn More
UOM:
each
Product Code:
S9505S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

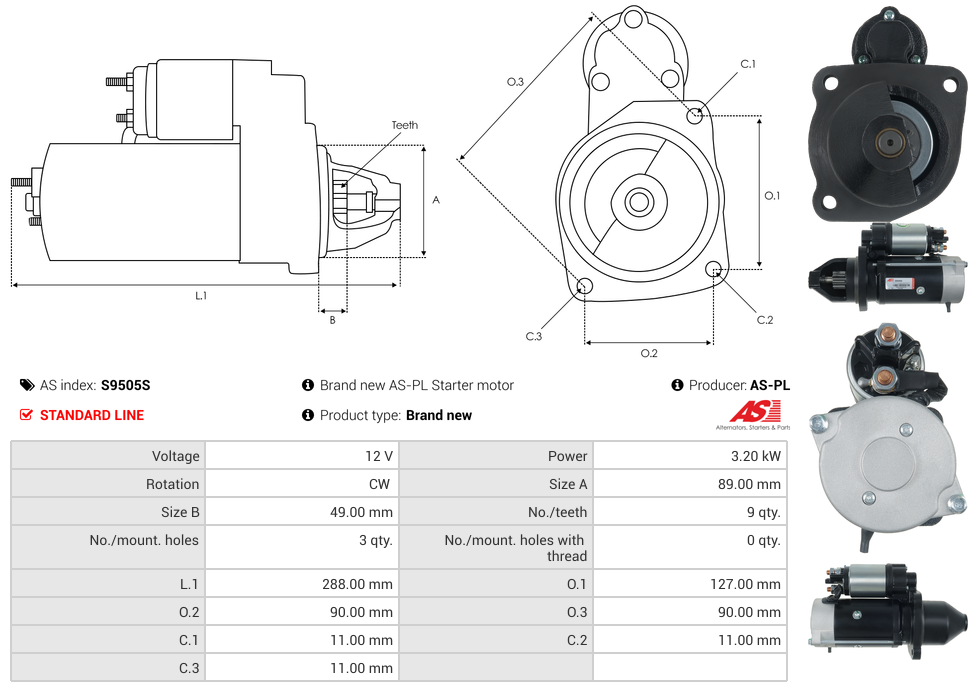

Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 288.00 mm |
| Mount Hole Center - Center (O.1) | 127.00 mm |
| Mount Hole Center - Center (O.2) | 90.00 mm |
| Mount Hole Center - Center (O.3) | 90.00 mm |
| Mount Hole Diameter (C.1) | 11.00 mm |
| Mount Hole Diameter (C.2) | 11.00 mm |
| Mount Hole Diameter (C.3) | 11.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 49.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89.00 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 1046 5.9 | [D-358] | 01.1971-12.1977 |
| CASE | 1055 5.9 | [D-358] | 01.1981-12.1982 |
| CASE | 1056 5.9 | [D-358] | 01.1981-12.1989 |
| CASE | 1056 XL 5.9 | [D-358] | 01.1981-12.1989 |
| CASE | 221 | 10.1972-12.1974 | |
| CASE | 30 B | 01.1975-01.1976 | |
| CASE | 321 3.9 | [D-239] | 01.1986- |
| CASE | 431 5.1 | [D-310] | 01.1986- |
| CASE | 50 B | 04.1973-01.1979 | |
| CASE | 531 2.5 | [D-310] | 01.1986-06.1986 |
| CASE | 531 5.9 | [D-358] | 01.1986-06.1986 |
| CASE | 60 B | 10.1971-06.1984 | |
| CASE | 644 3.4 | [D-206] | 01.1974-12.1980 |
| CASE | 644 3.4 | [D-206] | 01.1986- |
| CASE | 644 3.4 | [D-206] | 01.1986-06.1986 |
| CASE | 644A 3.4 | [D-206] | 01.1986- |
| CASE | 644A 3.4 | [D-206] | 01.1986-06.1986 |
| CASE | 654 3.4 | [D-206] | 01.1972-12.1974 |
| CASE | 724 A 3.9 | [D-239] | 04.1969-01.1974 |
| CASE | 733 3.4 | [D-206] | 01.1980-12.1989 |
| CASE | 733 A 3.4 | [D-206] | 01.1980-12.1989 |
| CASE | 733 EA 3.4 | [D-206] | 01.1980-12.1989 |
| CASE | 743 3.9 | [D-239] | 04.1981-01.1989 |
| CASE | 743 XLA 3.9 | [D-239] | 04.1981-01.1989 |
| CASE | 745 S 3.9 | [D-239] | 02.1980-06.1989 |
| CASE | 745 SA 3.9 | [D-239] | 02.1980-06.1989 |
| CASE | 844 3.9 | [4-206-268] | 01.1975-12.1990 |
| CASE | 844 3.9 | [D-310] | 01.1975-12.1990 |
| CASE | 844 3.9 | [D-385] | 01.1975-12.1990 |
| CASE | 844 4.4 | [D-268] | 01.1986-12.1990 |
| CASE | 844 A 3.9 | [4-206-268] | 01.1975-12.1990 |
| CASE | 844 A 3.9 | [D-310] | 01.1975-12.1990 |
| CASE | 844 A 3.9 | [D-385] | 01.1975-12.1990 |
| CASE | 844 A 4.3 | [D-246] | 01.1986-12.1990 |
| CASE | 844 S 3.9 | [4-206-268] | 01.1975-12.1990 |
| CASE | 844 S 3.9 | [D-310] | 01.1975-12.1990 |
| CASE | 844 S 3.9 | [D-385] | 01.1975-12.1990 |
| CASE | 844 S 4.4 | [D-268] | 01.1986-12.1990 |
| CASE | 844 SA 3.9 | [4-206-268] | 01.1975-12.1990 |
| CASE | 844 SA 3.9 | [D-310] | 01.1975-12.1990 |
| CASE | 844 SA 3.9 | [D-385] | 01.1975-12.1990 |
| CASE | 844 SA 4.4 | [D-268] | 01.1986-12.1990 |
| CASE | 955 5.9 | [D-358] | 01.1981-01.1993 |
| CASE | 955 A 5.9 | [D-358] | 01.1981-01.1993 |
| CASE | 955 XLA 5.9 | [D-358] | 01.1981-01.1993 |
| CASE | TD8 B | 01.1969-01.1976 | |
| CASE | VG889 | ||
| CASE IH | 1046 5.9 | D-358 | 01.1971-12.1977 |
| CASE IH | 1055 5.9 | D-358 | 01.1981-12.1982 |
| CASE IH | 1056 5.9 | D-358 | 01.1981-12.1989 |
| CASE IH | 1056 XL 5.9 | D-358 | 01.1981-12.1989 |
| CASE IH | 221 | 10.1972-12.1974 | |
| CASE IH | 30 B | 01.1975-01.1976 | |
| CASE IH | 321 3.9 | D-239 | 01.1986- |
| CASE IH | 431 5.1 | D-310 | 01.1986- |
| CASE IH | 50 B | 04.1973-01.1979 | |
| CASE IH | 531 2.5 | D-310 | 01.1986-06.1986 |
| CASE IH | 531 5.9 | D-358 | 01.1986-06.1986 |
| CASE IH | 60 B | 10.1971-06.1984 | |
| CASE IH | 644 3.4 | D-206 | 01.1974-12.1980 |
| CASE IH | 644 3.4 | D-206 | 01.1986-06.1986 |
| CASE IH | 644A 3.4 | D-206 | 01.1986-06.1986 |
| CASE IH | 654 3.4 | D-206 | 01.1972-12.1974 |
| CASE IH | 724 A 3.9 | D-239 | 04.1969-01.1974 |
| CASE IH | 733 3.4 | D-206 | 01.1980-12.1989 |
| CASE IH | 733 A 3.4 | D-206 | 01.1980-12.1989 |
| CASE IH | 733 EA 3.4 | D-206 | 01.1980-12.1989 |
| CASE IH | 743 3.9 | D-239 | 04.1981-01.1989 |
| CASE IH | 743 XLA 3.9 | D-239 | 04.1981-01.1989 |
| CASE IH | 745 S 3.9 | D-239 | 02.1980-06.1989 |
| CASE IH | 745 SA 3.9 | D-239 | 02.1980-06.1989 |
| CASE IH | 844 3.9 | 4-206-268 | 01.1975-12.1990 |
| CASE IH | 844 3.9 | D-310 | 01.1975-12.1990 |
| CASE IH | 844 3.9 | D-385 | 01.1975-12.1990 |
| CASE IH | 844 4.4 | D-268 | 01.1986-12.1990 |
| CASE IH | 844 A 3.9 | 4-206-268 | 01.1975-12.1990 |
| CASE IH | 844 A 3.9 | D-310 | 01.1975-12.1990 |
| CASE IH | 844 A 3.9 | D-385 | 01.1975-12.1990 |
| CASE IH | 844 A 4.3 | D-246 | 01.1986-12.1990 |
| CASE IH | 844 S 3.9 | 4-206-268 | 01.1975-12.1990 |
| CASE IH | 844 S 3.9 | D-310 | 01.1975-12.1990 |
| CASE IH | 844 S 3.9 | D-385 | 01.1975-12.1990 |
| CASE IH | 844 S 4.4 | D-268 | 01.1986-12.1990 |
| CASE IH | 844 SA 3.9 | 4-206-268 | 01.1975-12.1990 |
| CASE IH | 844 SA 3.9 | D-310 | 01.1975-12.1990 |
| CASE IH | 844 SA 3.9 | D-385 | 01.1975-12.1990 |
| CASE IH | 844 SA 4.4 | D-268 | 01.1986-12.1990 |
| CASE IH | 955 5.9 | D-358 | 01.1981-01.1993 |
| CASE IH | 955 A 5.9 | D-358 | 01.1981-01.1993 |
| CASE IH | 955 XLA 5.9 | D-358 | 01.1981-01.1993 |
| CASE IH | TD8 B | 01.1969-01.1976 | |
| CASE IH | VG889 | - | |
| IH | 100 B 3.4 | [D-206] | |
| IH | 100 B 3.4 | [D-358] | |
| IH | 1046 A 5.9 | [D-358] | 04.1973-09.1977 |
| IH | 1246 A 5.9 | [DT-358] | 02.1974-08.1979 |
| IH | 125B 3.4 | [D-206] | |
| IH | 125B 4.0 | [D-239] | 04.1973-12.1979 |
| IH | 125B 5.9 | [D-358] | |
| IH | 221 3.4 | [D-206] | 01.1972-12.1985 |
| IH | 221 5.9 | [D-358] | 01.1972-12.1985 |
| IH | 321 3.4 | [D-206] | 12.1972-12.1985 |
| IH | 321 3.9 | [D-239] | |
| IH | 321 4.0 | [D-239] | 10.1976-12.1986 |
| IH | 321 5.9 | [D-358] | 12.1972-12.1985 |
| IH | 325 5.1 | [D-239] | 04.1973-12.1985 |
| IH | 3654 4.0 | [D-239] | 04.1973-12.1978 |
| IH | 3694 5.9 | [D-358] | 03.1971-05.1982 |
| IH | 3965 5.9 | [D-358] | 04.1971-12.1986 |
| IH | 3980 5.9 | [D-358] | 04.1972-12.1986 |
| IH | 431 4.0 | [D-239] | 02.1973-12.1985 |
| IH | 431 5.1 | [D-310] | 04.1973-12.1985 |
| IH | 531 5.1 | [D-310] | 04.1973-12.1985 |
| IH | 531 5.9 | [D-358] | 04.1973-12.1985 |
| IH | 533 2.5 | [D-155] | 02.1977-12.1985 |
| IH | 533 V 2.5 | [D-155] | 02.1977-12.1985 |
| IH | 644 3.4 | [D-206] | 01.1974-12.1985 |
| IH | 644 A 3.4 | [D-206] | 01.1974-12.1985 |
| IH | 744 4.0 | [D-239] | 02.1974-06.1984 |
| IH | 744 A 4.0 | [D-239] | 02.1974-06.1984 |
| IH | 844 A 4.0 | [D-246] | 01.1974-12.1985 |
| IH | 844 S 4.0 | [D-268] | 02.1975-12.1985 |
| IH | 844 SA 4.0 | [D-268] | 02.1975-12.1985 |
| IH | 8 B 4.0 | [D-239] | 04.1973-12.1978 |
| IH | 946 A 5.1 | [D-310] | 04.1973-09.1977 |
| IH | H30 B 4.0 | [D-239] | 04.1973-12.1979 |
| IH | H50 B 5.1 | [D-310] | 04.1973-12.1979 |
| IH | H60 B 5.9 | [D-358] | 10.1971-06.1984 |
| IH | TD 100 B 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 100 B 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 1046 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 1046 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 1246 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 1246 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 125 B 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 125 B 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 3654 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 3654 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 553 | [D-538] | 01.1972-12.1985 |
| IH | TD 553 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 554 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 554 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 644 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 644 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 644 A 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 644 A 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 654 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 654 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 654 A 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 654 A 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 724 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 724 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 744 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 744 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 824 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 824 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 834 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 834 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 844 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 844 5.9 | [D-358] | 01.1972-12.1985 |
| IH | TD 946 3.4 | [D-206] | 01.1972-12.1985 |
| IH | TD 946 5.9 | [D-358] | 01.1972-12.1985 |
| INTERNATIONAL HARV. | 743 743 | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | 743 743A | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | 743 743XL | D-239 | 01.1981-12.1989 |
| INTERNATIONAL HARV. | 743 743XLA | D-239 | 01.1981-12.1989 |
| INTERNATIONAL HARV. | 844 844S | D-268 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | 844 844SA | D-268 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | 844 844XLA | D-268 | 01.1981-12.1990 |
| INTERNATIONAL HARV. | 856 856XL | DT-239 | 01.1983-12.1991 |
| INTERNATIONAL HARV. | 856 856XLA | DT-239 | 01.1983-12.1991 |
| INTERNATIONAL HARV. | A-Series 433, 433 E | D-155 | 01.1975-12.1990 |
| INTERNATIONAL HARV. | A-Series 533, 533 E | D-155 | 01.1975-12.1990 |
| INTERNATIONAL HARV. | A-Series 533 A | D-155 | 01.1975-12.1990 |
| INTERNATIONAL HARV. | A-Series 633, 633 E | D-179 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | A-Series 633 A, 633 EA | D-179 | 01.1975-12.1989 |
| INTERNATIONAL HARV. | A-Series 633 V | D-179 | 02.1976-12.1987 |
| INTERNATIONAL HARV. | A-Series 733, 733 E | D-206 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | A-Series 733 A, 733 EA | D-206 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | A-Series 833 A | D-239 | 01.1981-12.1989 |
| INTERNATIONAL HARV. | B-Series 554 | D-206 | 01.1974-12.1975 |
| INTERNATIONAL HARV. | B-Series 554 A | D-206 | 01.1974-12.1975 |
| INTERNATIONAL HARV. | B-Series 644 | D-206 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | B-Series 644 A | D-206 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | B-Series 744 | D-239 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | B-Series 744 A | D-239 | 01.1974-12.1980 |
| INTERNATIONAL HARV. | CM-Series 1046 | D-358 | 01.1971-12.1977 |
| INTERNATIONAL HARV. | CM-Series 1046 A | D-358 | 01.1971-12.1977 |
| INTERNATIONAL HARV. | CM-Series 1246 | DT-358 | 01.1972-12.1979 |
| INTERNATIONAL HARV. | CM-Series 1246 A | DT-358 | 01.1972-12.1979 |
| INTERNATIONAL HARV. | CM-Series 453, 453 E | D-155 | 01.1971-12.1975 |
| INTERNATIONAL HARV. | CM-Series 453 V | D-155 | 01.1971-12.1975 |
| INTERNATIONAL HARV. | CM-Series 654 | D-206 | 01.1972-12.1974 |
| INTERNATIONAL HARV. | CM-Series 654 A | D-206 | 01.1972-12.1974 |
| INTERNATIONAL HARV. | CM-Series 724 | D-239 | 01.1969-12.1974 |
| INTERNATIONAL HARV. | CM-Series 724 A | D-239 | 01.1969-12.1974 |
| INTERNATIONAL HARV. | CM-Series 745 S | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | CM-Series 745 SA | D-239 | 01.1980-12.1989 |
| INTERNATIONAL HARV. | CM-Series 824 | D-239 | 01.1971-02.1973 |
| INTERNATIONAL HARV. | CM-Series 824 A | D-239 | 01.1971-02.1973 |
| INTERNATIONAL HARV. | C-Series 1055 | D-358 | 01.1977-12.1982 |
| INTERNATIONAL HARV. | C-Series 1055 A | D-358 | 01.1977-12.1982 |
| INTERNATIONAL HARV. | C-Series 1055 XLA | D-358 | 01.1981-12.1982 |
| INTERNATIONAL HARV. | C-Series 1056 XL | D-358 | 01.1982-12.1992 |
| INTERNATIONAL HARV. | C-Series 1056 XLA | D-358 | 01.1982-12.1992 |
| INTERNATIONAL HARV. | C-Series 955 | D-358 | 07.1979-12.1982 |
| INTERNATIONAL HARV. | C-Series 955 A | D-358 | 07.1979-12.1982 |
| INTERNATIONAL HARV. | C-Series 955 XL | D-358 | 01.1981-12.1982 |
| INTERNATIONAL HARV. | C-Series 955 XLA | D-358 | 01.1981-12.1982 |
View your shopping basket or Browse other items in Starter Motors.
