Brand new AS-PL Alternator
STANDARD LINE
AS-PL
PRESTOLITE
Price:
NZ$ 500.02 including GST
NZ$ 434.80 excluding GST
or four payments of $125.01
with
Learn More
UOM:
each
Product Code:
A9560S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

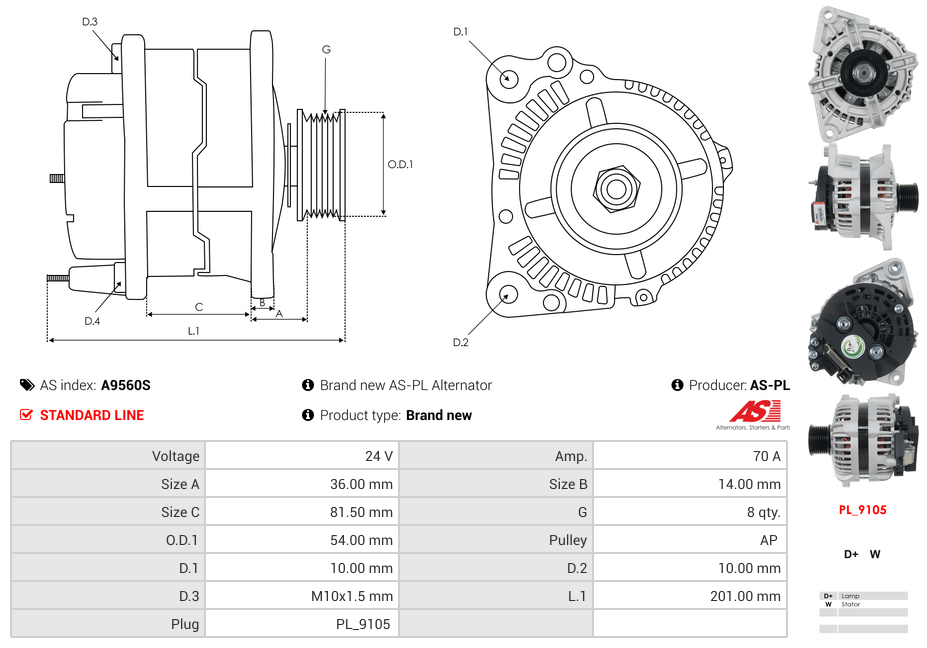

Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 10.00 mm |
| Diameter (D.2) | 10.00 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 201.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81.50 mm |
| Plug Code | PL_9105 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.2) | 54.00 mm |
| Pulley to Mount Distance (A) | 36.00 mm |
| Pulley Type | Solid |
| Unit Type | PRESTOLITE |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Engine | 4ISBE | - |
| CUMMINS | Engine | 4ISDE140 | - |
| YUTONG | Various Models | - | |
| ZHONGTONG BUS | Various Models | - |
Reference Information
| 246.507.070.380 | WAI |
| 3701-00684 | YUTONG |
| 4935821 | CUMMINS |
| 4984043 | CUMMINS |
| A152.311 | WAI |
| ALP3821 | KRAUF |
| AVI-136A101 | PRESTOLITE |
| C4935821 | DONGFENG |
| PREAVI136A101 | WOODAUTO |
| UD103908A | AS-PL |
