Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 466.84 including GST
NZ$ 405.95 excluding GST
or four payments of $116.71
with
Learn More
UOM:
each
Product Code:
A6909S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

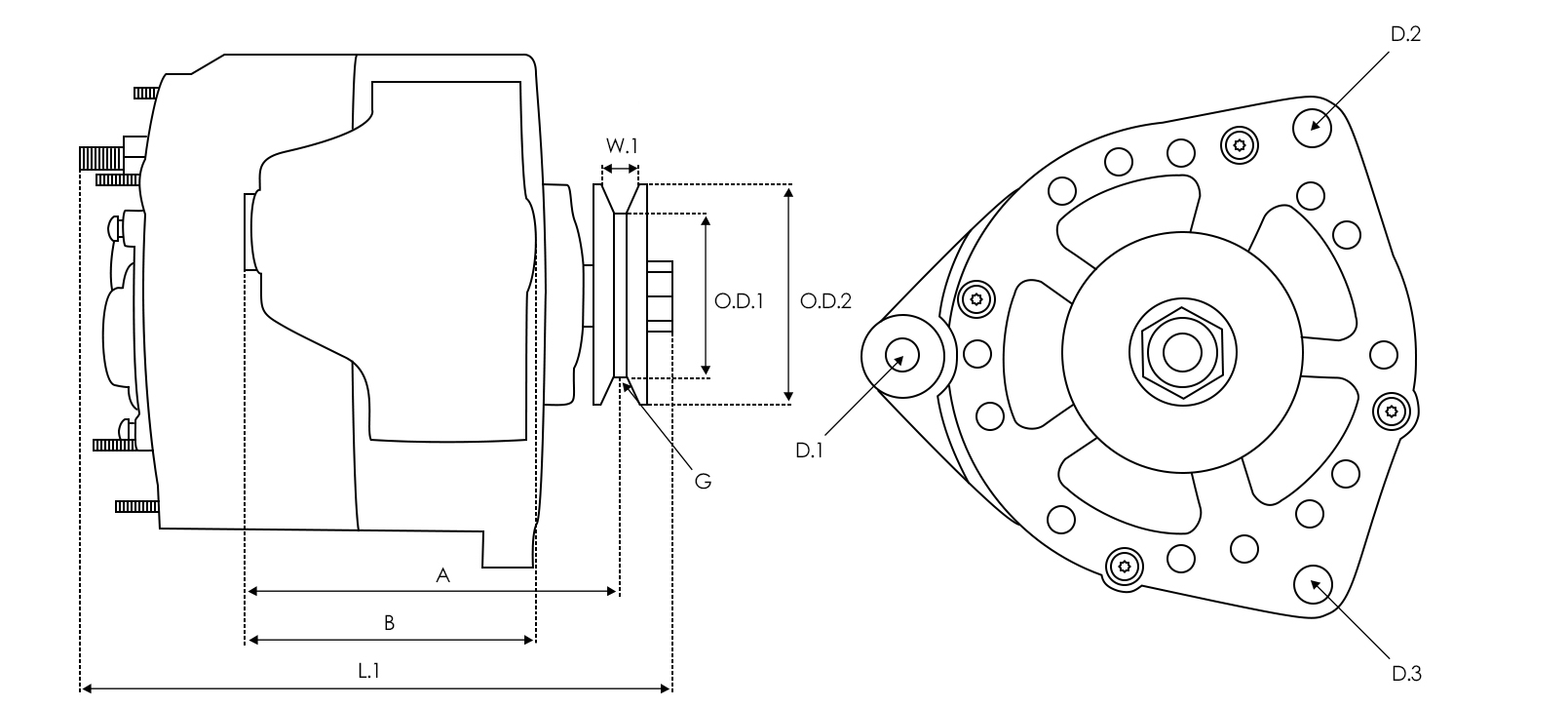

Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 57.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 174.00 mm |
| Plug Code | PL_3314 |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 72.00 mm |
| Pulley Outside Diameter (O.D.2) | 44.00 mm |
| Pulley to Mount Distance (A) | 93.00 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | HIACE IV Bus (_H1_) 3.0 TD (KZH100, KZH110, KZH120, KCH40G) | 1KZ-TE | 08.1993-08.2004 |
Reference Information
| 101211-5630 | DENSO |
| 102211-1060 | DENSO |
| 2040207.0 | SANDO |
| 221-352 | JAYLEC |
| 27060-67040 | TOYOTA |
| 65-8578-1 | JAYLEC |
| UD103186A | AS-PL |
