Price:
NZ$ 98.05 including GST
NZ$ 85.26 excluding GST
or four payments of $24.51
with
Learn More
UOM:
each
Product Code:
SS0431S
No stock in NZ currently
No stock in NZ currently

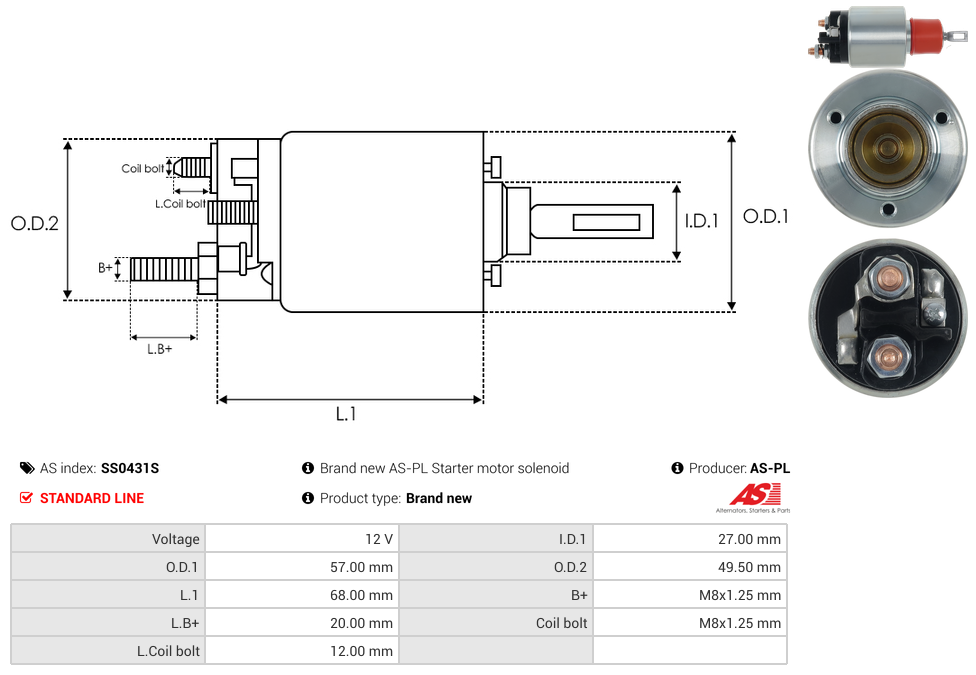

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 12 mm |
| Inside Diameter (I.D.1) | 27 mm |
| L.B+ | 20 mm |
| Length (L.1) | 68 mm |
| Outside Diameter (O.D.1) | 57 mm |
| Outside Diameter (O.D.2) | 49.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
| 01319265 | KHD |
| 036018163 | LOGISTIK |
| 054.000.190.016 | PSH |
| 1011866 | POWERMAX |
| 10610021 | ALANKO |
| 1319265 | KHD |
| 137276 | CARGO |
| 20301361BN | REAL |
| 227139 | ERA |
| 333141 | CARGO |
| 4.6151.9 | IKA |
| 60-15-6646 | WILSON |
| 6660-2111 | DIXIE |
| 66-9189 | WAI / TRANSPO |
| 66-9189-1 | WAI / TRANSPO |
| 81011866 | POWERMAX |
| 9330331010 | BOSCH |
| 9330331510 | BOSCH |
| 940113050418 | MAGNETI MARELLI |
| AME0418 | MAGNETI MARELLI |
| AZMT-49-036-1765 | A.Z. MEISTERTEILE |
| CQ2030448 | CQ |
| CSO10163AS | CASCO |
| E3693 | GHIBAUDI |
| ELE121630A | SIOM |
| F032137276 | CARGO |
| F032333141 | CARGO |
| SND11020 | WOODAUTO |
| SNLS-285 | UNIPOINT |
| SOL1098 | ELECTROLOG |
| SSB7276 | KRAUF |
| SSO10163.0 | SANDO |
| UD54953SS | AS-PL |
| WG2017658 | WILMINK GROUP |
| WOOSND11020 | WOODAUTO |
| ZM1975 | ZM |
Video/Publications
0001223021 0001109360 S0505 0001218172 0001218772 S0066 0001223016 S0101 0001223002 S0510View your shopping basket or Browse other items in Starter Solenoids.
