Price:
NZ$ 545.86 including GST
NZ$ 474.66 excluding GST
or four payments of $136.47
with
Learn More
UOM:
each
Product Code:
S9907S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

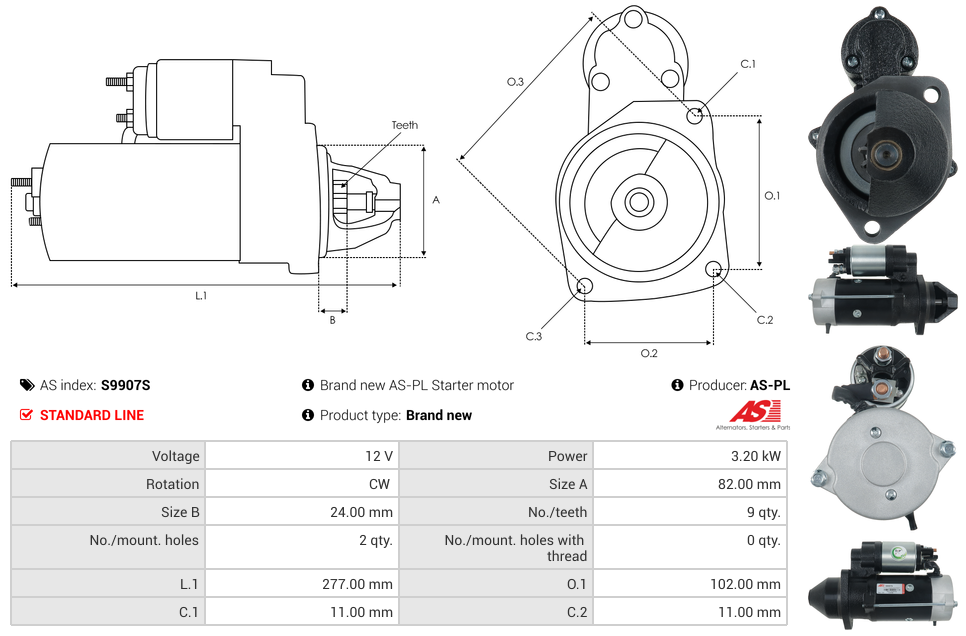

Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 277 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 24 mm |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOMAG | BW 124 HD-3 2.0 | F3L1011 | - |
| BOMAG | BW 135 AD 2.3 | D2011L3i | - |
| BOMAG | BW 138 AD 2.3 | D2011L3i | - |
| BOMAG | BW 141 AD-4 3.6 | TD2011L04W | - |
| BOMAG | BW 145 D 3.6 | TD2011L04i | - |
| BOMAG | BW 145 DH 3.6 | TD2011L04i | - |
| BOMAG | BW 145 PDH 3.6 | TD2011L04i | - |
| BOMAG | BW 151 AC-4 AM 3.6 | TD2011L04W | - |
| BOMAG | BW 151 AD-4 3.6 | BF2011 | - |
| BOMAG | BW 151 AD-4 3.6 | TD2011L04W | - |
| BOMAG | BW 151 AD-4 AM 3.6 | TD2011L04W | - |
| BOMAG | BW 154 AD-4 3.6 | TD2011L04W | - |
| BOMAG | BW 154 AD-4 AM 3.6 | TD2011L04W | - |
| BOMAG | BW 161 AC-4 3.6 | TCD2011L04W | - |
| BOMAG | BW 161 AD-40 3.6 | TCD2011L04W | - |
| BOMAG | BW 161 AD-4 3.6 | TCD2011L04W | - |
| BOMAG | BW 177 DH-4 3.6 | TCD2011L04W | - |
| BOMAG | BW 177 DH-4 BVC 3.6 | TCD2011L04W | - |
| BOMAG | BW 177 PDH-4 3.6 | TCD2011L04W | - |
| BOMAG | BW 179 DH-4 3.6 | TCD2011L04W | - |
| BOMAG | BW 179 PDH-4 3.6 | TCD2011L04W | - |
| BOMAG | BW 211 D-4 4.8 | TCD2013L04 | - |
| DEUTZ | Engine 2.3 | BF3L2011 | - |
| DEUTZ | Engine 2.7 | BF4L1011FT | - |
| DEUTZ | Engine 3.6 | BF4L2011 | - |
| GEHL | 4640 2.3 | BF3M2011 | - |
| GEHL | 5640 3.1 | BF4M2011 | - |
| GEHL | 5640 3.1 | F4M2011 | - |
| GEHL | SL 5635 2.9 | F4M1011F | 01.1997- |
| GEHL | SL 5635 DXT 2.9 | BF4M1011F | 01.1997- |
| HAMM | 3025 3.1 | D2011T | - |
| HAMM | 3205 P 3.1 | D2011T | - |
| HAMM | 3307 P 3.1 | BF4M1011F | 01.2001- |
| HAMM | 3307 P 3.6 | TD2011L04W | - |
| HAMM | HD 70 3.6 | TD2011 L04W | 01.2005-12.2019 |
| HAMM | HD 70 K 3.6 | TD2011L04W | - |
| HAMM | HD 75 3.6 | TD2011L04W | - |
| HAMM | HD 75.4 ASC 3.6 | TD2011L04W | - |
| HAMM | HD 75.4 K ASC 3.6 | TD2011L04W | - |
| HAMM | HD 75 K 3.6 | TD2011L04W | - |
| HAMM | HD O70 V ASC 3.6 | TD2011L04W | - |
| HAMM | HD O75 K ASC 3.6 | TD2011L04W | - |
| HAMM | HD O75 V 3.6 | TD2011L04W | - |
| HAMM | HD O75 V ASC 3.6 | TD2011L04W | - |
| HAMM | HW 90B/10 3.6 | TD2011L04i | - |
| HAMM | HW 90B/12 3.6 | TD2011L04i | - |
| MULTIQUIP | LS400 3.6 | BF4L2011 | - |
Reference Information
| 042477 | DA SILVA |
| 11.131.223 | ISKRA / LETRIKA |
| 182-30571 | ROBERT'S |
| 256059M | KUHNER |
| 31065N-IK | WAI |
| 3119580 | HENKEL PARTS |
| 3119581 | HENKEL PARTS |
| 331925 | LOGISTIK |
| 510.524.092.090 | WAI |
| 510.524.092.310 | WAI |
| 510.524.092.440 | WAI |
| 72740722 | MAHLE |
| 8EA015657-041 | HELLA |
| AZE4213 | ISKRA / LETRIKA |
| IS1454 | ISKRA / LETRIKA |
| MS641 | MAHLE |
| S104379 | BTS TURBO |
| S104380 | BTS TURBO |
| S133.546 | WAI |
| S144.213 | WAI |
| STR79309 | ELECTROLOG |
| UD102984S | AS-PL |
| WG2045319 | WILMINK GROUP |
