Price:
NZ$ 767.58 including GST
NZ$ 667.46 excluding GST
or four payments of $191.90
with
Learn More
UOM:
each
Product Code:
S9902S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

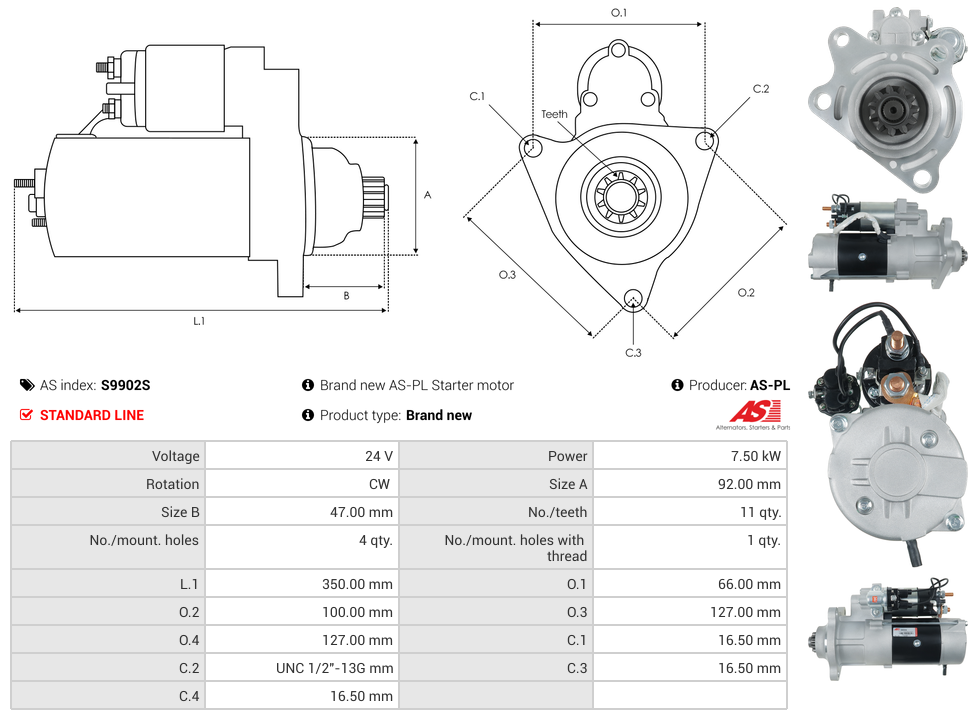

Specifications
| Kilowatt | 7.50 kW |
| Length (L.1) | 350 mm |
| Mount Hole Center - Center (O.1) | 66 mm |
| Mount Hole Center - Center (O.2) | 100 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Center - Center (O.4) | 127 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | UNC 1/2"-13G mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| Mount Hole Diameter (C.4) | 16.50 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | PRESTOLITE |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SHANGCHAI | D6114 |
Reference Information
| 241.508.113.380 | PSH |
| 5483546 | CATERPILLAR |
| M105722 | PRESTOLITE |
| M105R3022SE | PRESTOLITE |
| PREM105R3022SE | WOODAUTO |
| STP3022 | KRAUF |
| UD103002S | AS-PL |
View your shopping basket or Browse other items in Starter Motors.
