Price:
NZ$ 525.76 including GST
NZ$ 457.18 excluding GST
or four payments of $131.44
with
Learn More
each

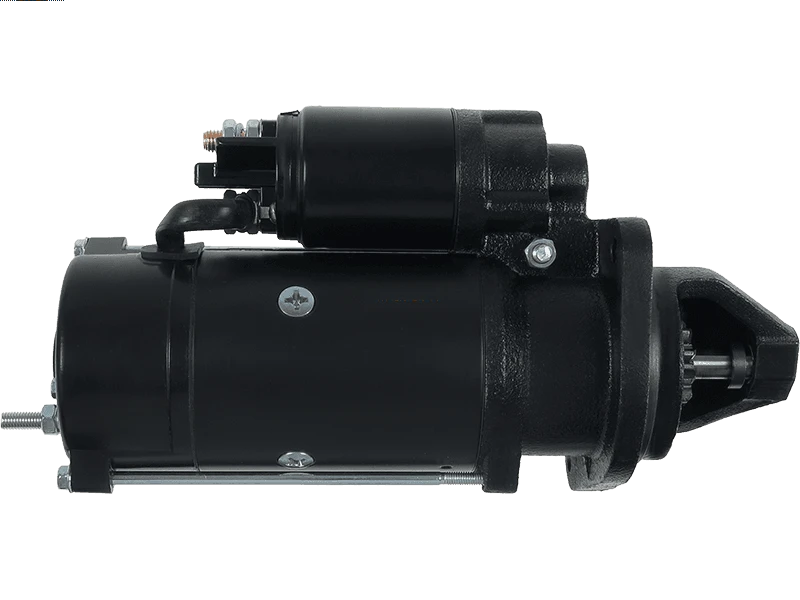

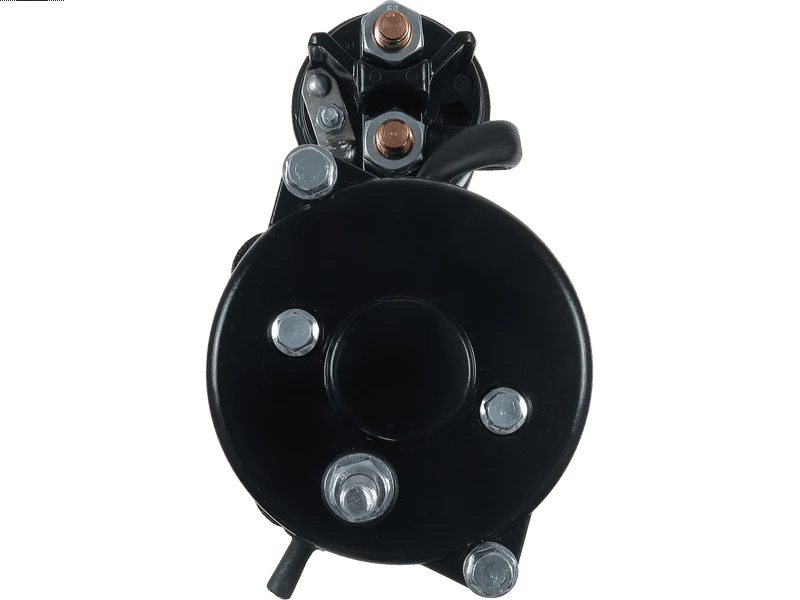

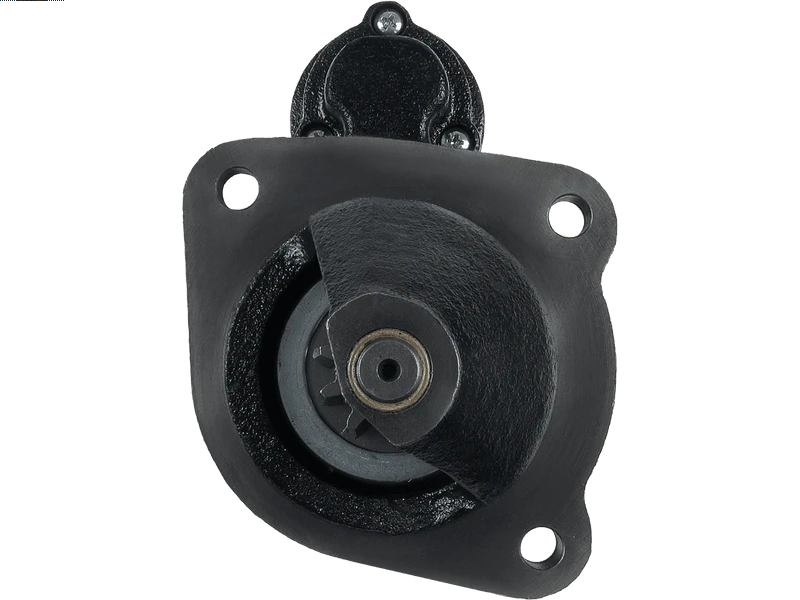

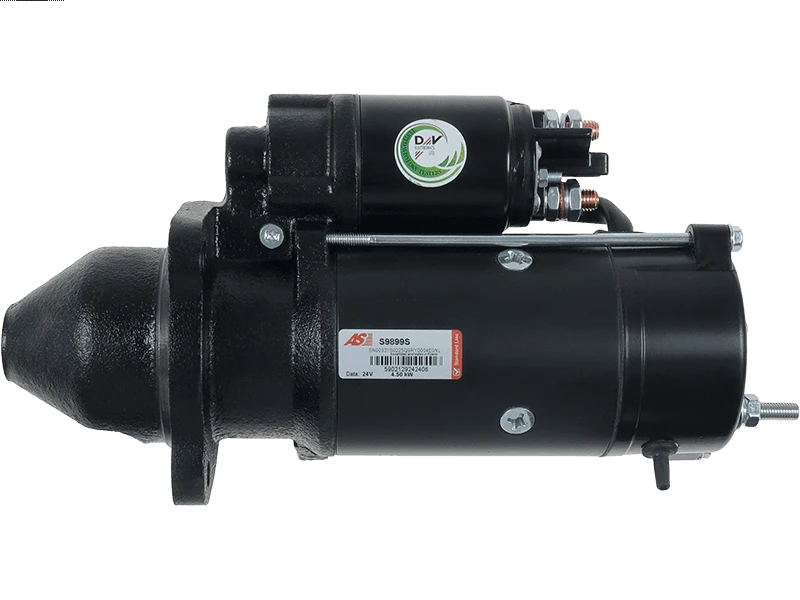

S9899S
No stock in NZ currently
No stock in NZ currently
Specifications
| Kilowatt | 4.50 kW |
| Length (L.1) | 48 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 30 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 312GC | ||
| CATERPILLAR | 312GX | ||
| CATERPILLAR | 313 | ||
| CATERPILLAR | 313GC | ||
| CATERPILLAR | 313GX | ||
| CATERPILLAR | 315 | ||
| CATERPILLAR | 315GC | ||
| CATERPILLAR | 315GX | ||
| CATERPILLAR | 316GC | ||
| CATERPILLAR | 316GX | ||
| CATERPILLAR | 317GC | ||
| CATERPILLAR | CW34 | ||
| CATERPILLAR | M313-07 | ||
| CATERPILLAR | M314 | ||
| CATERPILLAR | M315 | ||
| HYUNDAI | HX140L | ||
| HYUNDAI | HX145LCR | ||
| HYUNDAI | HX160L | ||
| HYUNDAI | HX180L | ||
| HYUNDAI | R125LCR-9A | ||
| HYUNDAI | R140LC-9A | ||
| HYUNDAI | R145CR-9A | ||
| HYUNDAI | R160LC-9A | ||
| HYUNDAI | R180LC-9A | ||
| PERKINS | 1204 | ||
| PERKINS | 1204E | ||
| PERKINS | 1204E-E44TA 4.4 | ||
| PERKINS | 1204E-E44TTA 4.4 |
Reference Information
| 11.131.894 | ISKRA / LETRIKA |
| 11.132.370 | ISKRA / LETRIKA |
| 182-30508 | ROBERT'S |
| 20419126BN | REAL |
| 20419126OE | REAL |
| 256007M | KUHNER |
| 31485N | WAI / TRANSPO |
| 3472163 | PERKINS |
| 6021621.0 | SANDO |
| 6021621.1 | SANDO |
| 72411838 | MAHLE |
| AZF4243 | ISKRA / LETRIKA |
| AZF4374 | ISKRA / LETRIKA |
| CST21621AS | CASCO |
| CST21621GS | CASCO |
| IS1292 | ISKRA / LETRIKA |
| MAHMS717 | WOODAUTO |
| MS717 | MAHLE |
| RNLMS717 | RNL |
| S104417 | BTS TURBO |
| STI2787 | KRAUF |
| STR60742 | WOODAUTO |
| STR79284 | ELECTROLOG |
| T406500 | PERKINS |
| UD21624S | AS-PL |
| WOOSTR60742 | WOODAUTO |
| ZUAC00428 | PERKINS |
