Price:
NZ$ 569.08 including GST
NZ$ 494.85 excluding GST
or four payments of $142.27
with
Learn More
each
S9892S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

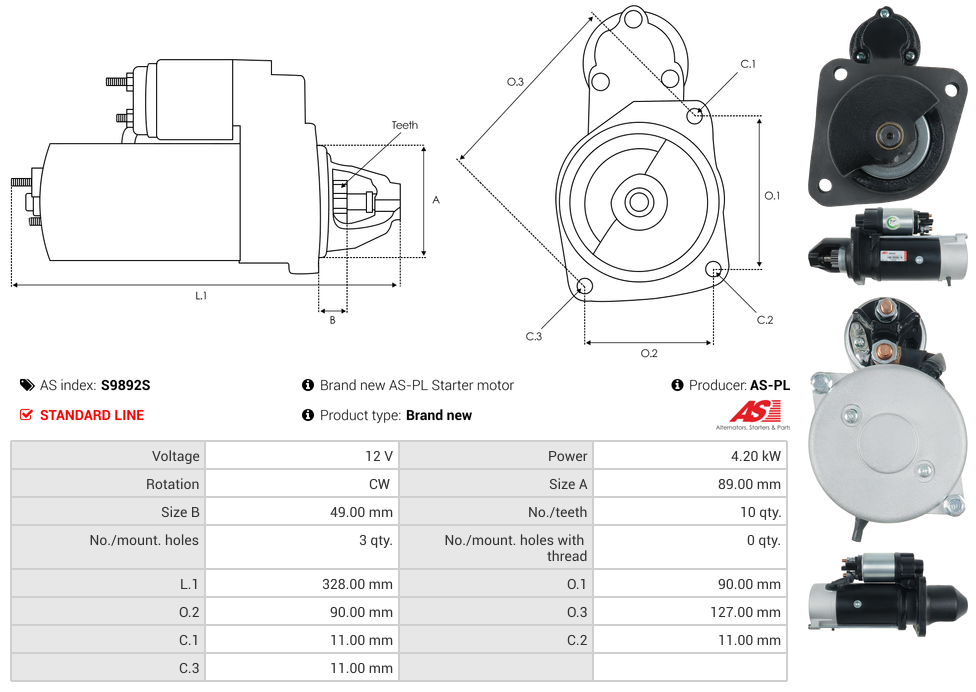

Specifications
| Kilowatt | 4.20 kW |
| Length (L.1) | 328 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 600 | ||
| CASE | CS 6090 | ||
| CASE | CS 660 8.3 | [TAA] | 05.2004- |
| JOHN DEERE | 6700 S | 01.1997- | |
| NEW HOLLAND | CS 660 | ||
| NEW HOLLAND | TC 5090 8.3 | [TAA234HP] | 09.2007- |
Reference Information
| 11.131.370 | ISKRA / LETRIKA |
| 20419252BN | REAL |
| 33413N | WAI / TRANSPO |
| 540.522.103.311 | PSH |
| 6021252.0 | SANDO |
| 72735874 | MAHLE |
| 84994459 | CASE |
| AZF4595 | ISKRA / LETRIKA |
| CST21252AS | CASCO |
| IS1120 | ISKRA / LETRIKA |
| MAHMS246 | WOODAUTO |
| MS246 | MAHLE |
| S144.487 | PSH |
| STI7120 | KRAUF |
| STR79163 | ELECTROLOG |
| UD102997S | AS-PL |
| WG2045005 | WILMINK GROUP |
