Price:
NZ$ 545.86 including GST
NZ$ 474.66 excluding GST
or four payments of $136.47
with
Learn More
each

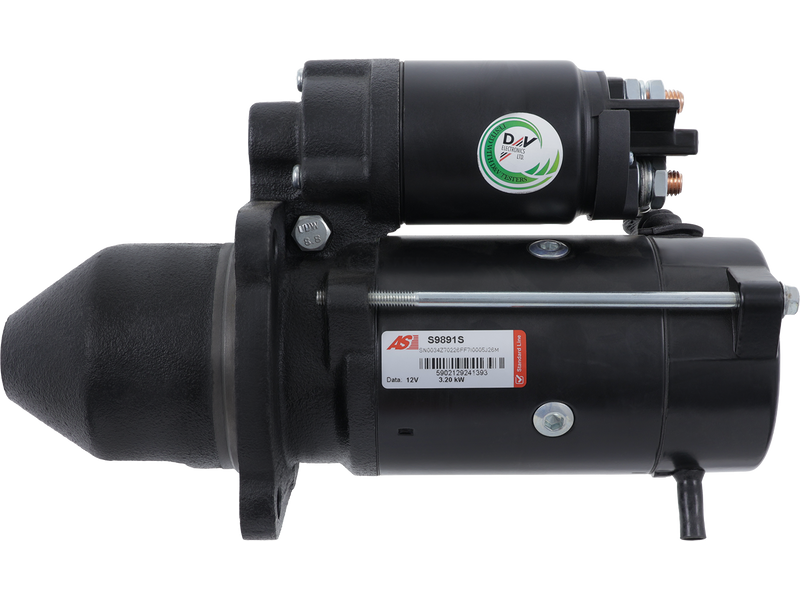

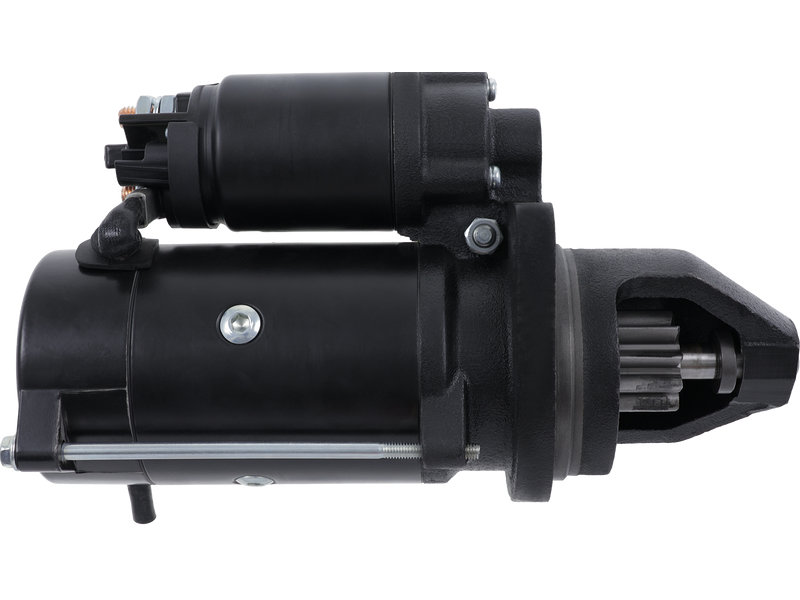

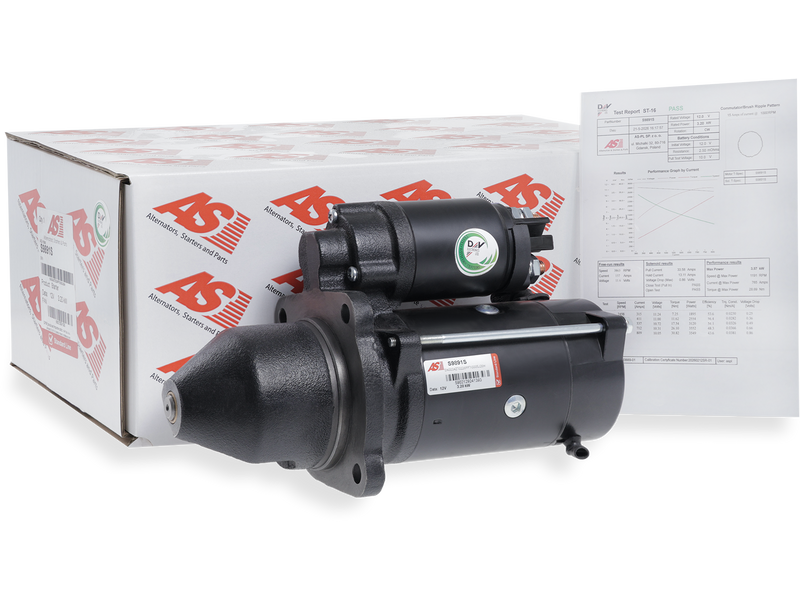

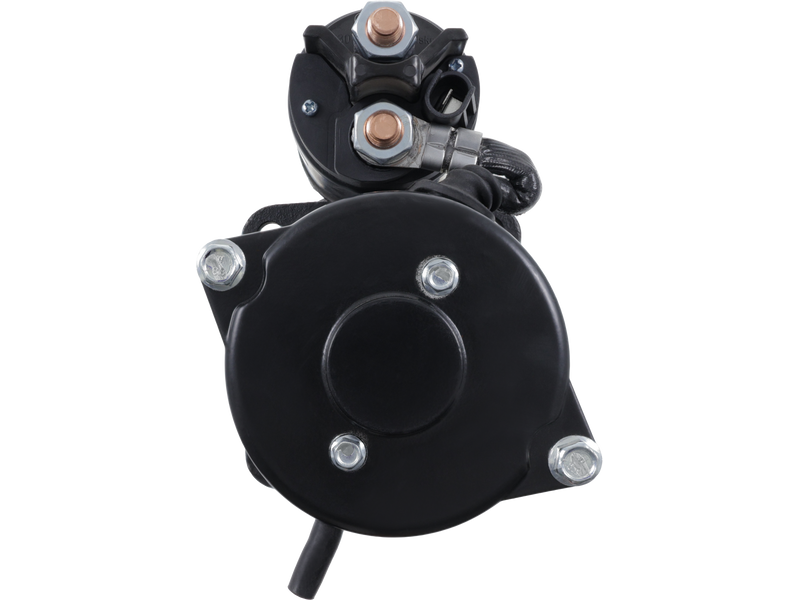

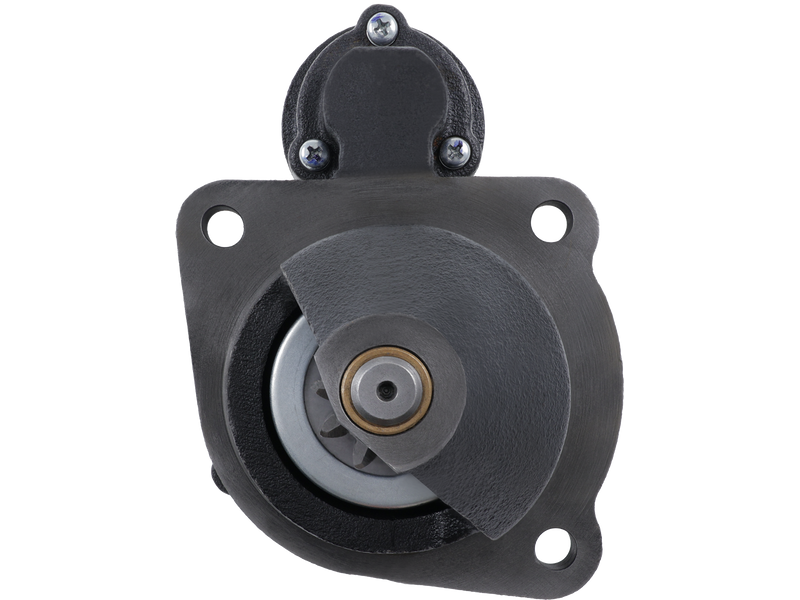

S9891S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 287 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | MF 3600 3.3 | [33CTA102HP] | 05.2011- |
| MASSEY FERGUSON | MF 3600 3.3 | [33CTA82HP] | 05.2011- |
| MASSEY FERGUSON | MF 3600 3.3 | [33CTA92HP] | |
| MASSEY FERGUSON | MF 3600 3.3 | [33CTA94HP] | 05.2011- |
| MASSEY FERGUSON | MF 3600 3.3 | [33DTA] | |
| MASSEY FERGUSON | MF 3600 3.3 | [33DTA69HP] | 05.2011- |
| MASSEY FERGUSON | MF 3600 3.3 | [33DTA80HP] | 05.2011- |
| MASSEY FERGUSON | MF 3600 F 3.3 | [33CTA102HP] | 05.2011- |
| MASSEY FERGUSON | MF 3600 GE 3.3 | [33CTA102HP] | 05.2011- |
| MASSEY FERGUSON | MF 3600 S 3.3 | [33CTA102HP] | 05.2011- |
| MASSEY FERGUSON | MF 3625 GE 3.3 | [33DTA69HP] | 05.2011- |
| MASSEY FERGUSON | MF 3625 S 3.3 | [33DTA69HP] | 05.2011- |
| MASSEY FERGUSON | MF 3625 V 3.3 | [33DTA69HP] | 05.2011- |
| MASSEY FERGUSON | MF 3635 F 3.3 | [33DTA80HP] | 05.2011- |
| MASSEY FERGUSON | MF 3635 GE 3.3 | [33DTA80HP] | 05.2011- |
| MASSEY FERGUSON | MF 3635 S 3.3 | [33DTA80HP] | 05.2011- |
| MASSEY FERGUSON | MF 3635 V 3.3 | [33DTA80HP] | 05.2011- |
| MASSEY FERGUSON | MF 3640 F 3.3 | [33CTA82HP] | 05.2011- |
| MASSEY FERGUSON | MF 3640 GE 3.3 | [33CTA82HP] | 05.2011- |
| MASSEY FERGUSON | MF 3640 S 3.3 | [33CTA82HP] | 05.2011- |
| MASSEY FERGUSON | MF 3640 V 3.3 | [33CTA82HP] | 05.2011- |
| MASSEY FERGUSON | MF 3645 3.3 | [33DTA] | |
| MASSEY FERGUSON | MF 3650 3.3 | [33CTA92HP] | |
| MASSEY FERGUSON | MF 3650 A 3.3 | [33CTA94HP] | 05.2011- |
| MASSEY FERGUSON | MF 3650 F 3.3 | [33CTA94HP] | 05.2011- |
| MASSEY FERGUSON | MF 3650 GE 3.3 | [33CTA94HP] | 05.2011- |
| MASSEY FERGUSON | MF 3650 S 3.3 | [33CTA94HP] | 05.2011- |
Reference Information
| 011-001-000902R | REMANTE |
| 10021181AV | ITAB AUTOMOTIVE |
| 10021181OV | ITAB AUTOMOTIVE |
| 107996 | FARCOM |
| 11.131.515 | ISKRA / LETRIKA |
| 11.131.773 | ISKRA / LETRIKA |
| 20419181BN | REAL |
| 20419181OE | REAL |
| 205806 | CARRARO |
| 255407 | KUHNER |
| 255407M | KUHNER |
| 6021181.0 | SANDO |
| 6021181.1 | SANDO |
| 72736025 | MAHLE |
| 750.504.103.090 | PSH |
| 750.504.103.311 | PSH |
| AZE4122 | ISKRA / LETRIKA |
| AZE4171 | ISKRA / LETRIKA |
| CST21181AS | CASCO |
| CST21181GS | CASCO |
| IS1153 | ISKRA / LETRIKA |
| LES0657 | LE PART |
| MAHMS397 | WOODAUTO |
| MS397 | MAHLE |
| S103303 | BTS TURBO |
| S104280 | BTS TURBO |
| S135.421 | PSH |
| S144.642 | PSH |
| SIS181 | AUTOTEAM |
| STX210089 | STARDAX |
| UD103011S | AS-PL |
| WG2045164 | WILMINK GROUP |
