Price:
NZ$ 213.98 including GST
NZ$ 186.07 excluding GST
or four payments of $53.50
with
Learn More
each
S9890S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

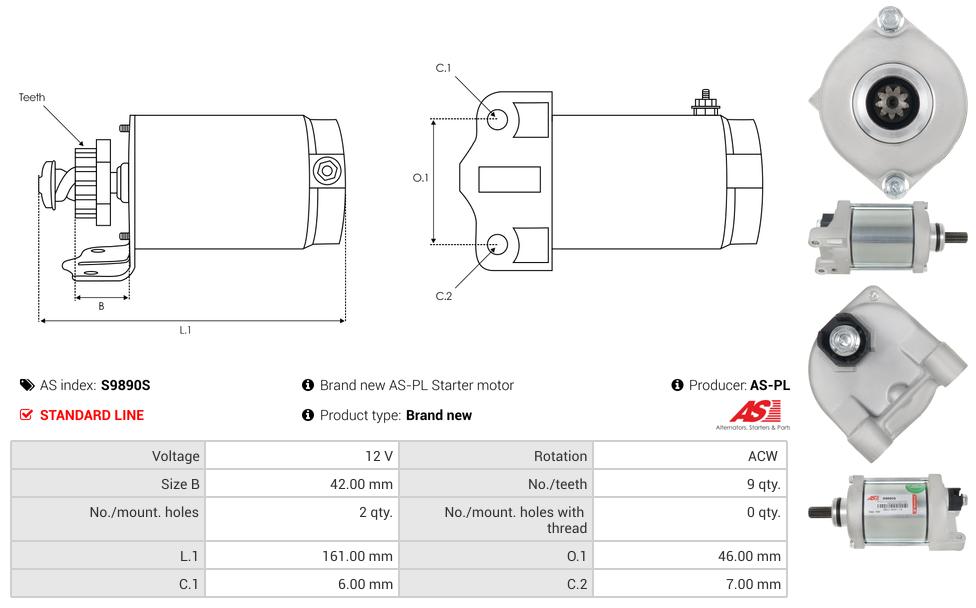

Specifications
| Length (L.1) | 161 mm |
| Mount Hole Center - Center (O.1) | 46 mm |
| Mount Hole Diameter (C.1) | 6 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 42 mm |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | CB 500 F | [471cc] | 01.2013- |
| HONDA | CB 500 X | [471cc] | 01.2013- |
| HONDA | CBR 1000 S2 M/C | [999cc] | 01.2017- |
| HONDA | CBR 500 R | [471cc] | 01.2013- |
Reference Information
| 109565 | FARCOM |
| 256754 | KUHNER |
| 30823N | WAI / TRANSPO |
| 31200-MFL-003 | HONDA |
| 31200-MGZ-J01 | HONDA |
| 31200-MGZ-J81 | HONDA |
| SMU0476 | ARROWHEAD |
| STU2991 | KRAUF |
| UD102686S | AS-PL |
