Price:
NZ$ 396.43 including GST
NZ$ 344.72 excluding GST
or four payments of $99.11
with
Learn More
each
S9884S
No stock in NZ currently
No stock in NZ currently

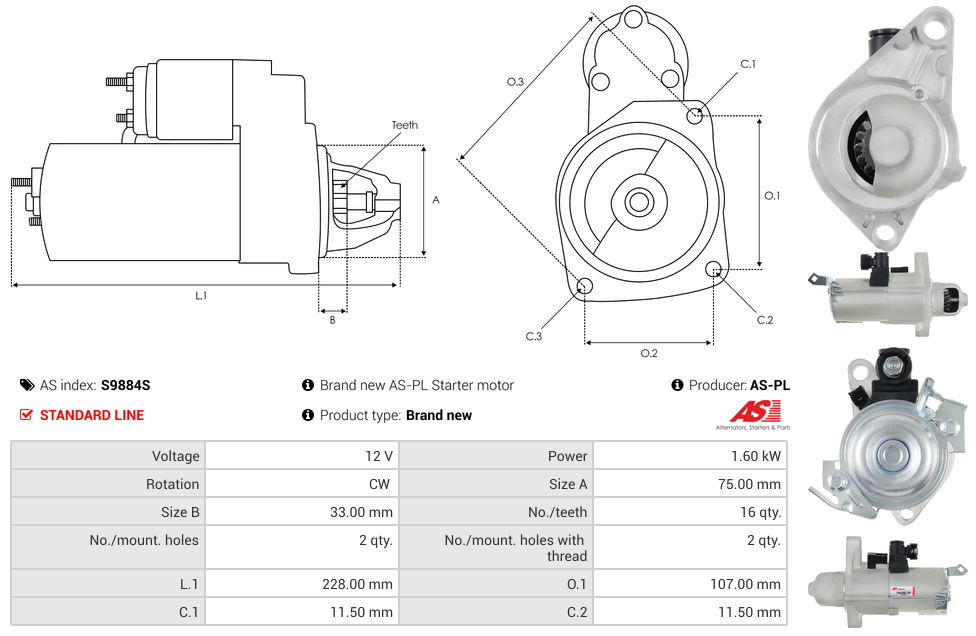

Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 228 mm |
| Mount Hole Center - Center (O.1) | 107 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 16 qty |
| Pinion at Rest (B) | 33 mm |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Odyssey 2.4 | 01.2015-12.2019 |
Reference Information
| 31200-5X6-J02 | HONDA |
| 31200-5X6-J03 | HONDA |
| SM750-04 | MITSUBA |
| SM750-05 | MITSUBA |
| UD102270S | AS-PL |
