Price:
NZ$ 159.85 including GST
NZ$ 139.00 excluding GST
or four payments of $39.96
with
Learn More
each
S9881S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

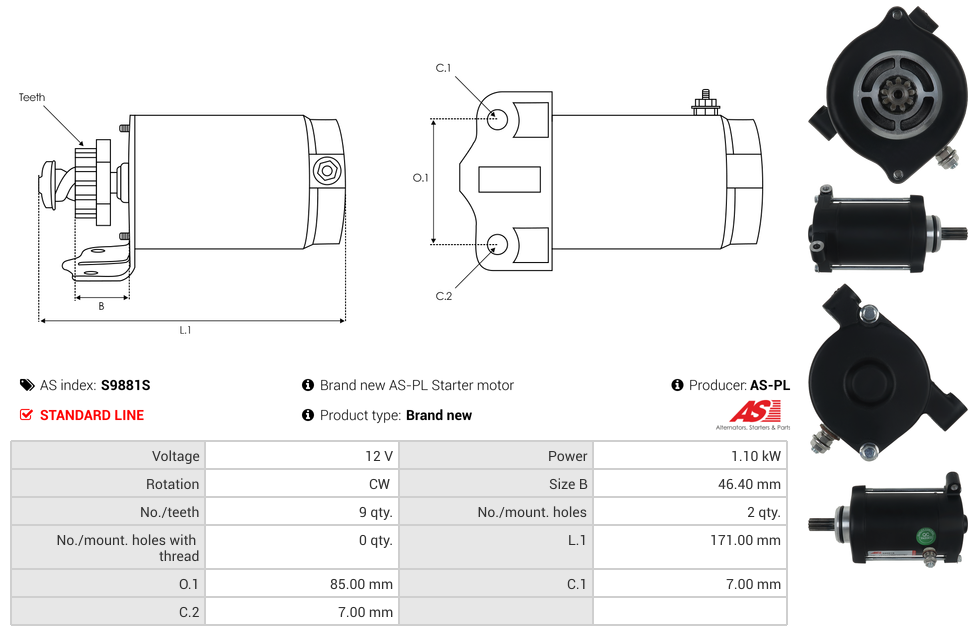

Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 171 mm |
| Mount Hole Center - Center (O.1) | 85 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 46.40 mm |
| Rotation | CW |
| Unit Type | CFMOTO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CFMOTO | Rancher 600 (CF600) | [600cc] | 01.2011-12.2013 |
| CFMOTO | X6 Terralander 625 | [594cc] | 01.2011-12.2013 |
| CFMOTO | Z6-EX Terracross 625 EX | [594cc] | 01.2012-12.2013 |
| CFMOTO | Z6 Terracross 600 | [594cc] | 01.2012-12.2013 |
Reference Information
| 0600-091100 | CFMOTO |
| 19584A | LESTER |
| 19584N-HT | WAI / TRANSPO |
| 196S-091100 | CFMOTO |
| 256687 | KUHNER |
| 410-58066 | J&N |
| 71-37-19584A | WILSON |
| 96S0-91100 | CFMOTO |
| SCH0080 | ARROWHEAD |
| UD102689S | AS-PL |
