Price:
NZ$ 65.57 including GST
NZ$ 57.02 excluding GST
or four payments of $16.39
with
Learn More
each
S9874S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

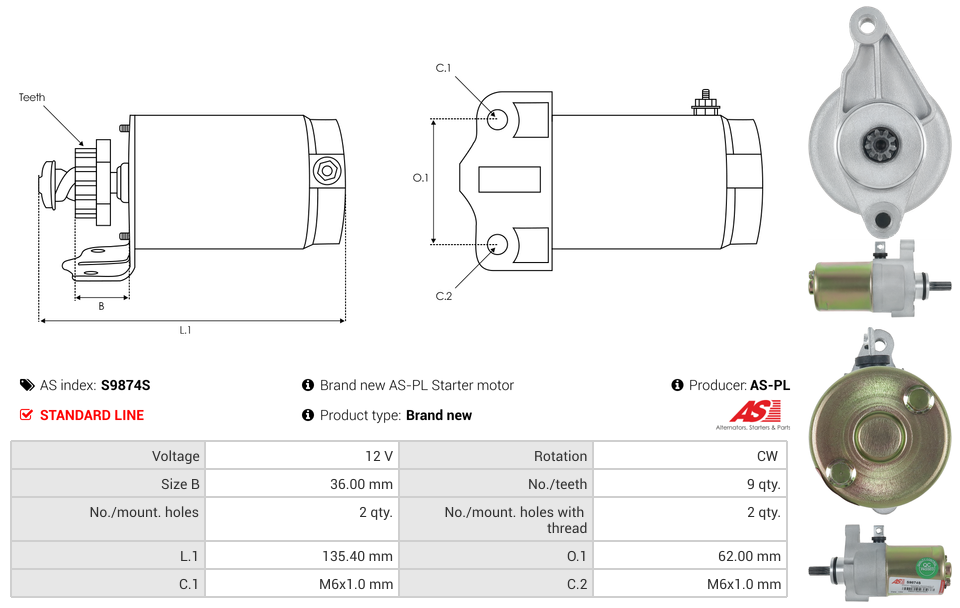

Specifications
| Length (L.1) | 135.40 mm |
| Mount Hole Center - Center (O.1) | 62 mm |
| Mount Hole Diameter (C.1) | M6x1.0 mm |
| Mount Hole Diameter (C.2) | M6x1.0 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 36 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | TTR50E M/C | 01.2006-12.2020 |
Reference Information
| 16070 | LESTER |
| 16070N | WAI / TRANSPO |
| 1P6-H1890-00-00 | YAMAHA |
| 1P6-H1890-01-00 | YAMAHA |
| 49P-H1800-00 | YAMAHA |
| 5DW-H1800-00 | YAMAHA |
| 5DW-H1800-00-00 | YAMAHA |
| UD102668S | AS-PL |
