Price:
NZ$ 67.34 including GST
NZ$ 58.56 excluding GST
or four payments of $16.84
with
Learn More
each
S9873S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

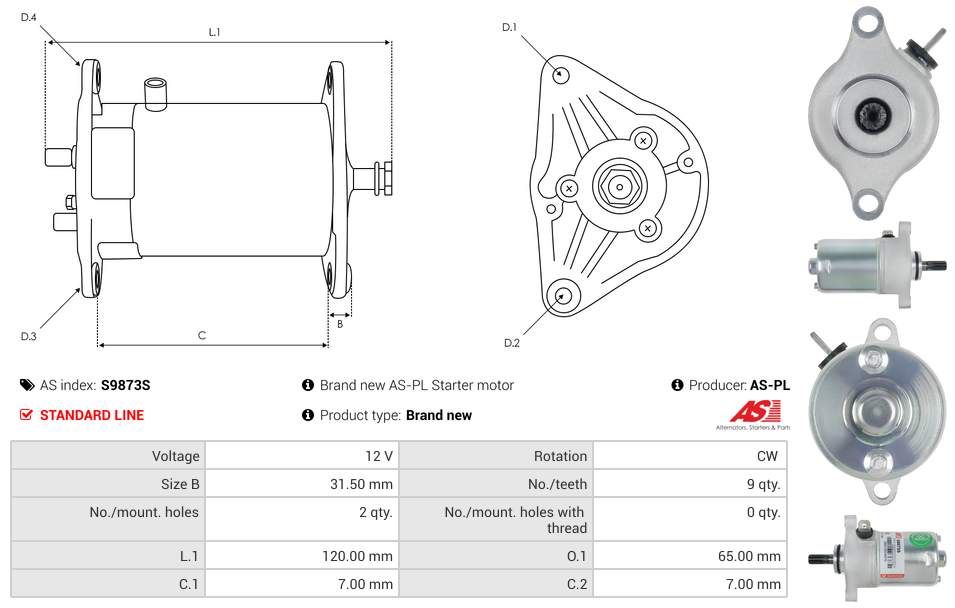

Specifications
| Length (L.1) | 120 mm |
| Mount Hole Center - Center (O.1) | 65 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 31.50 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | Various Models |
Reference Information
| 1B9-H1800-00-00 | YAMAHA |
| 1B9-H1800-01-00 | YAMAHA |
| 255773 | KUHNER |
| 30935 | LESTER |
| 30935N | WAI / TRANSPO |
