Price:
NZ$ 591.34 including GST
NZ$ 514.21 excluding GST
or four payments of $147.84
with
Learn More
each
S9872S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

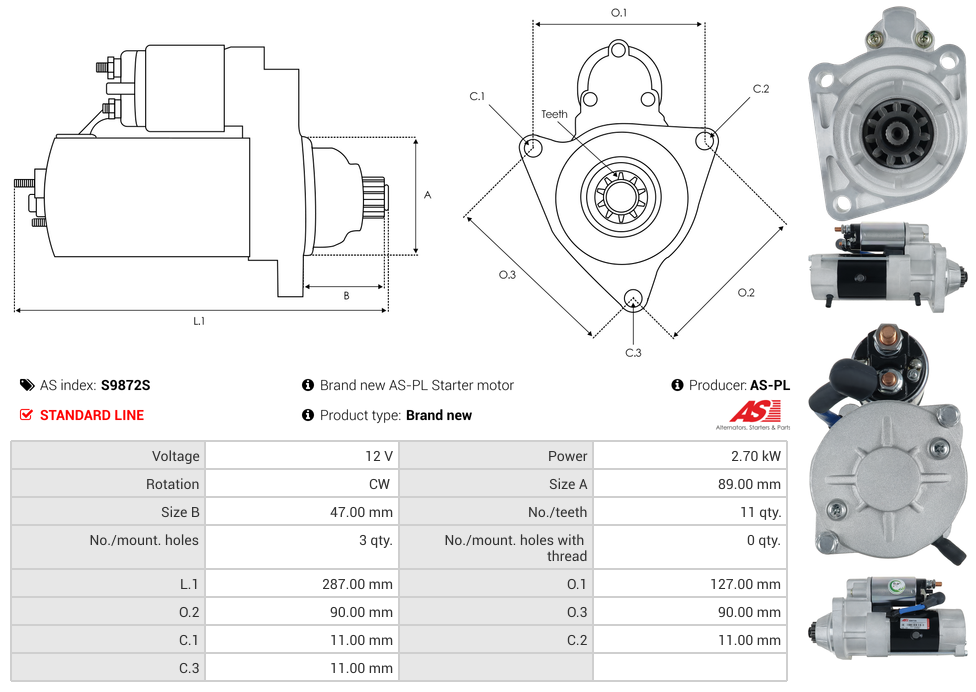

Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 287 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DOOSAN |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DOOSAN | DX60 | ||
| DOOSAN | DX60-9 | ||
| DOOSAN | DX60-9C |
Reference Information
| 10032163OV | ITAB AUTOMOTIVE |
| 20493361OE | REAL |
| 256461D | KUHNER |
| 300516-00034 | DOOSAN |
| 300516-00034A | DOOSAN |
| 300516-00120 | DOOSAN |
| 6032163.1 | SANDO |
| CST32163GS | CASCO |
| MAV34163 | SITECH |
| MAV341630 | SIOM |
| MAV341630 | SITECH |
| S0001200952 | HYUNDAI |
| SMA163 | AUTOTEAM |
| UD102767S | AS-PL |
